EURORACK CASES
Each Case is an Individual
Premium Baltic Birch Ply
Sourced from around the Baltic states. The layers of 1.5mm thick solid birch veneer offers exceptional durability, rigidity and stability.
Threaded Nut Strip
True Eurorack standard of threaded nut strips with plenty of M2.5 screws.
Armrest
Everybody loves the ergonomic design of the armrest for added comfort.
Luminous LED Lighting
Friendly warm white LED lighting is neatly fitted with touch dimmer. RGB also available.
Superior Aerospace Rails
Custom made by Vector in the U.S. The finest lead-free aluminum that is heat treated for hardness and clean chem filmed to resist oxidation. Now available in 1U format.
Cleanest and Quietest System
Thanks to our partnership with Genus Modu for Low Impedance Busboards (LIBBs) and Low Noise AC/DC Power Supplies by Daitron

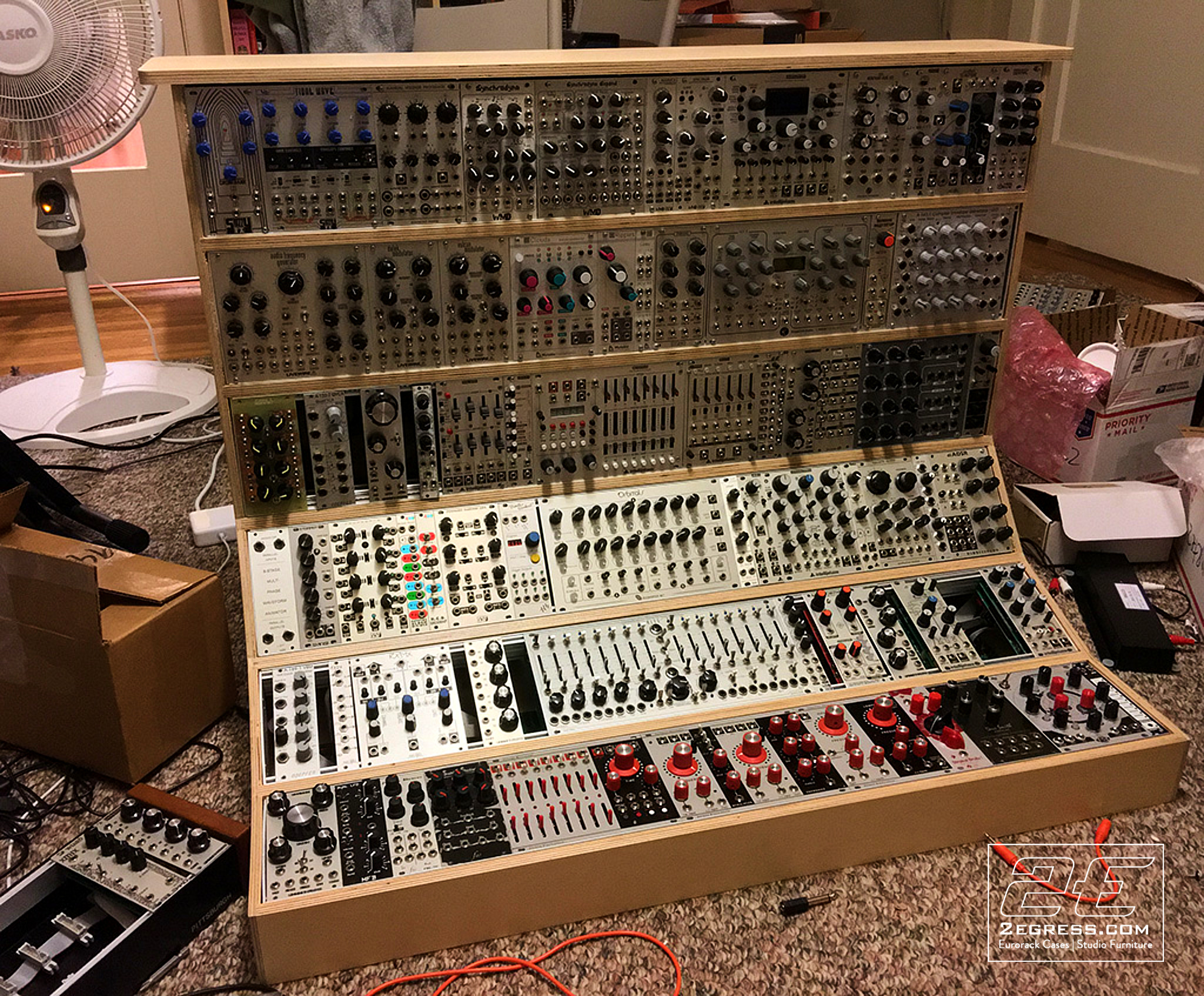

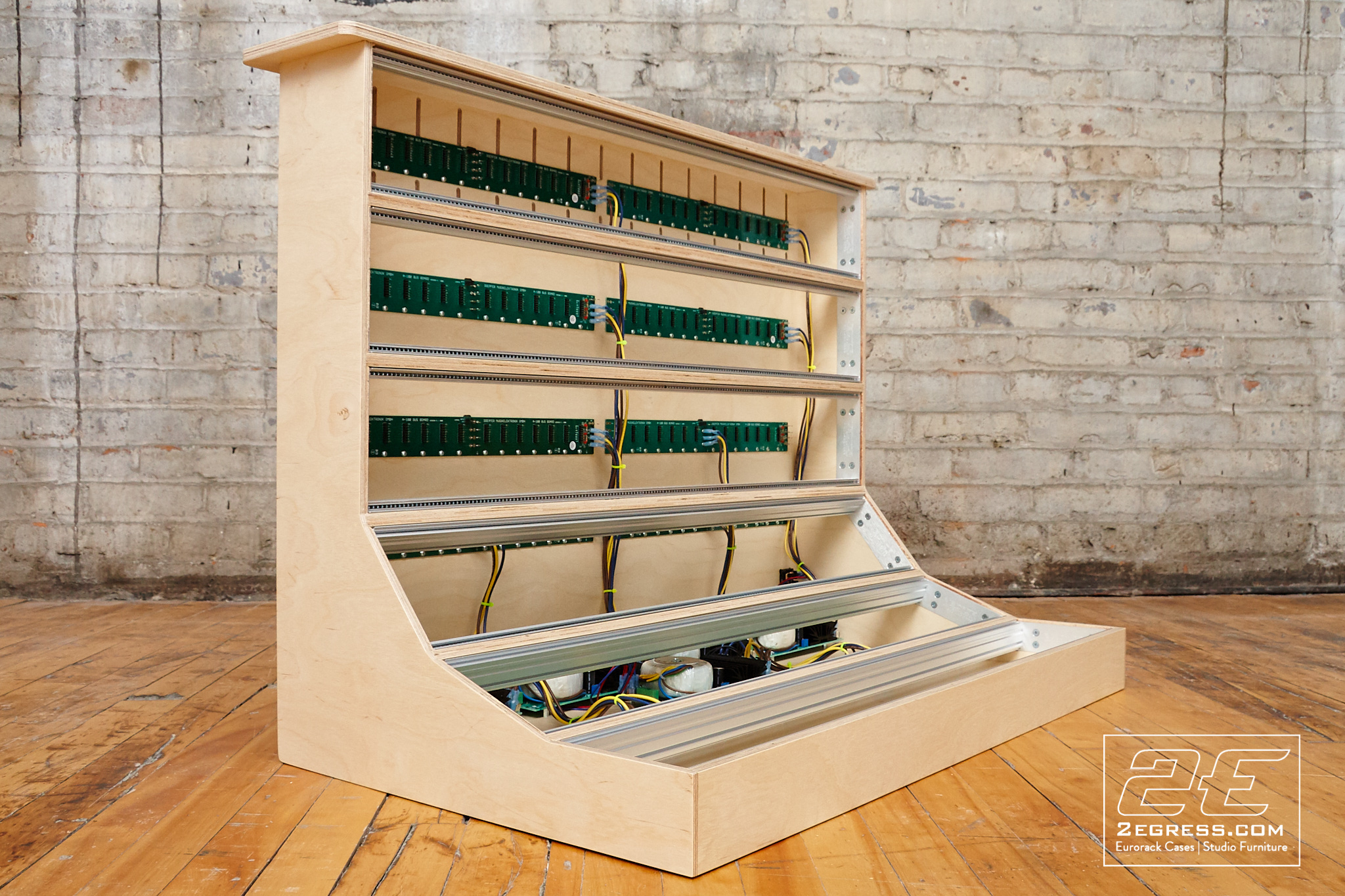

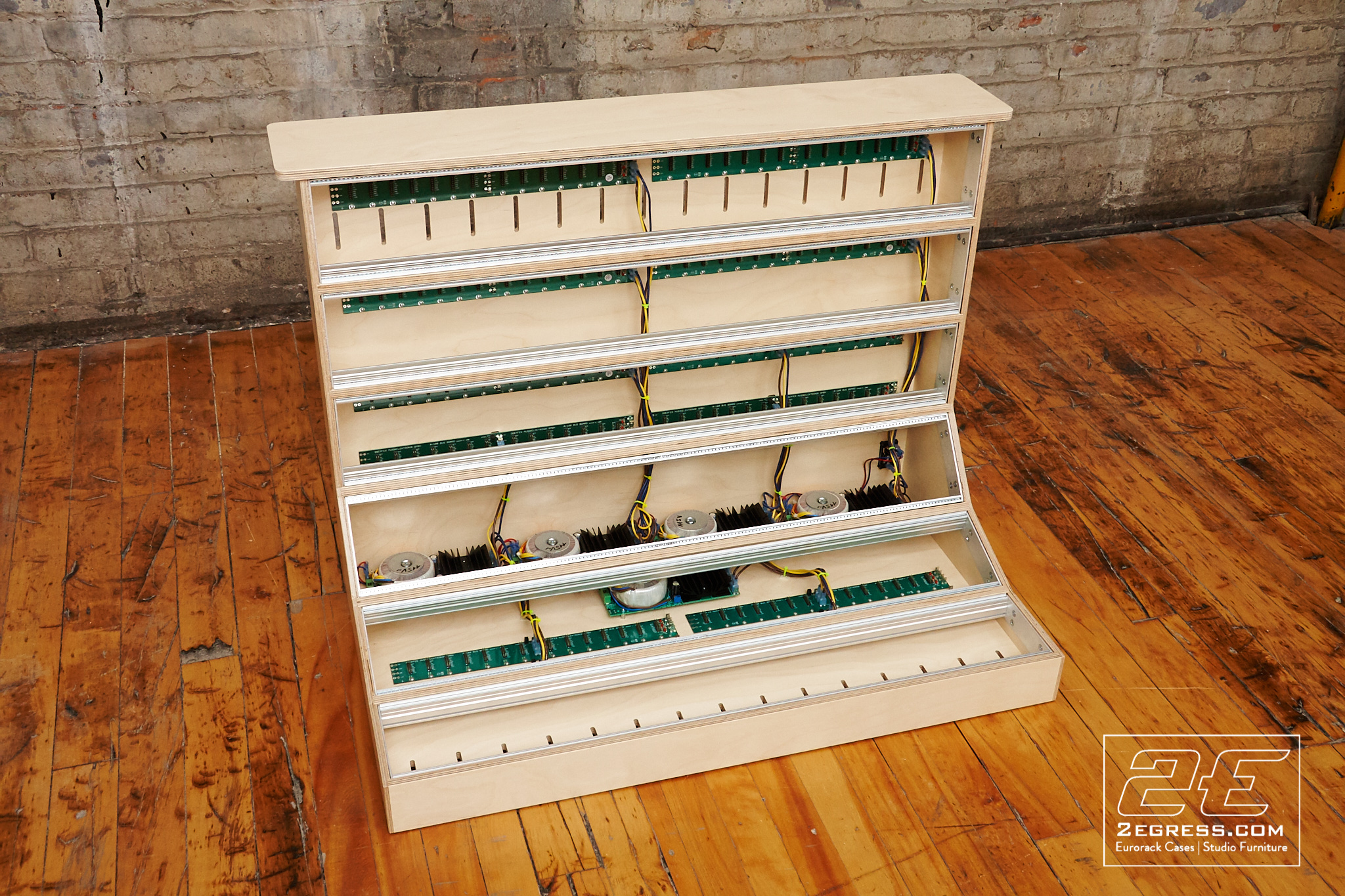

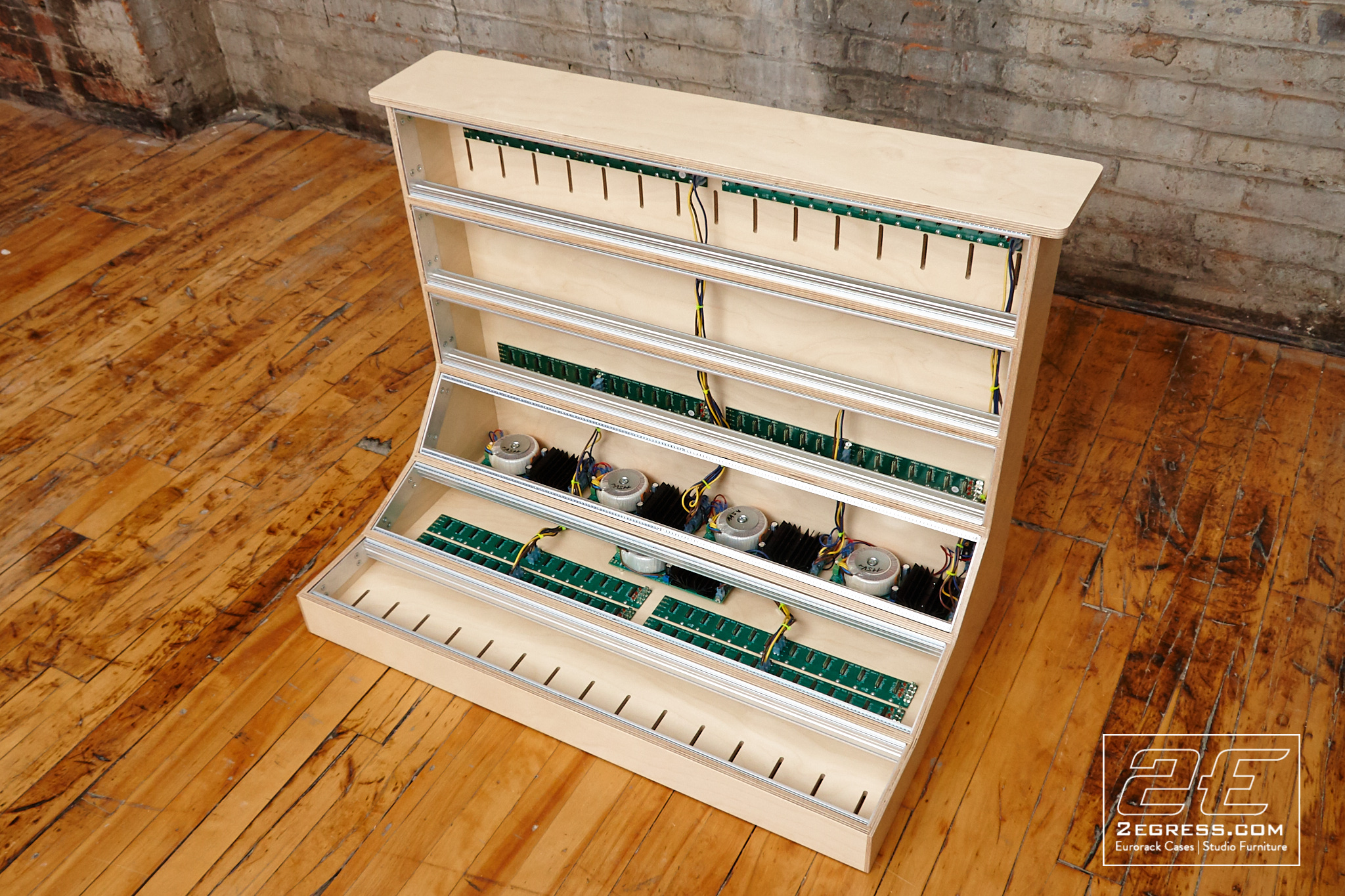

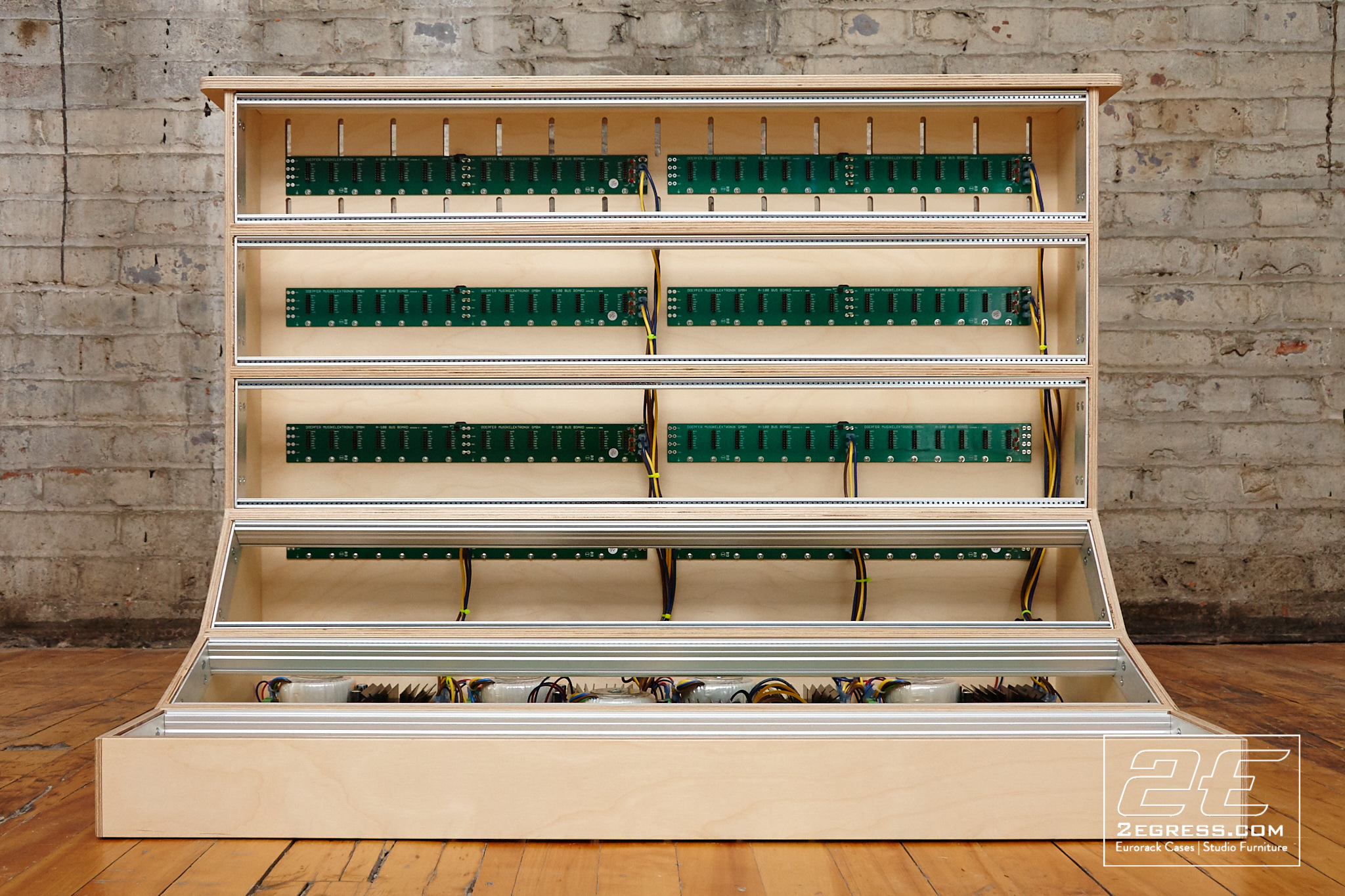

Super-duper 18U Eurorack case!
“I couldn’t be happier with the case. They are talented, passionate, and so importantly communicative throughout the whole process."
Charles Dworetz
Width size (in):
168HP
Double* (71L X 21W X 27H)
*LTL freight only.
Depths top to bottom (mm):
107, 107, 107, 148, 65, 58
Starting from $2350.
Request a custom order and have something made just for you.

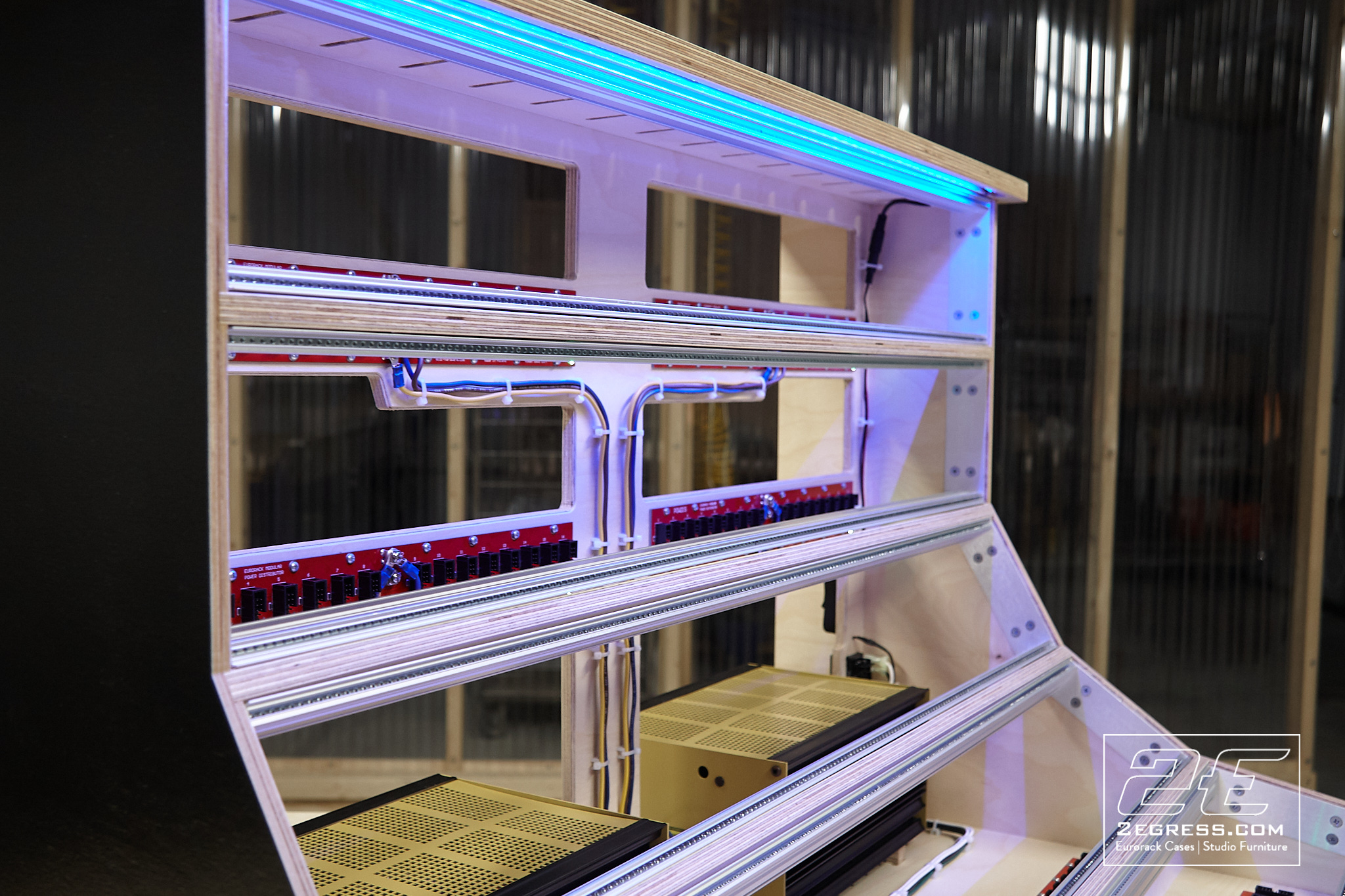

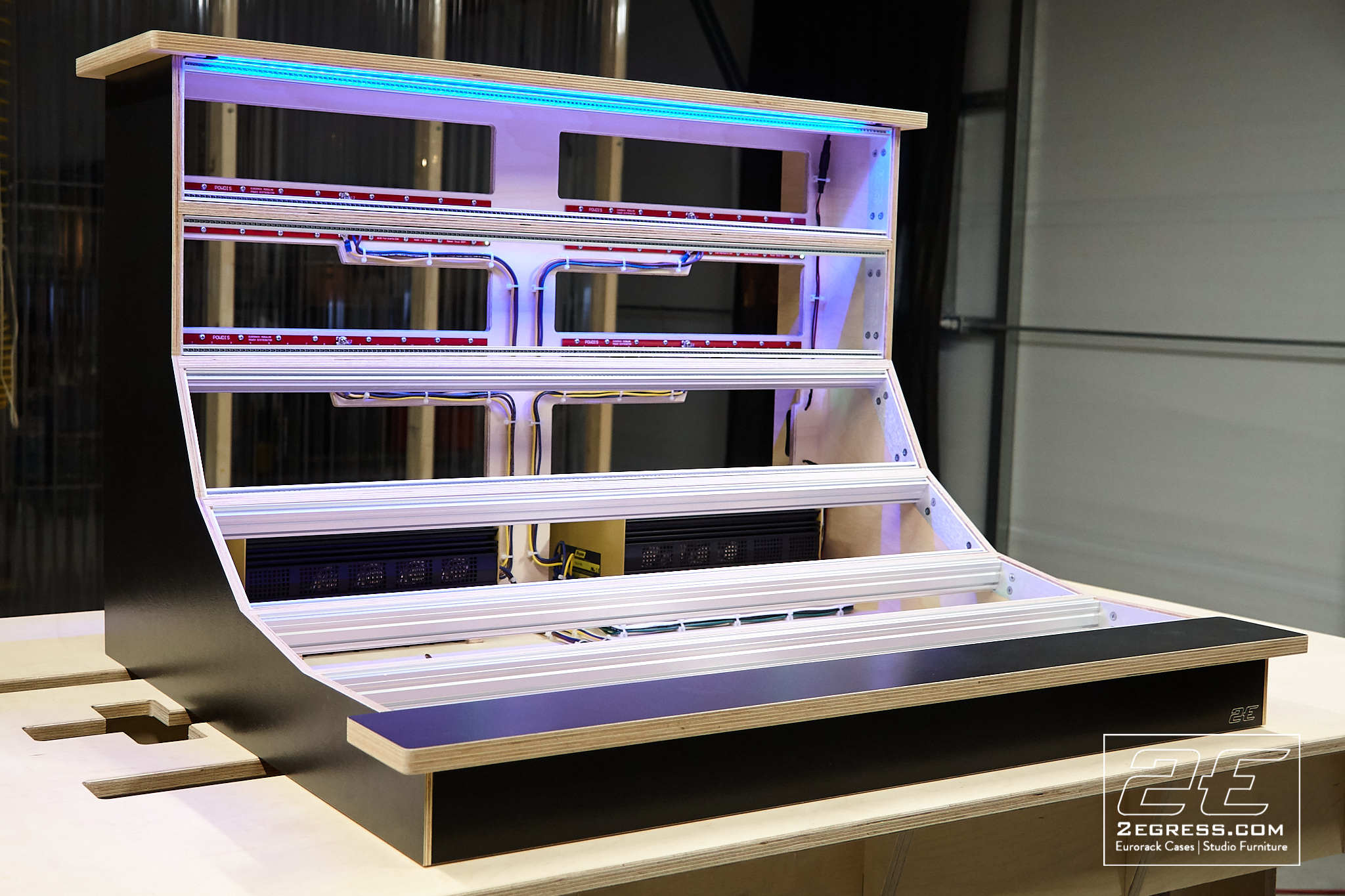

The noble 18U Nebuchadnezzar!
Open back design allows access to the case making plugging of modules easier and the fundamental armrest.
The Nebuchadnezzar eurorack case custom built for Adrian Romero.
Width size (in):
168HP
Single* (36.75L X 32.5W X 24.5H)
Double* (71L X 32.5W X 24.5H)
*LTL freight only.
Depths top to bottom (mm):
120, 120, 142, 119, 72, 72
Request a custom order and have something made just for you.

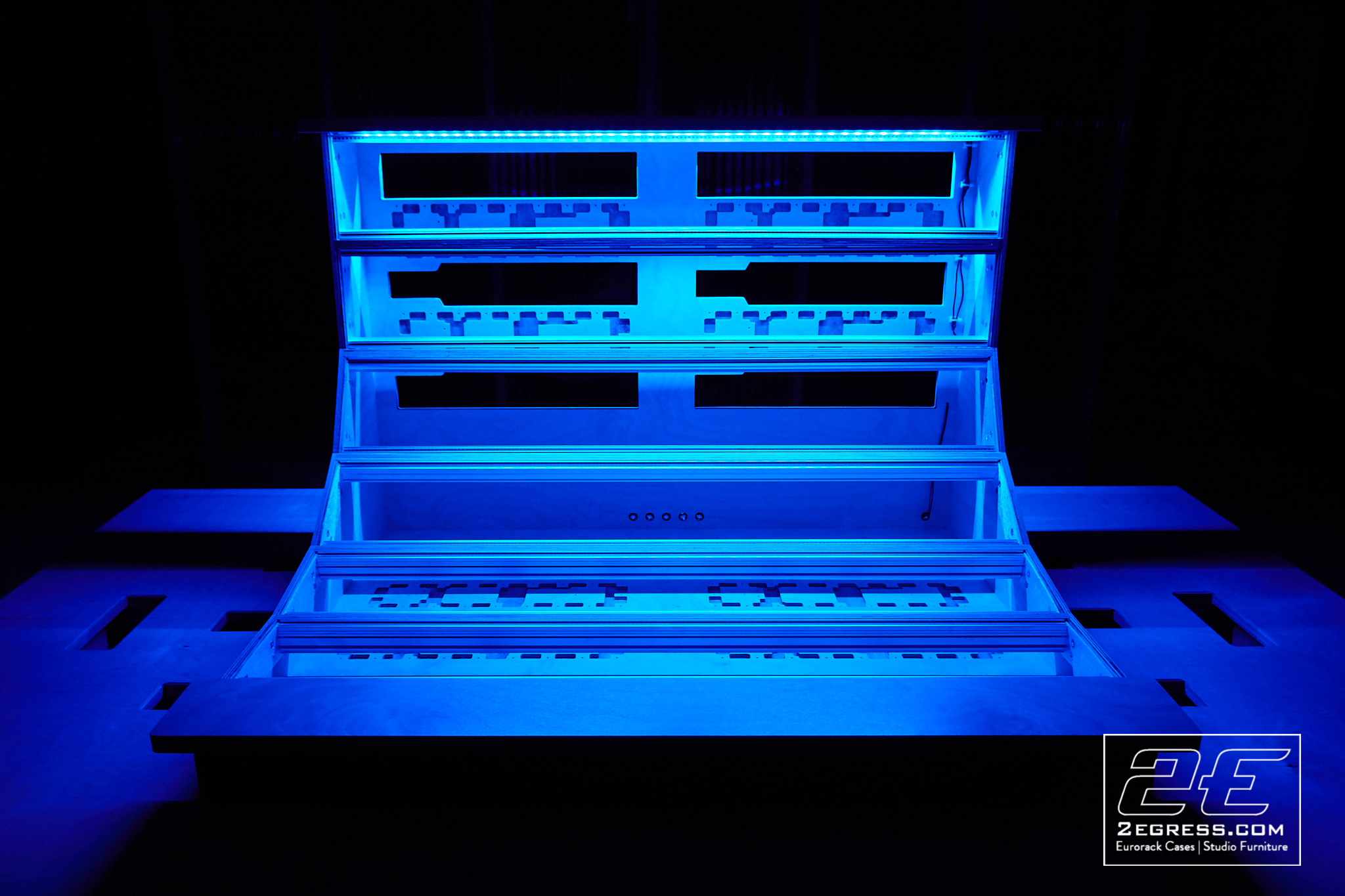

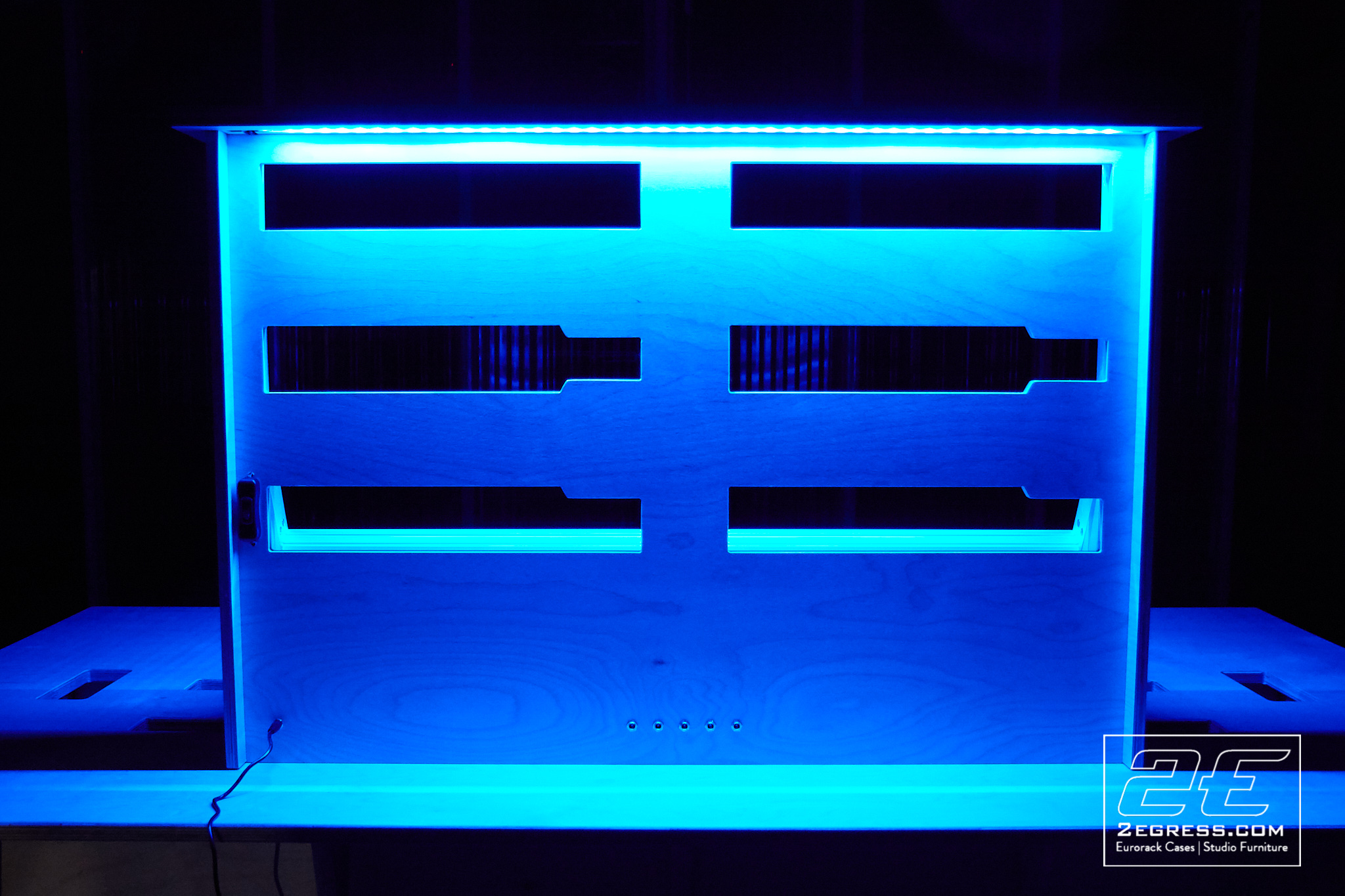

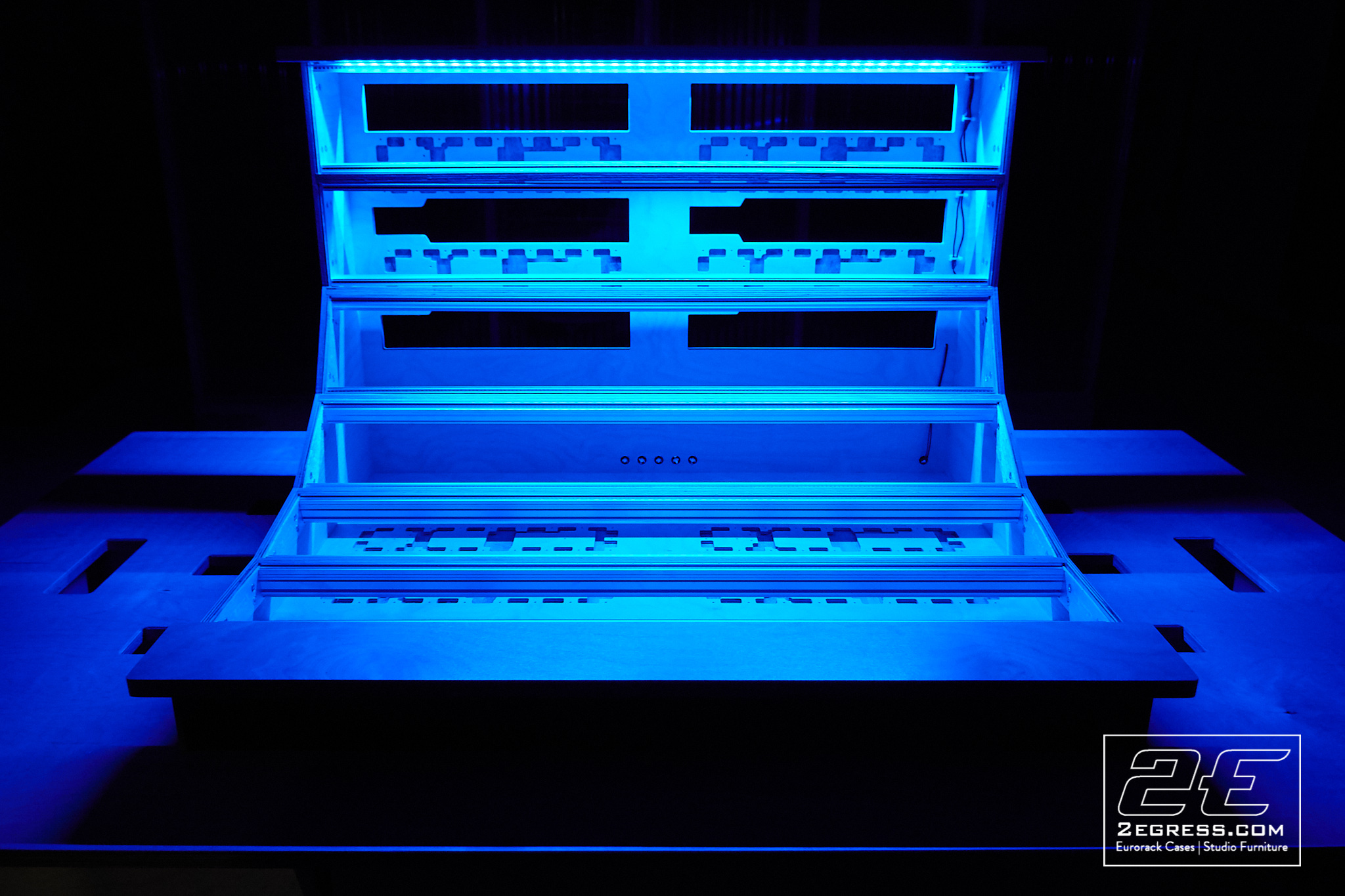

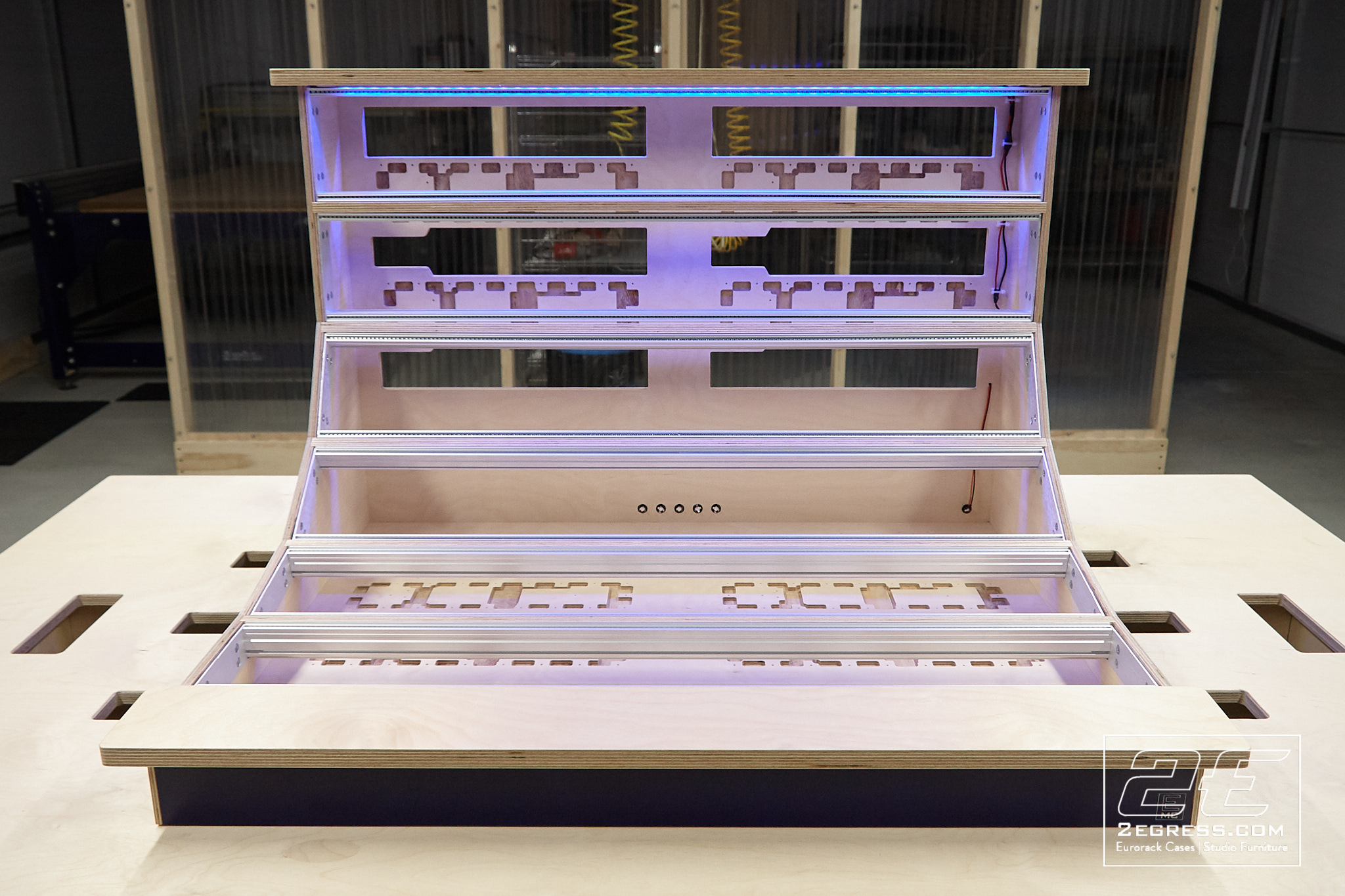

The Stunning 18U The Blue!
The Blue eurorack case for Benn Jordan (aka The Flashbulb).
“Brock makes absolutely brillant cases, a genius woodworker who puts so much love and care into his designs.”
Benn Jordan
Width size (in):
168HP
Double* (71L X 32.5W X 24.5H)
*LTL freight only.
Depths top to bottom (mm):
120, 120, 146, 117, 72, 72
Request a custom order and have something made just for you.

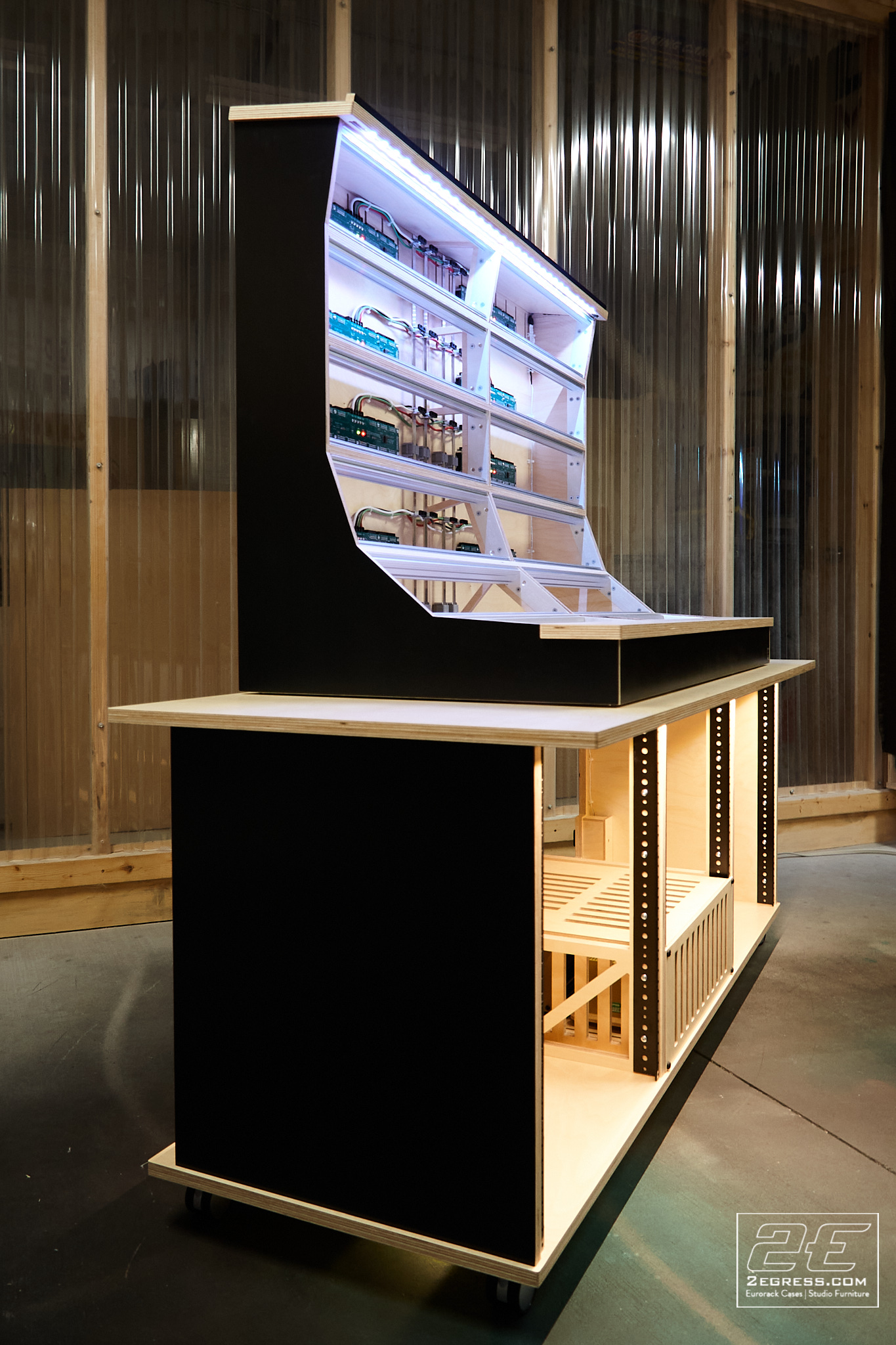

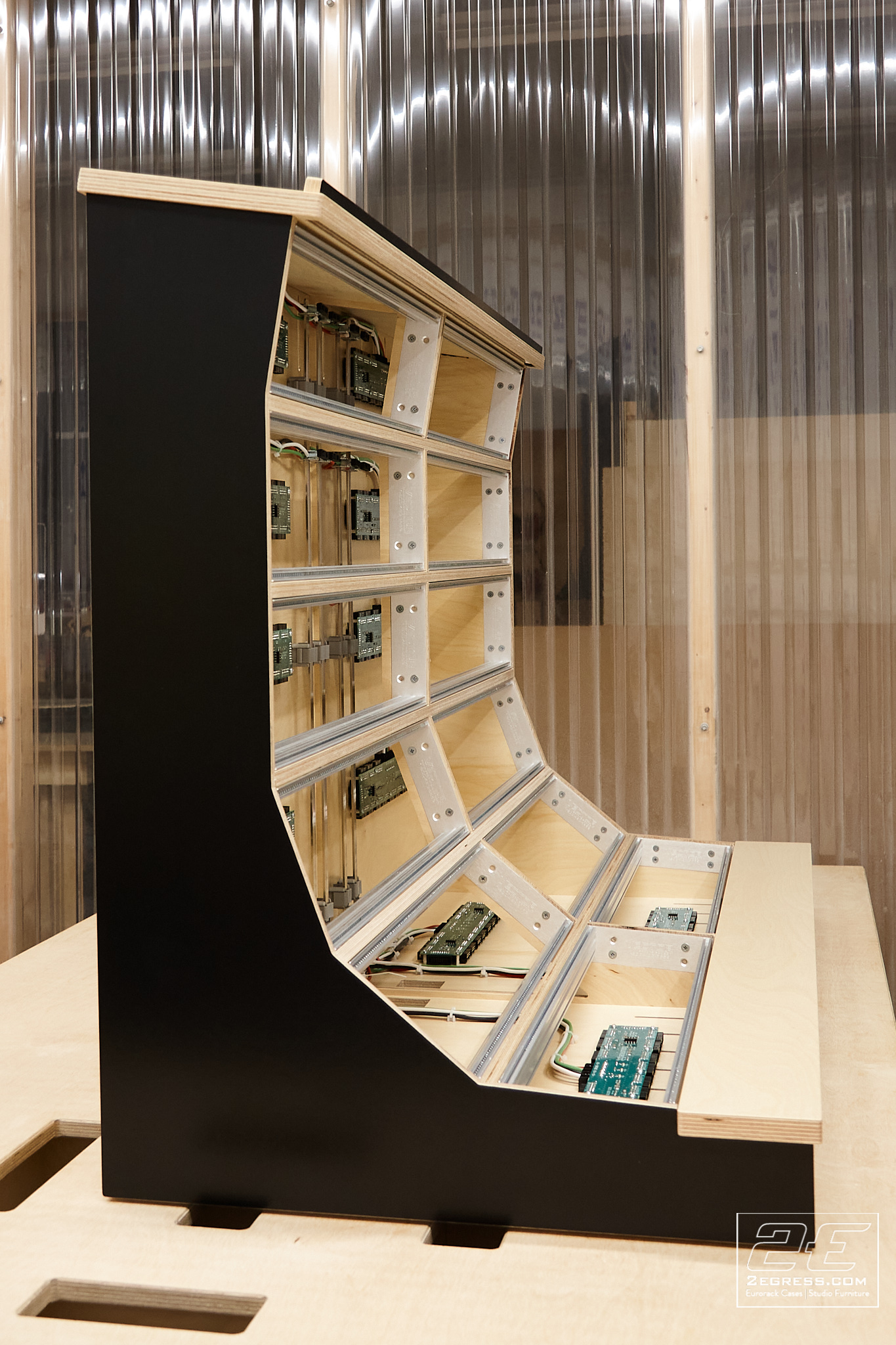

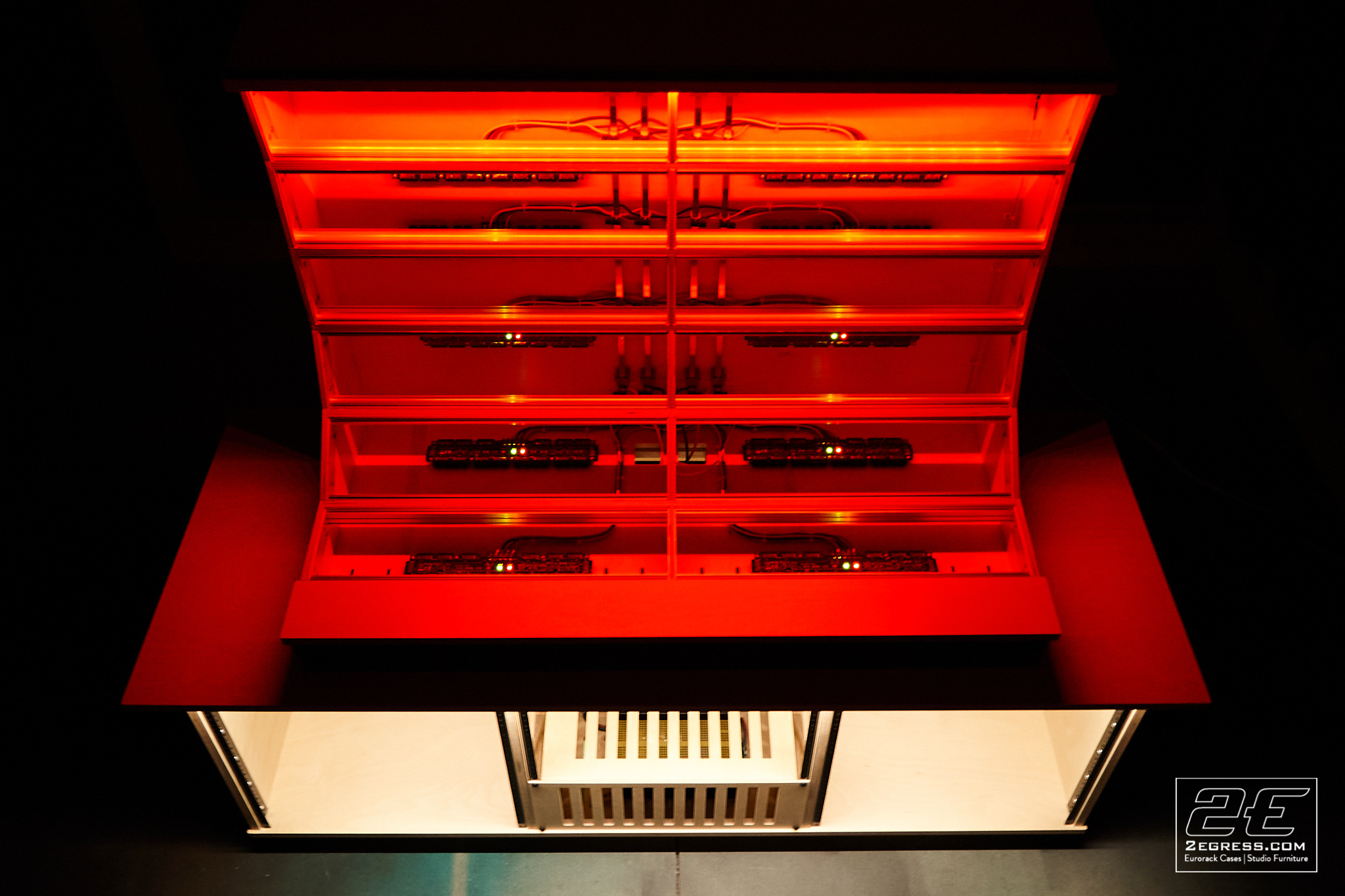

18U Lander has Docked!
Lander is designed to position on the surface of Rover the “Power station" studio equipment rack.
"Brock fully integrated the power supply, Genus Modu LIBB bus boards and LED lighting systems which made for an amazing out of box experience and I couldn’t be happier with the result.”
Lev Perrey
Lander eurorack case custom built for
Lev Perrey, VP of Product at Universal Audio.
Width size (in):
104HP
Double* (44L X 22W X 31.75H)
*LTL freight only.
Depths top to bottom (mm):
129, 127, 127, 134, 116, 76
Request a custom order and have something made just for you.

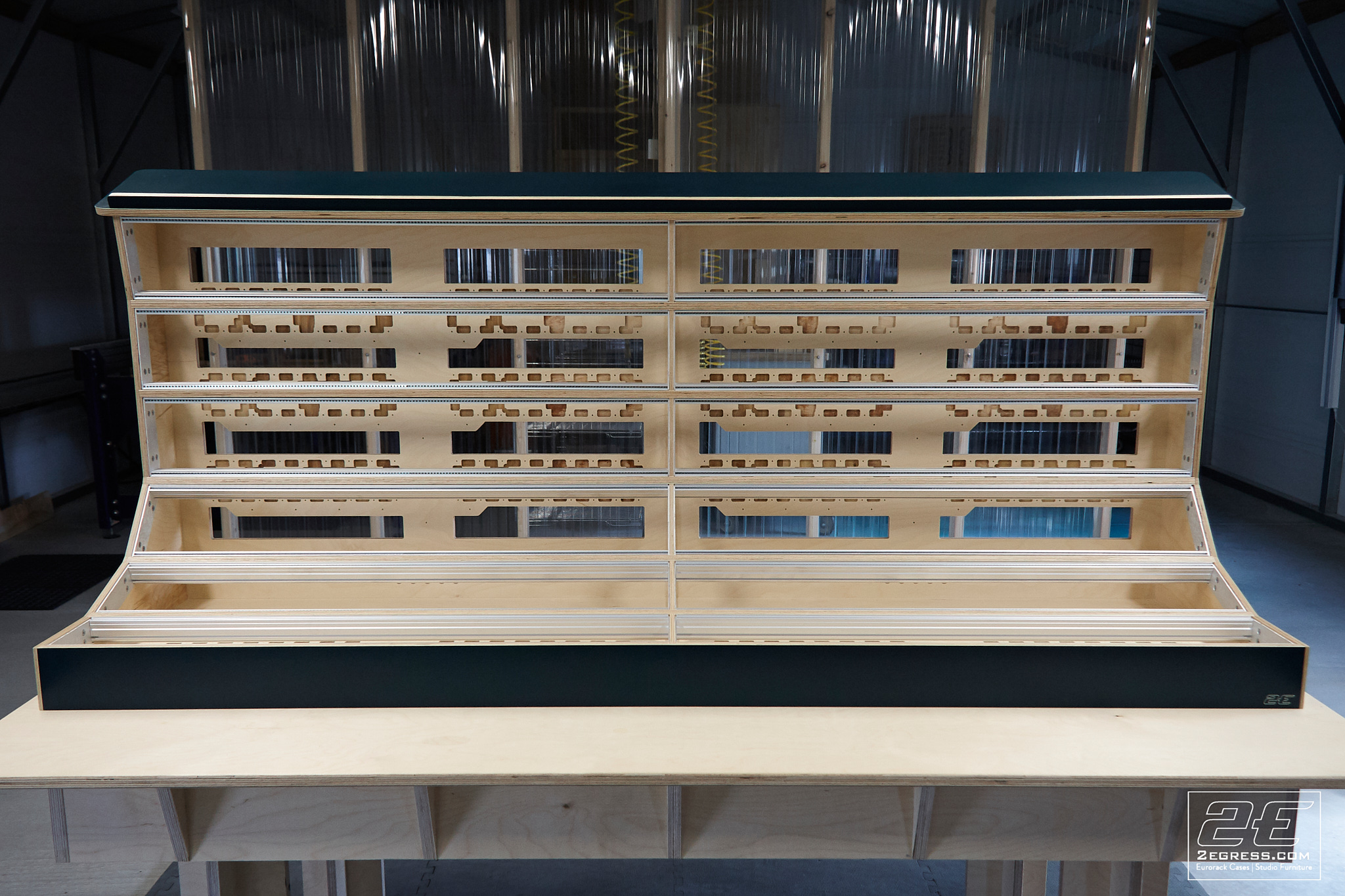

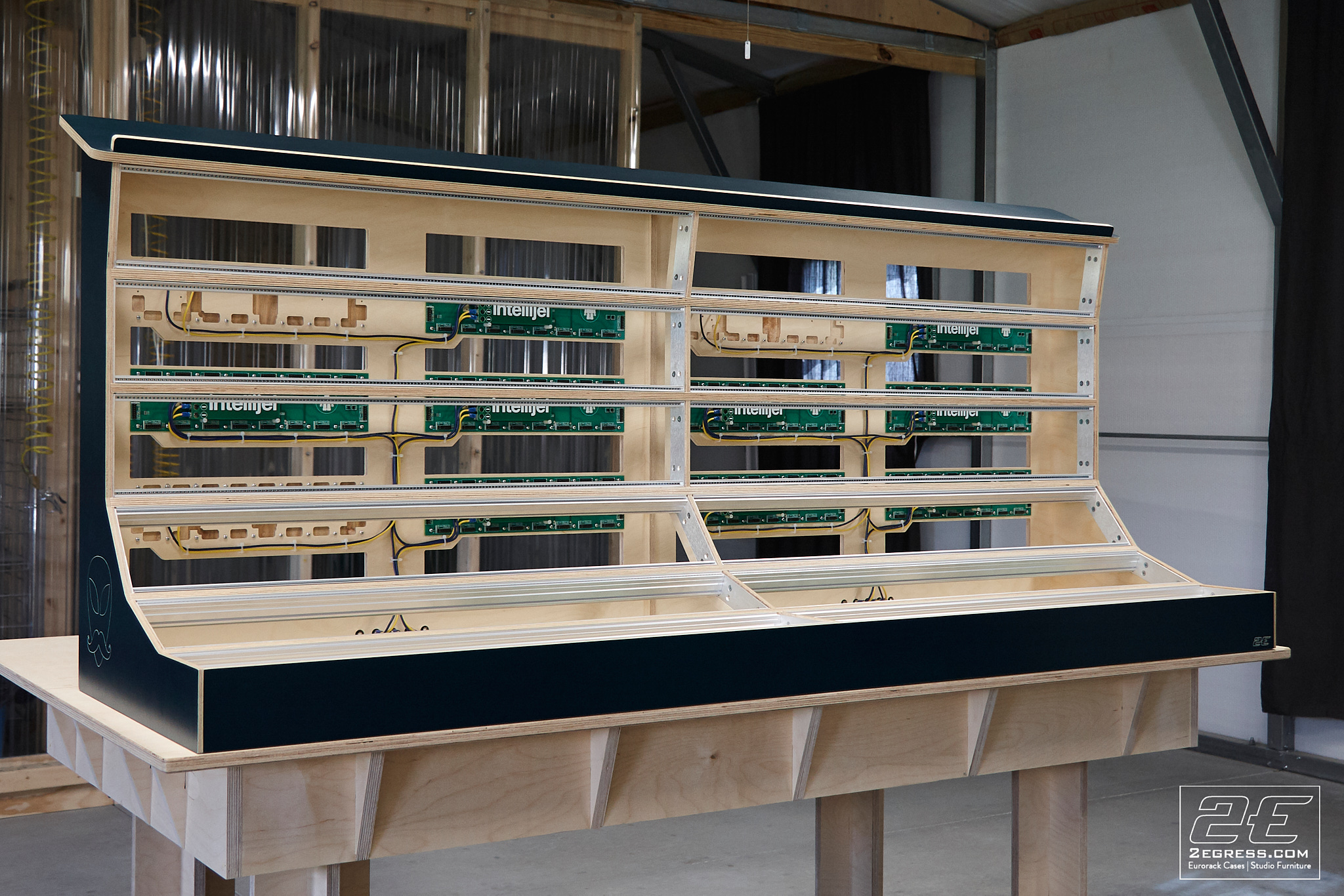

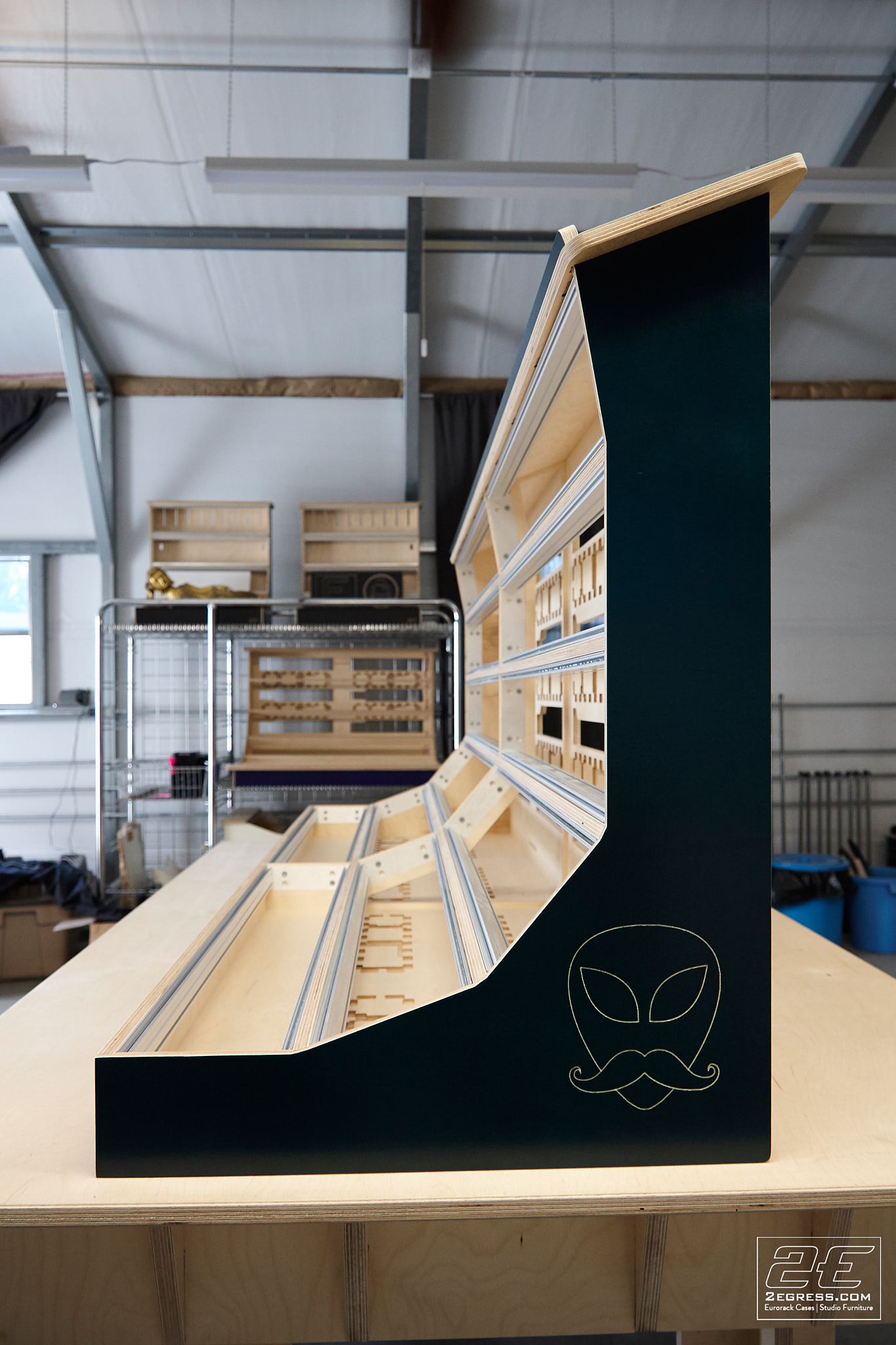

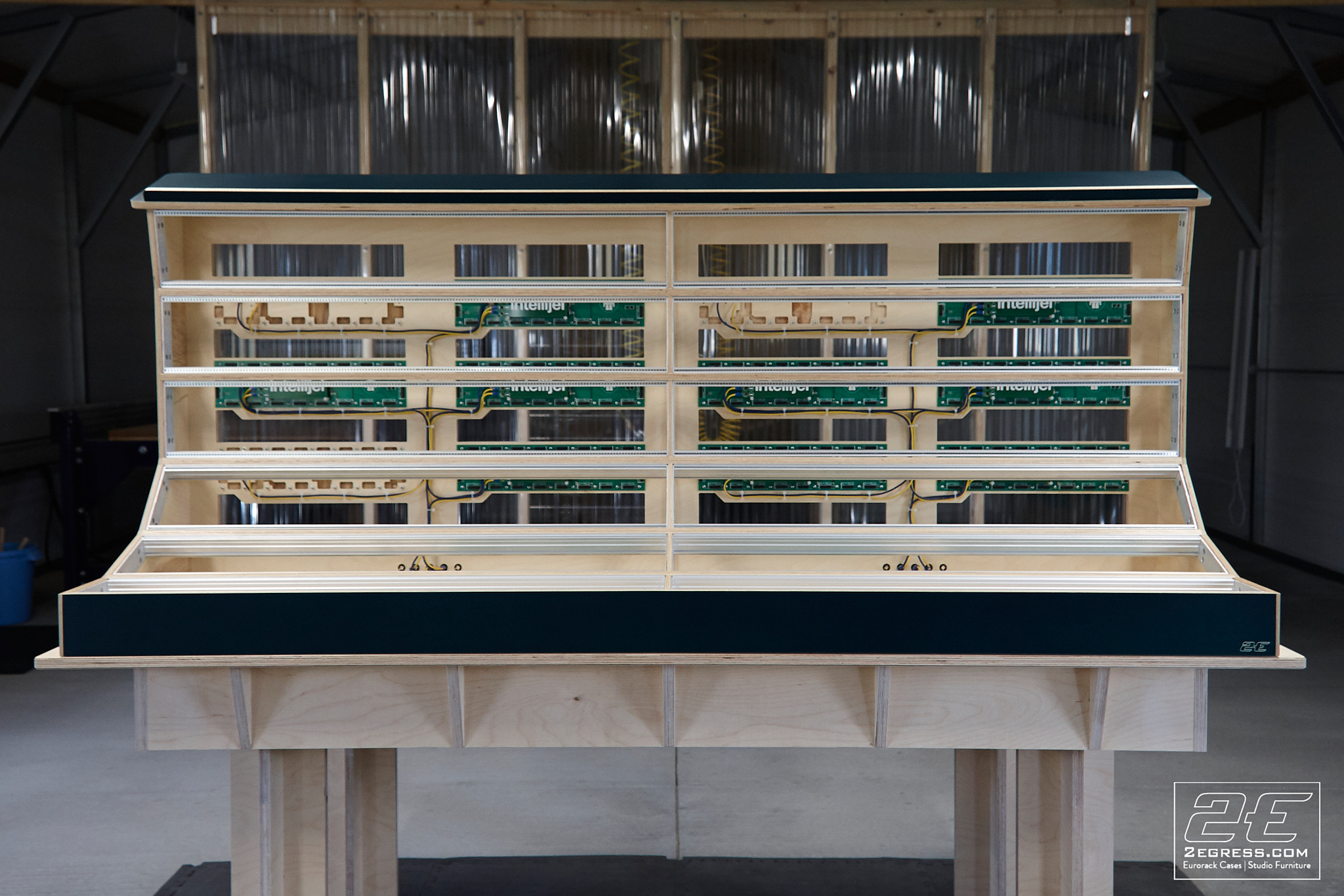

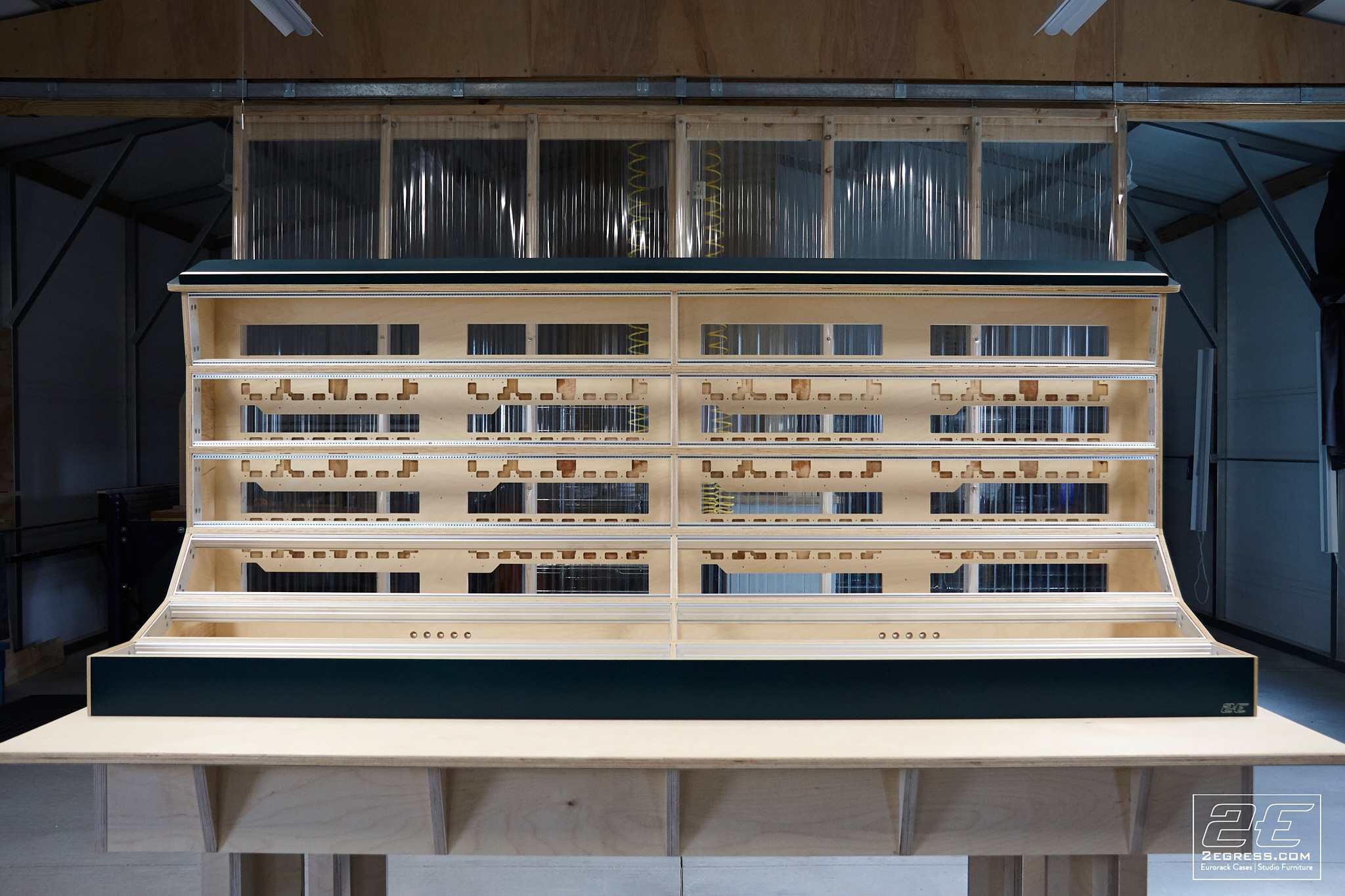

Meet 18U Luigi!
Open back system for easy access and better ventilation.
Luigi notable traits include the intense green and the personal mustache logo milled on the side of the case.
Luigi eurorack case custom built for Christopher Cardone.
Width size (in):
168HP
Single* (36.75L X 21W X 31H)
Double* (71L X 21W X 31H)
*LTL freight only.
Depths top to bottom (mm):
109, 108, 108, 146, 79, 71
Request a custom order and have something made just for you.

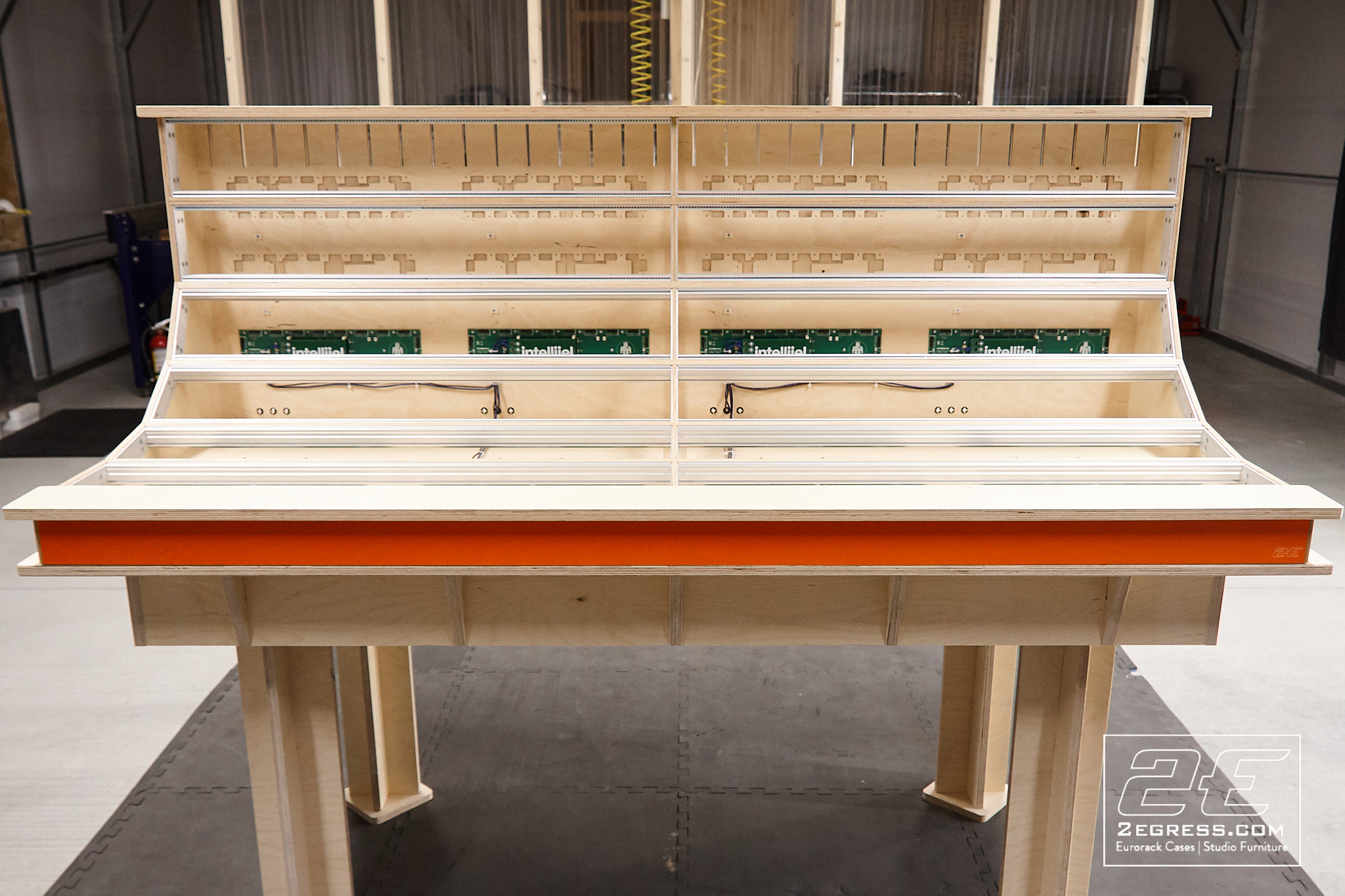

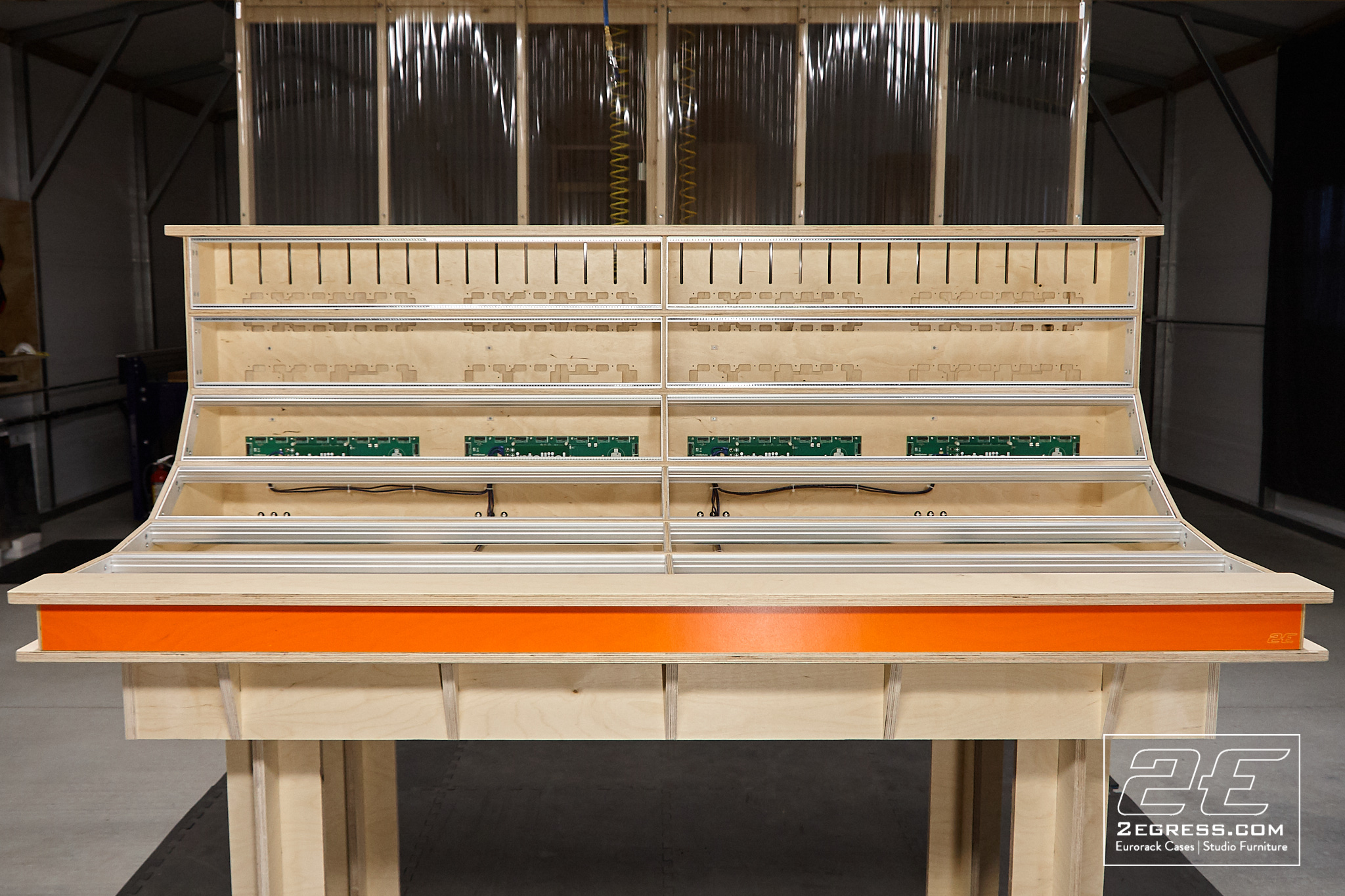

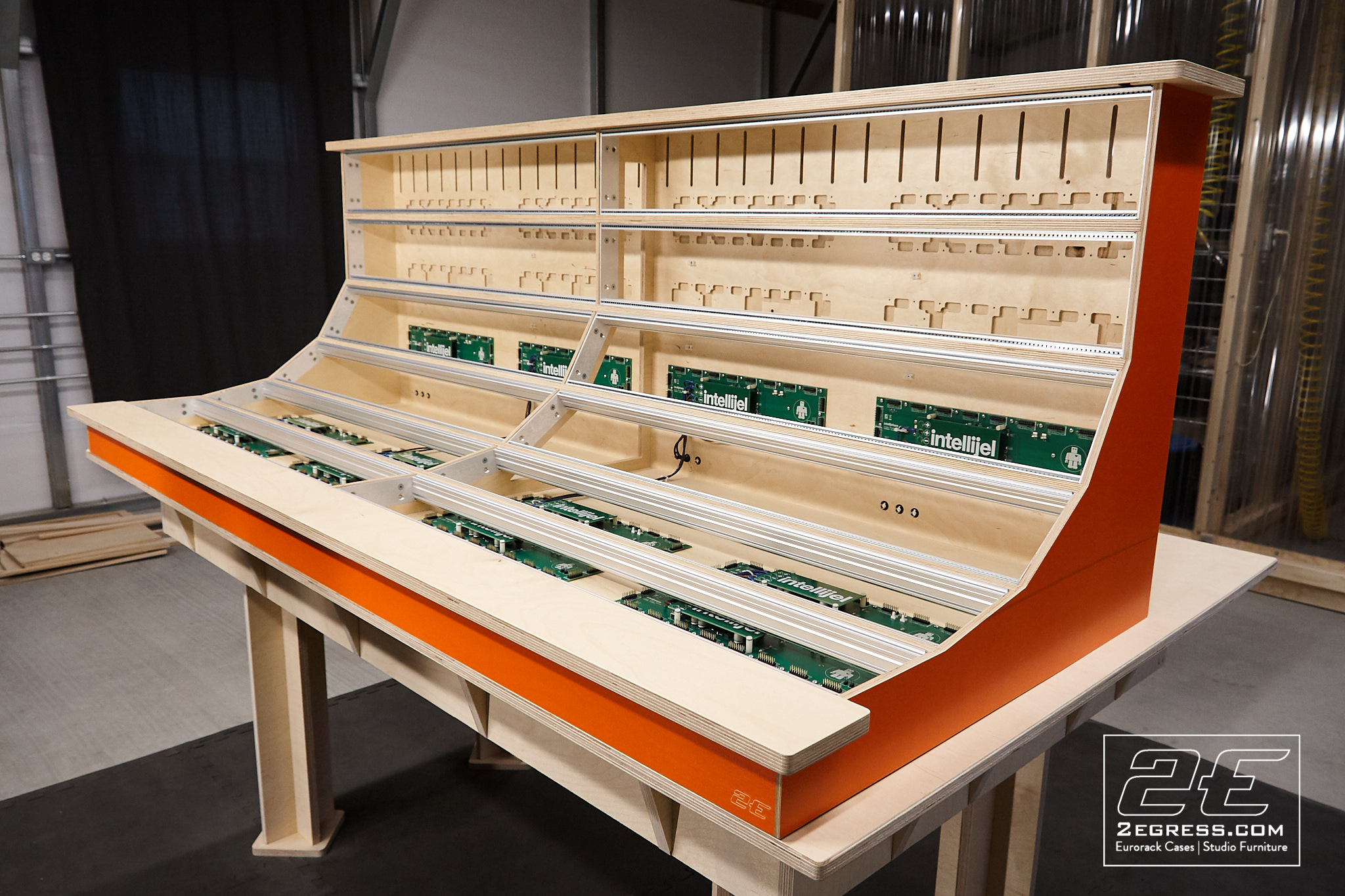

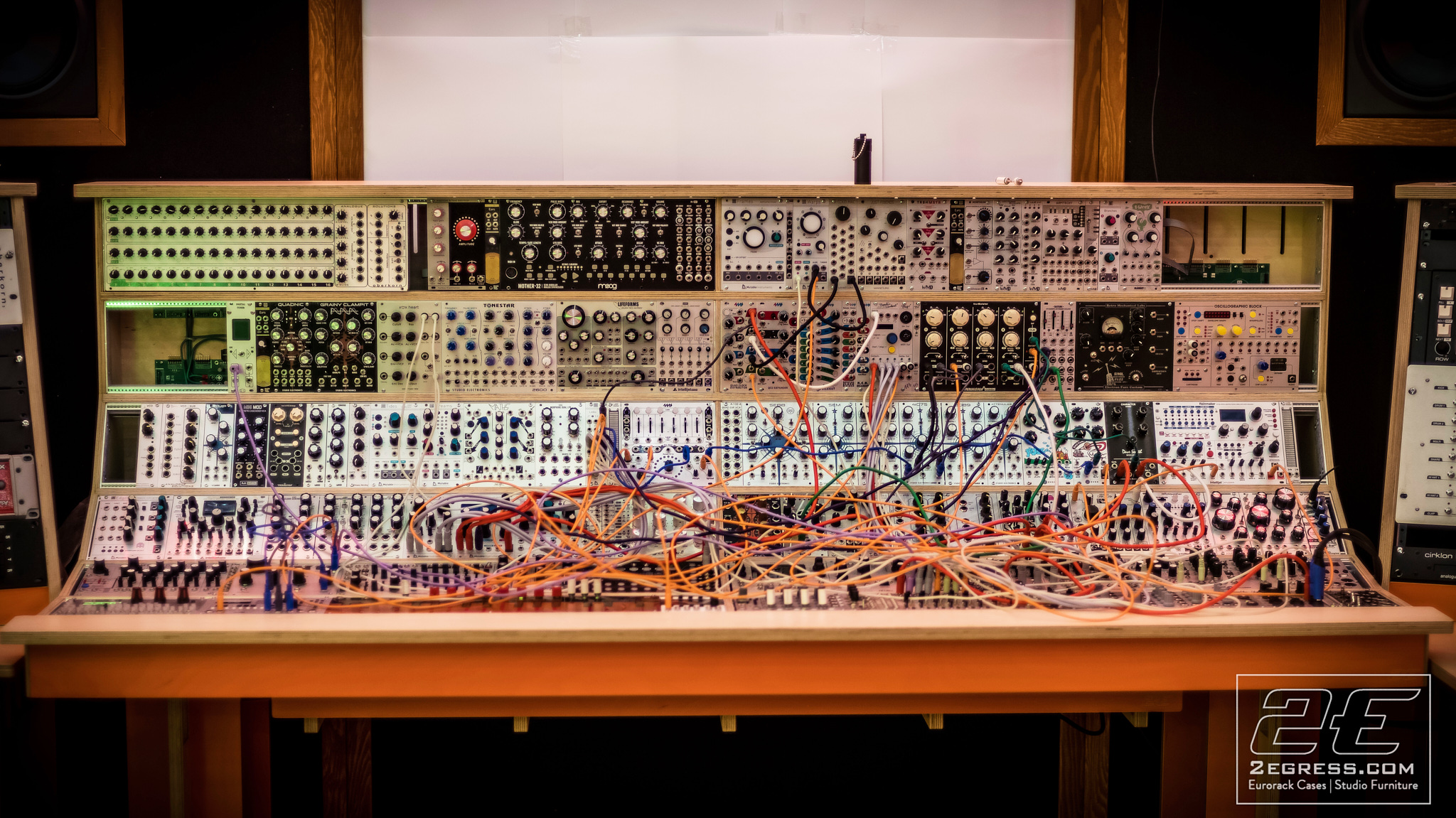

Arising from the ashes, we proudly introduce 18U Phoenix!
“My productivity in the studio has been completely revolutionized for the better.” Tyler Doty
Width size (in):
168HP
Single* (36.75L X 28.5W X 24.2H)
Double* (71L X 28.5W X 24.2H)
*LTL freight only.
Depths top to bottom (mm):
120.5, 120.5, 146, 101, 58, 57.8
Request a custom order and have something made just for you.

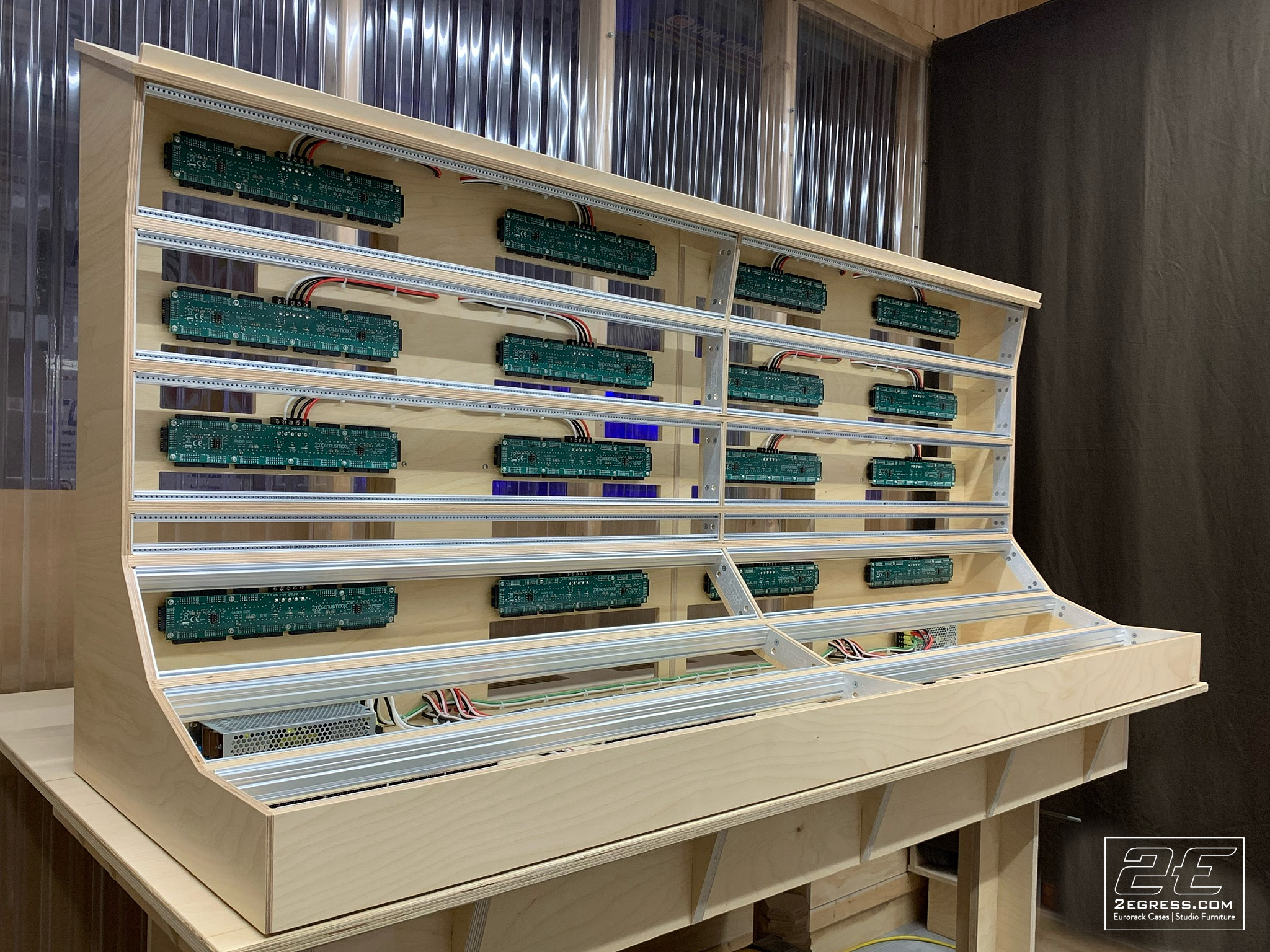

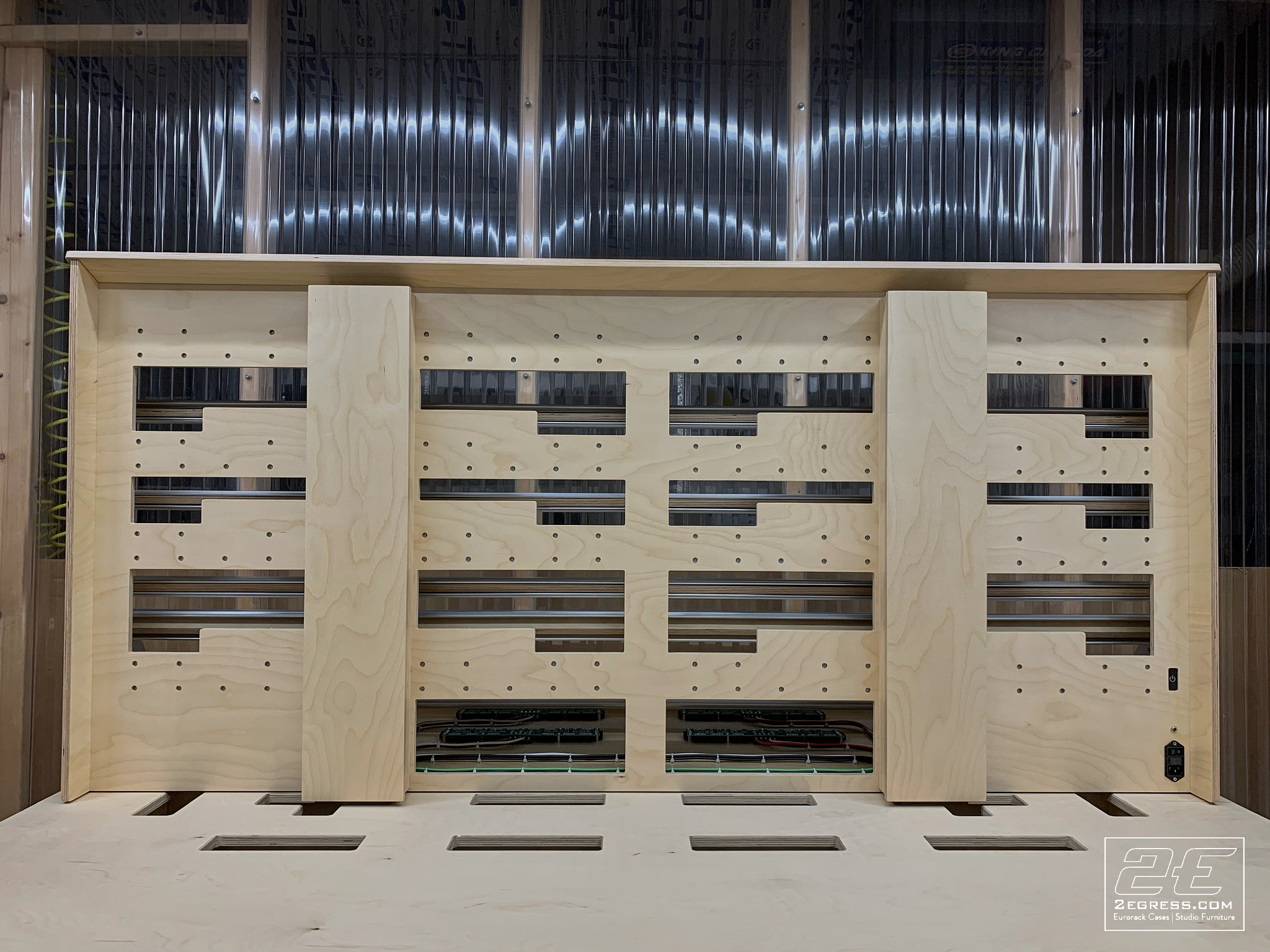

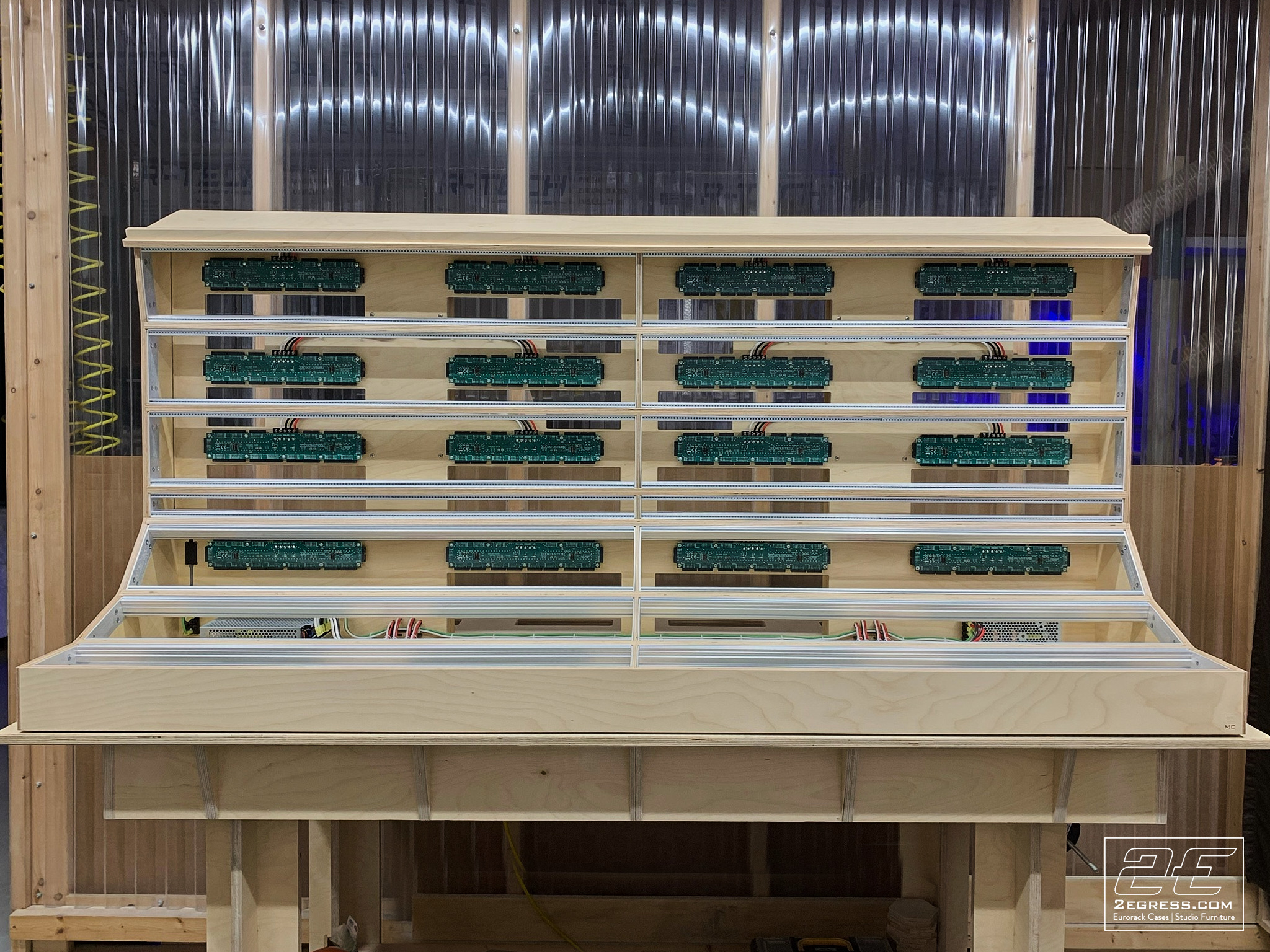

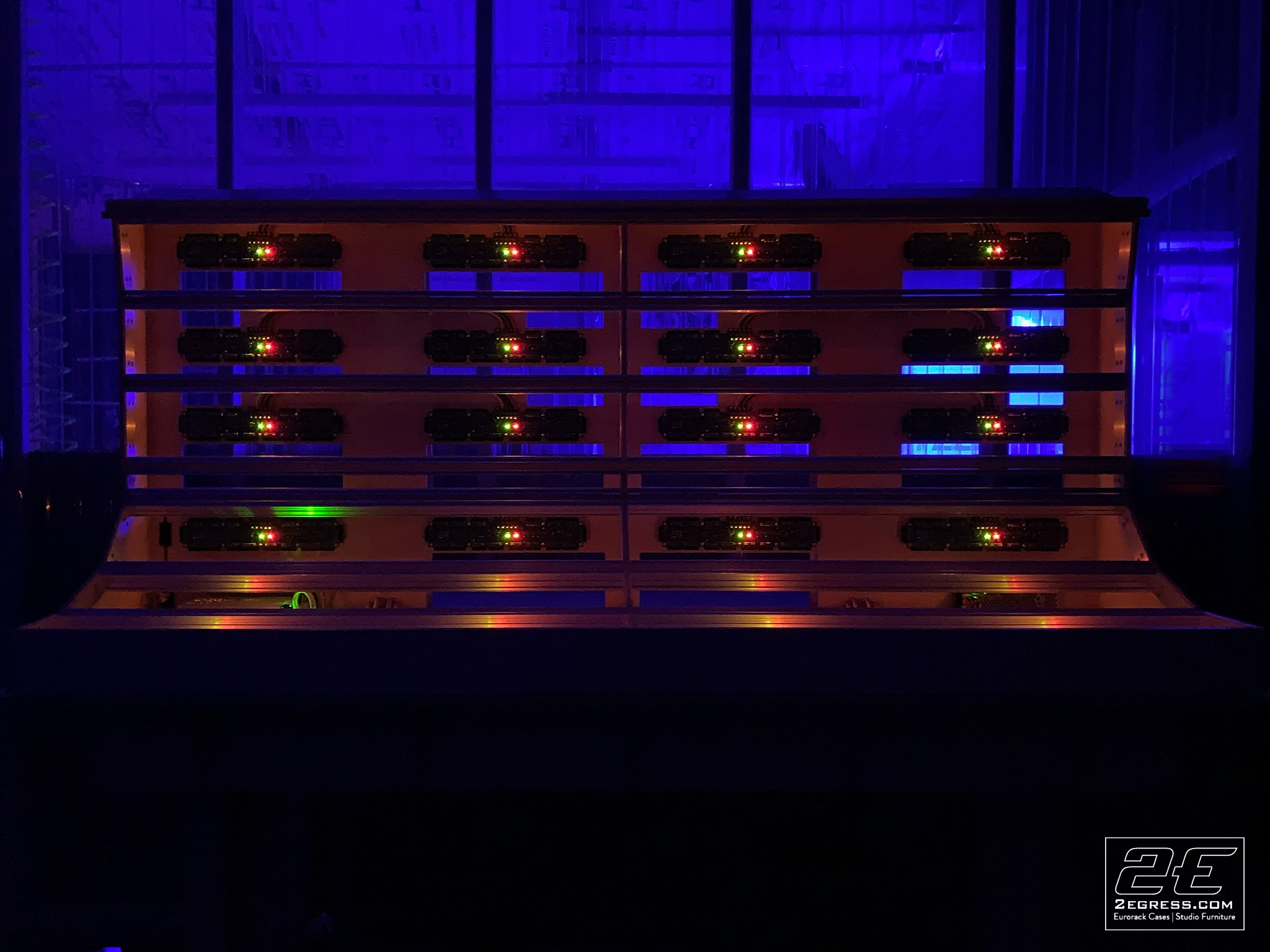

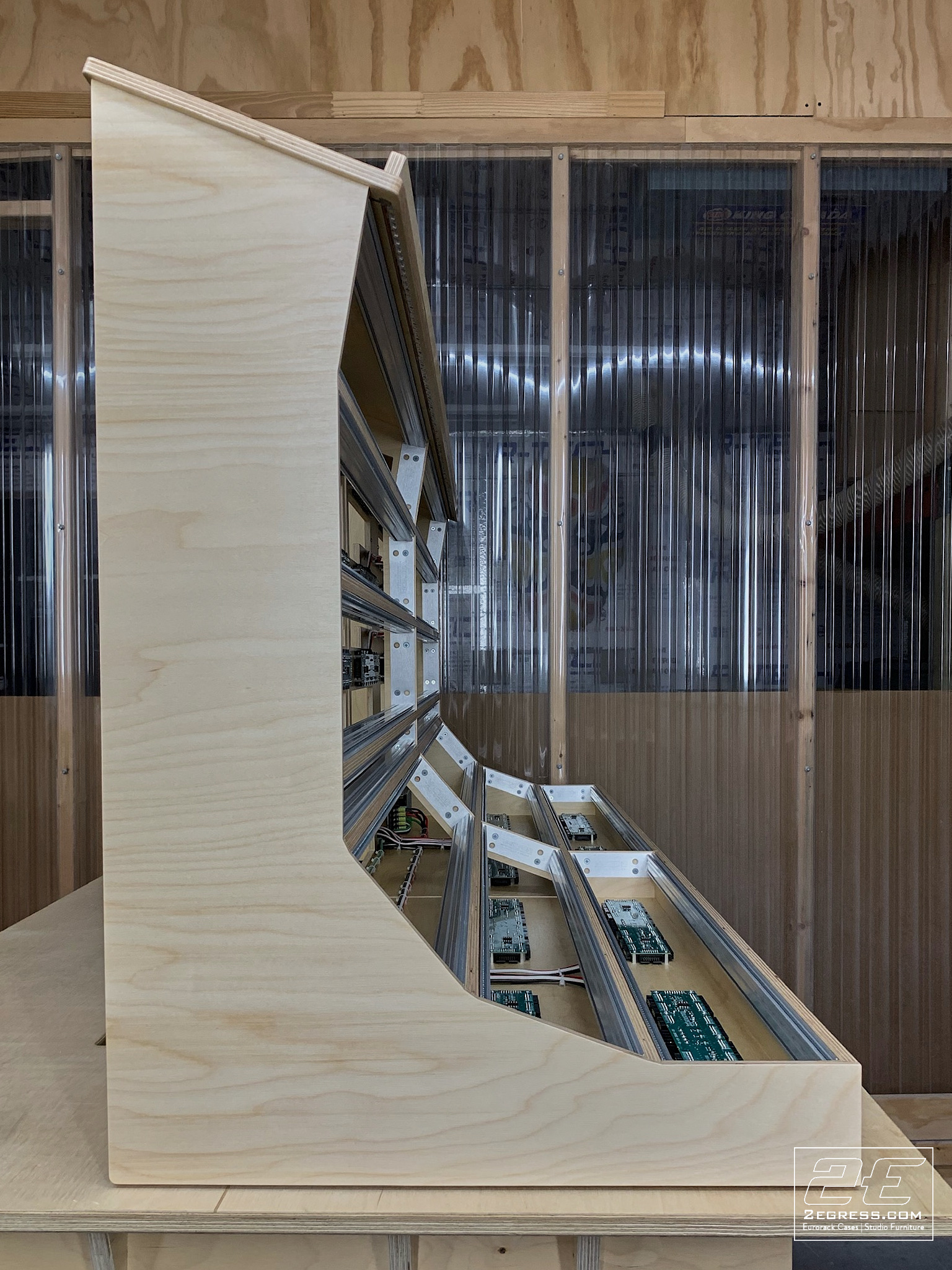

19U Ask the Dust
A True Gentleman’s Case!
"The look is clean and precise...Beauty and function in perfect harmony."
Jamie Lidell

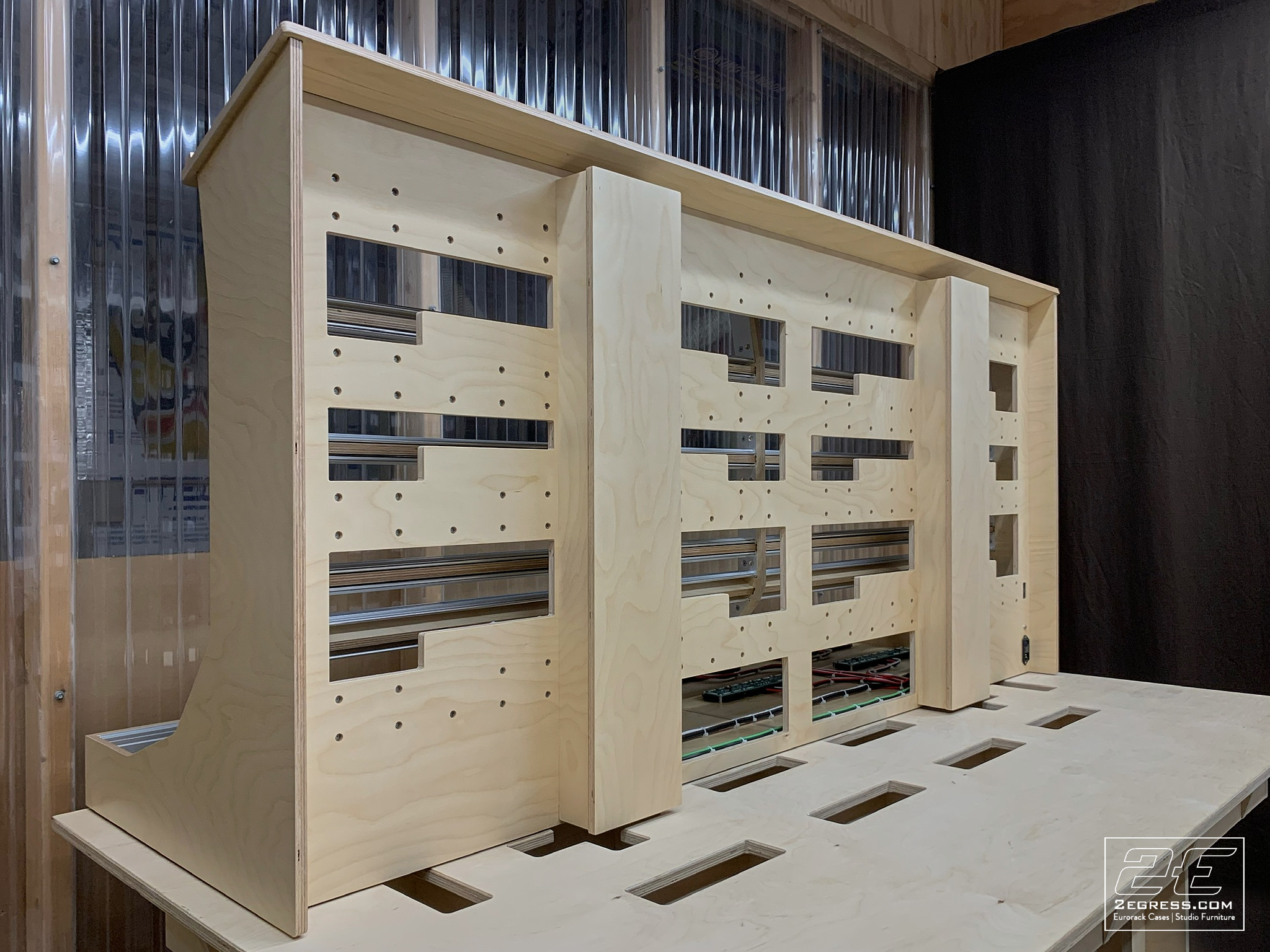

“Ask the Dust” eurorack case custom built for Jamie Lidell at Hanging Out with Audiophiles.
Width size (in):
168HP
Double* (69.6L X 31W X 28.4H)
*LTL freight only.
Depths top to bottom (mm):
120, 120, 120, 152, 172, 120, 116
Request a custom order and have something made just for you.

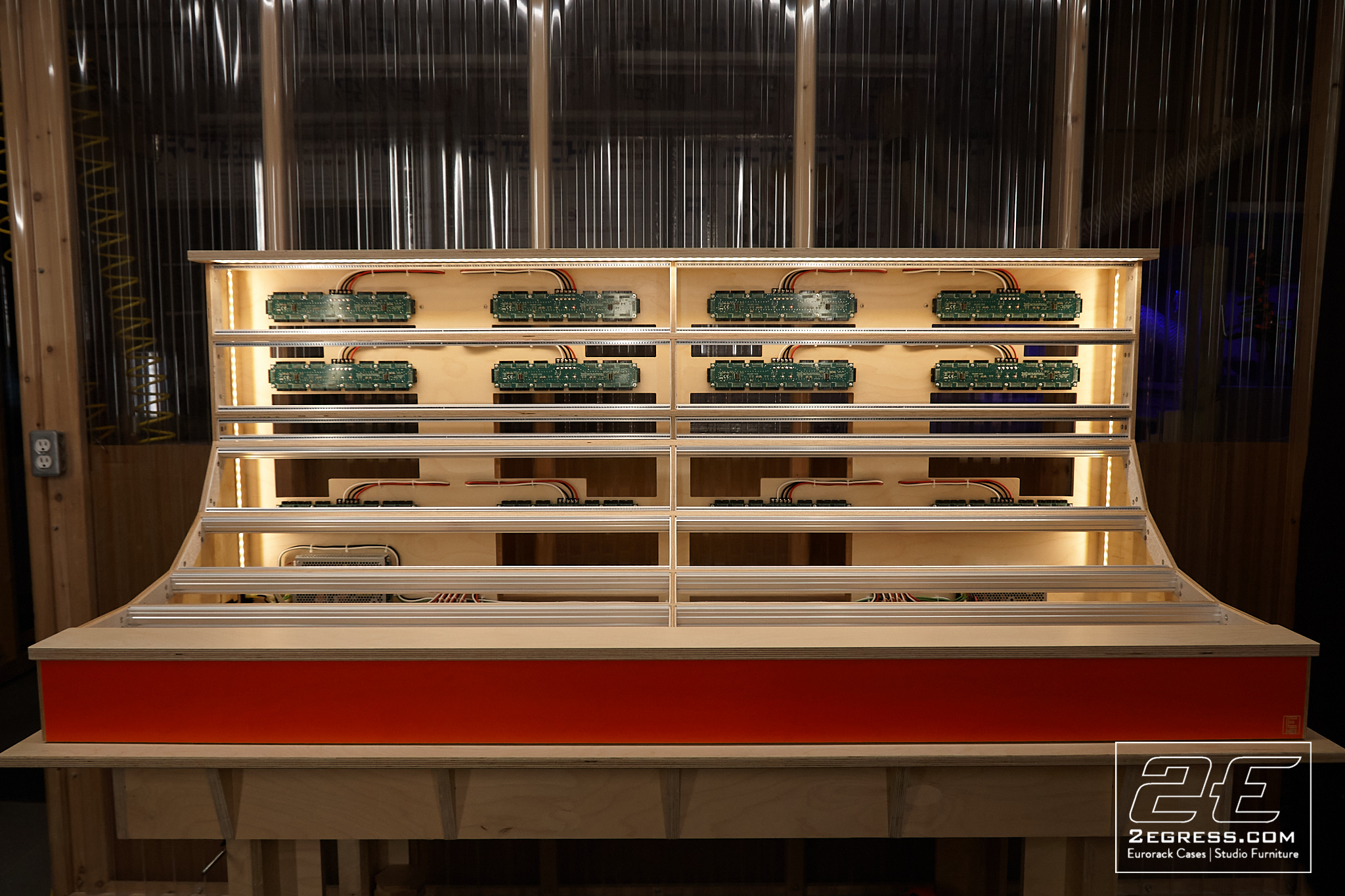

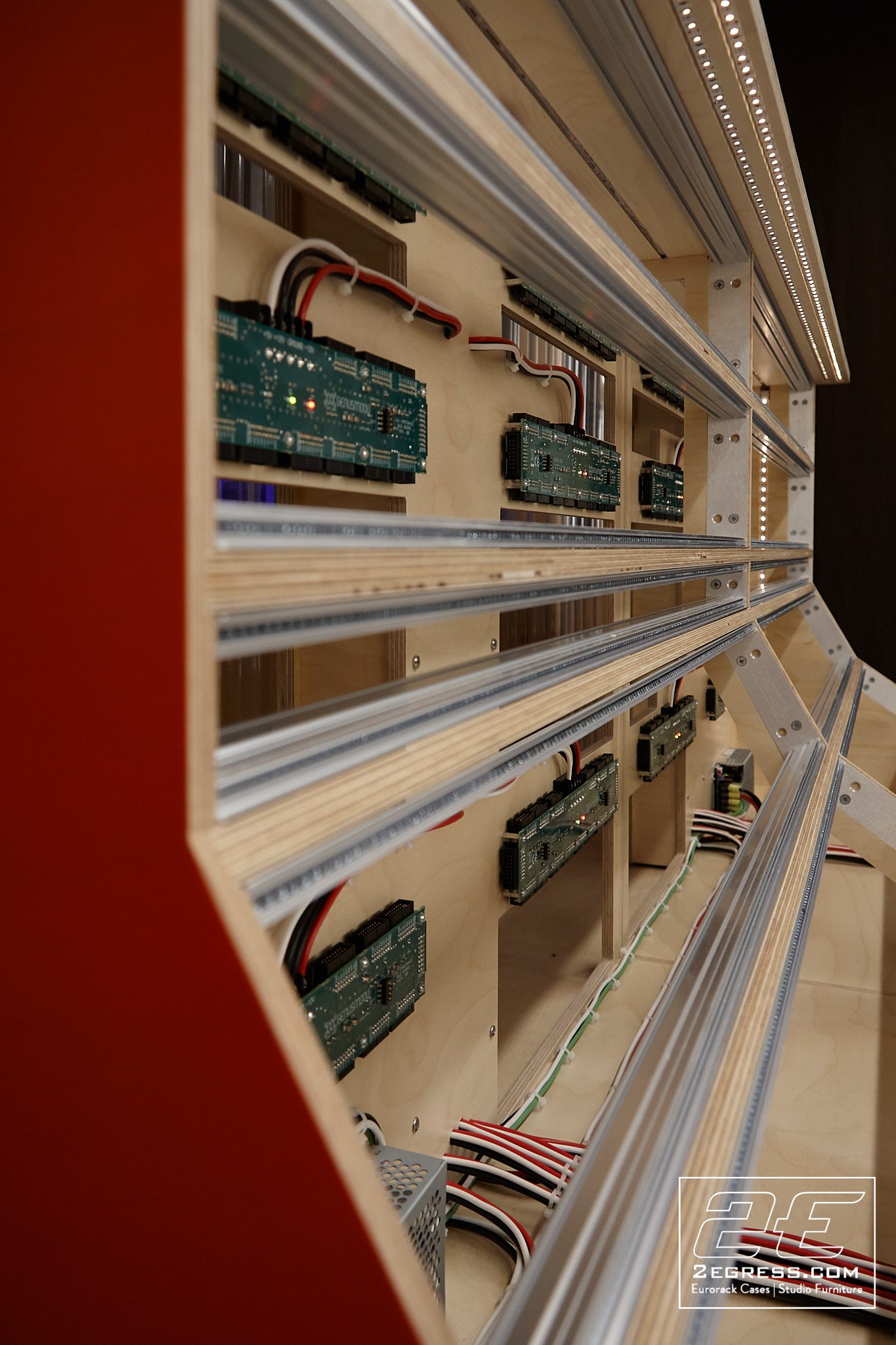

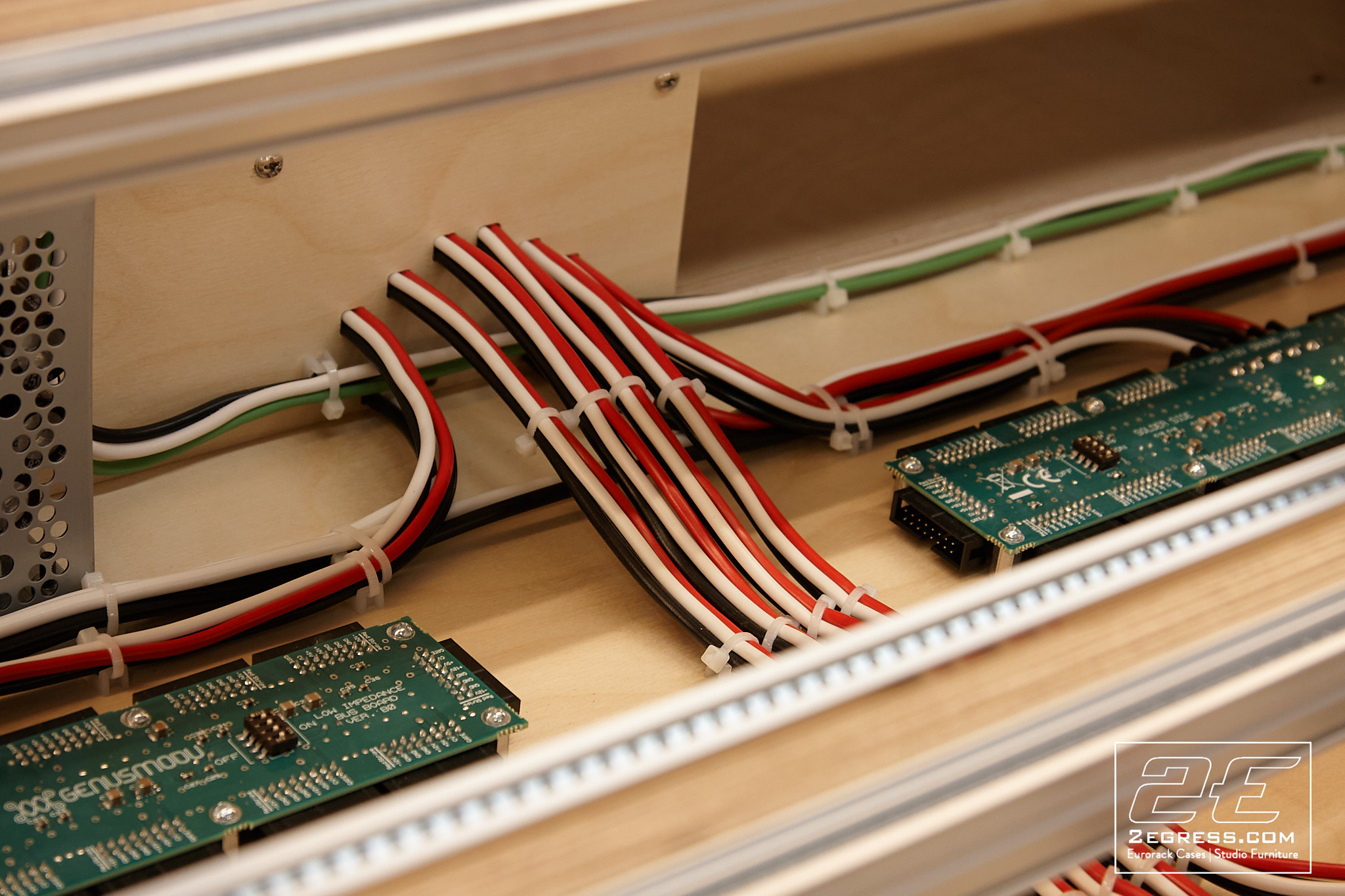

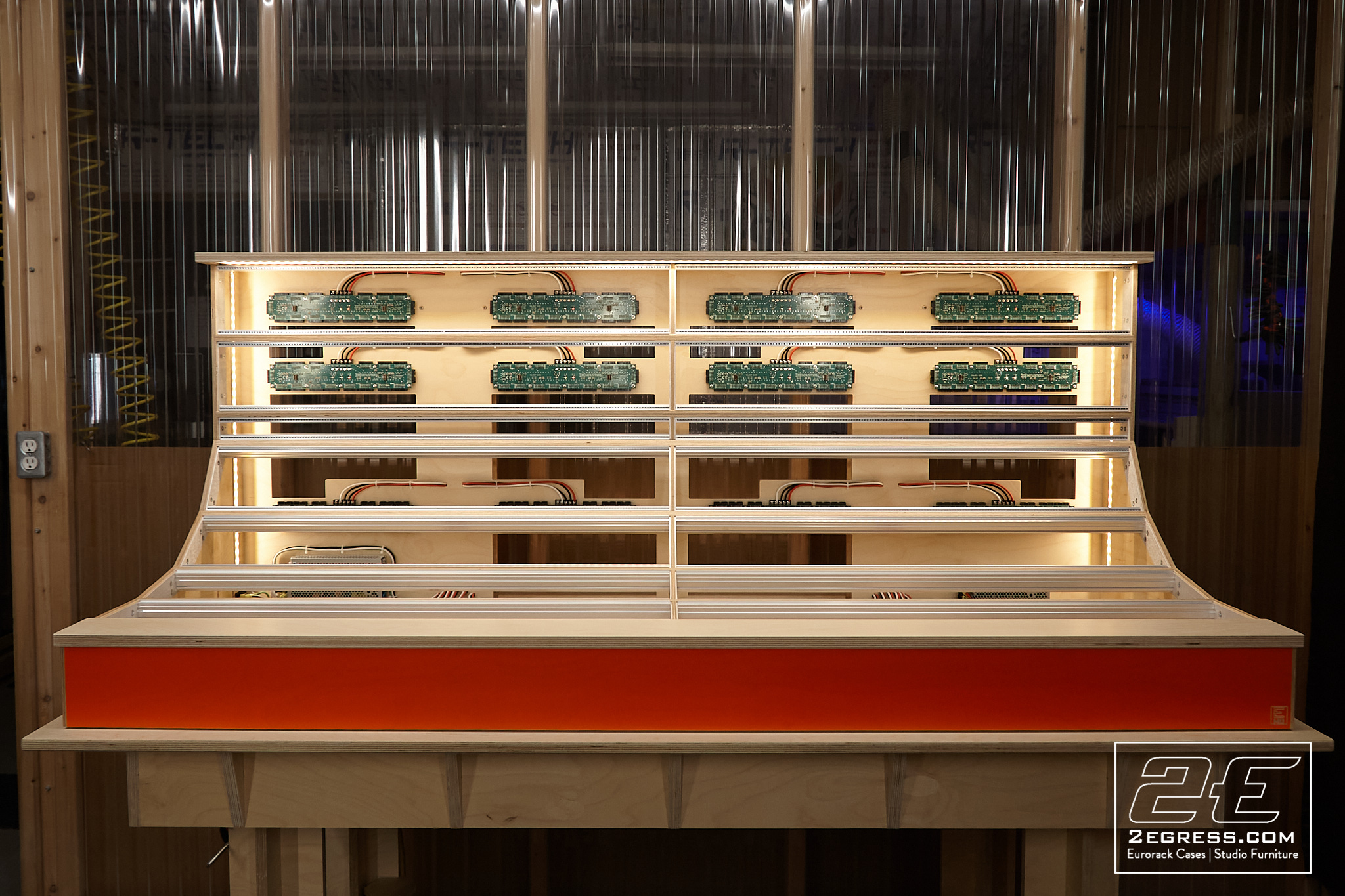

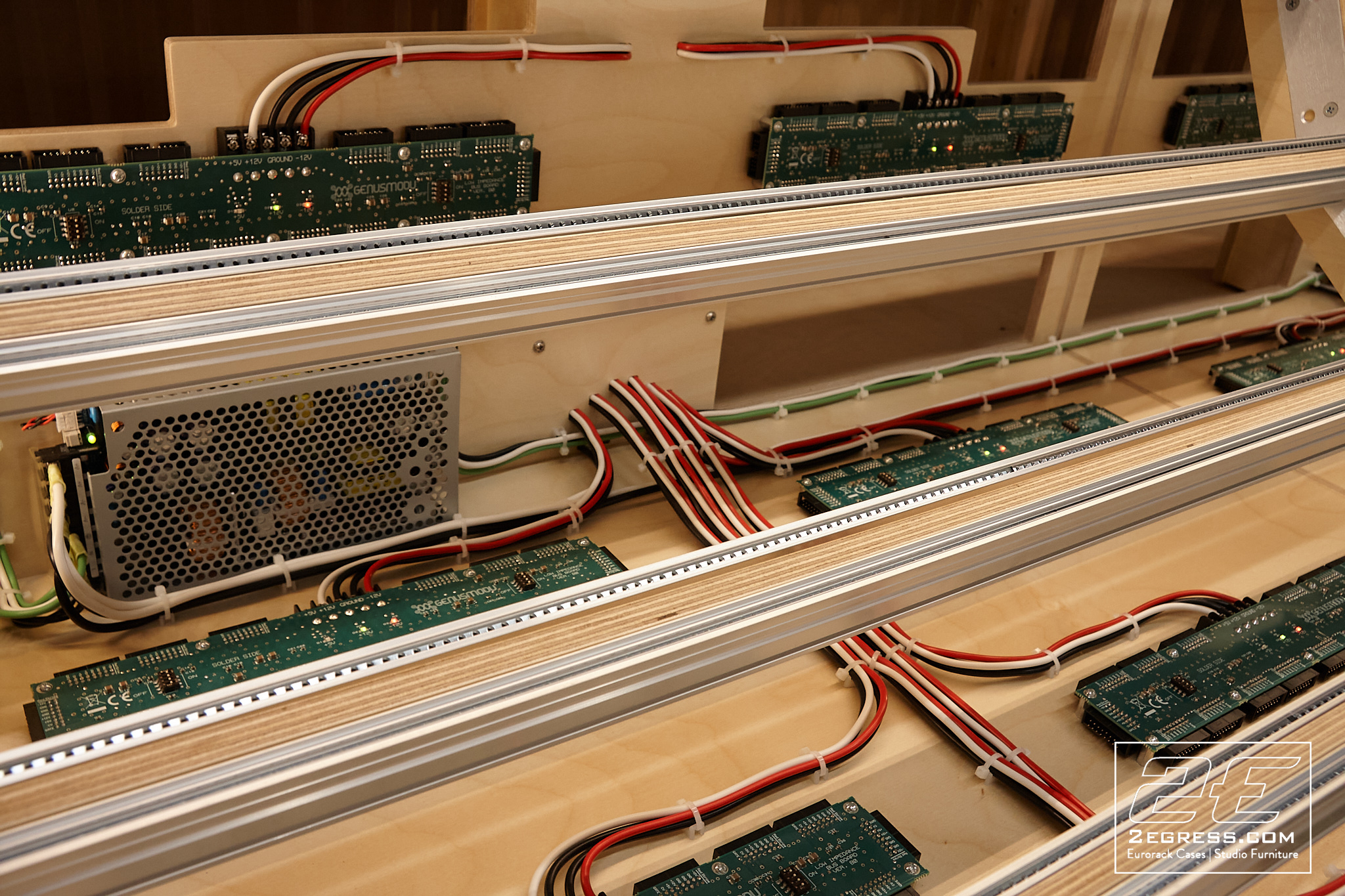

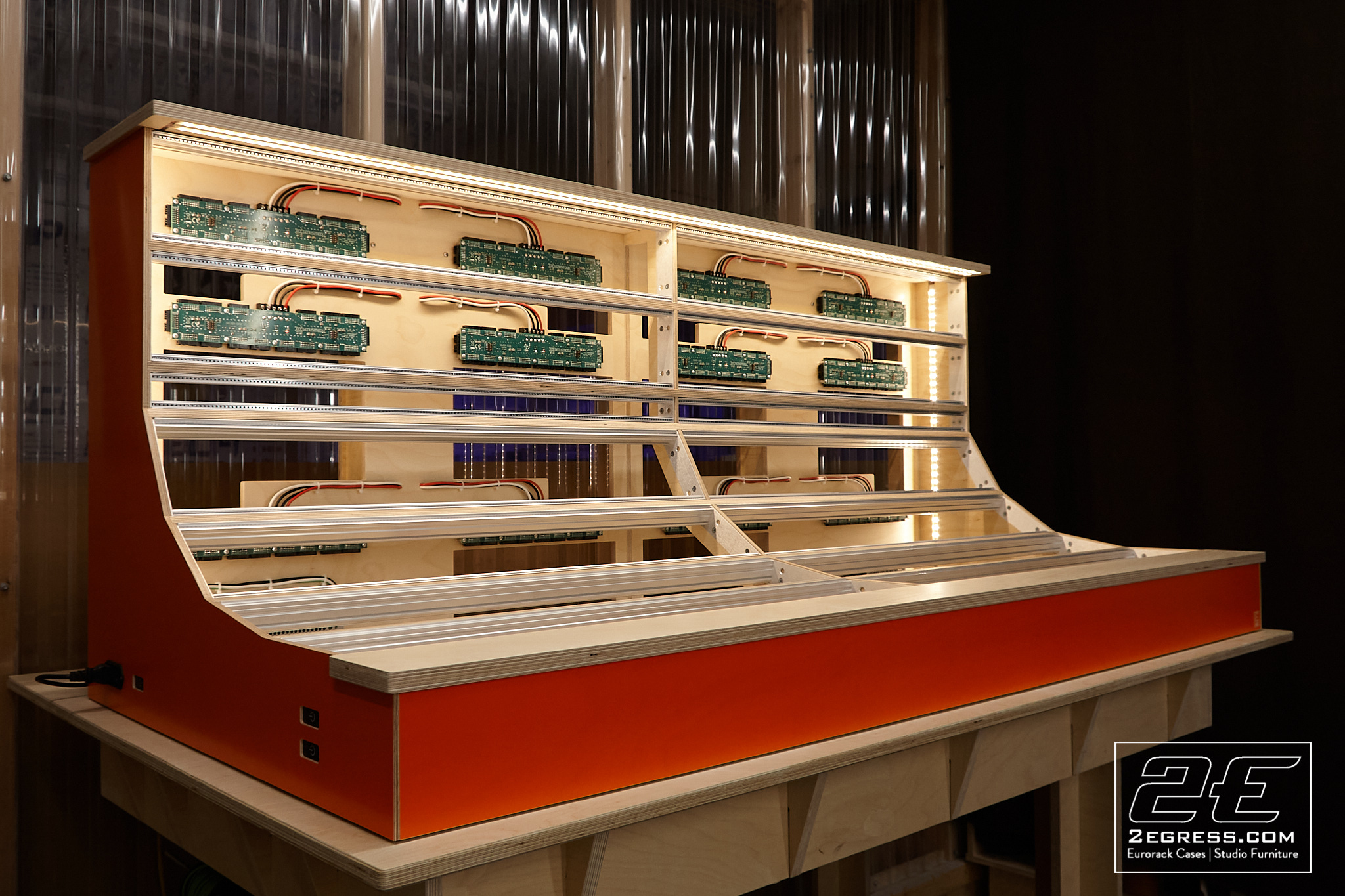

19U Grand Box Canyon
The Great Open Back Monster Twins
- Grand Box Canyon!
Grand Box Canyon eurorack cases custom built for JED the Fish.
Width size (in):
168HP
Double* (69.6L X 31W X 28.4H)
*LTL freight only.
Depths top to bottom (mm):
120, 120, 120, 152, 172, 120, 116
Request a custom order and have something made just for you.

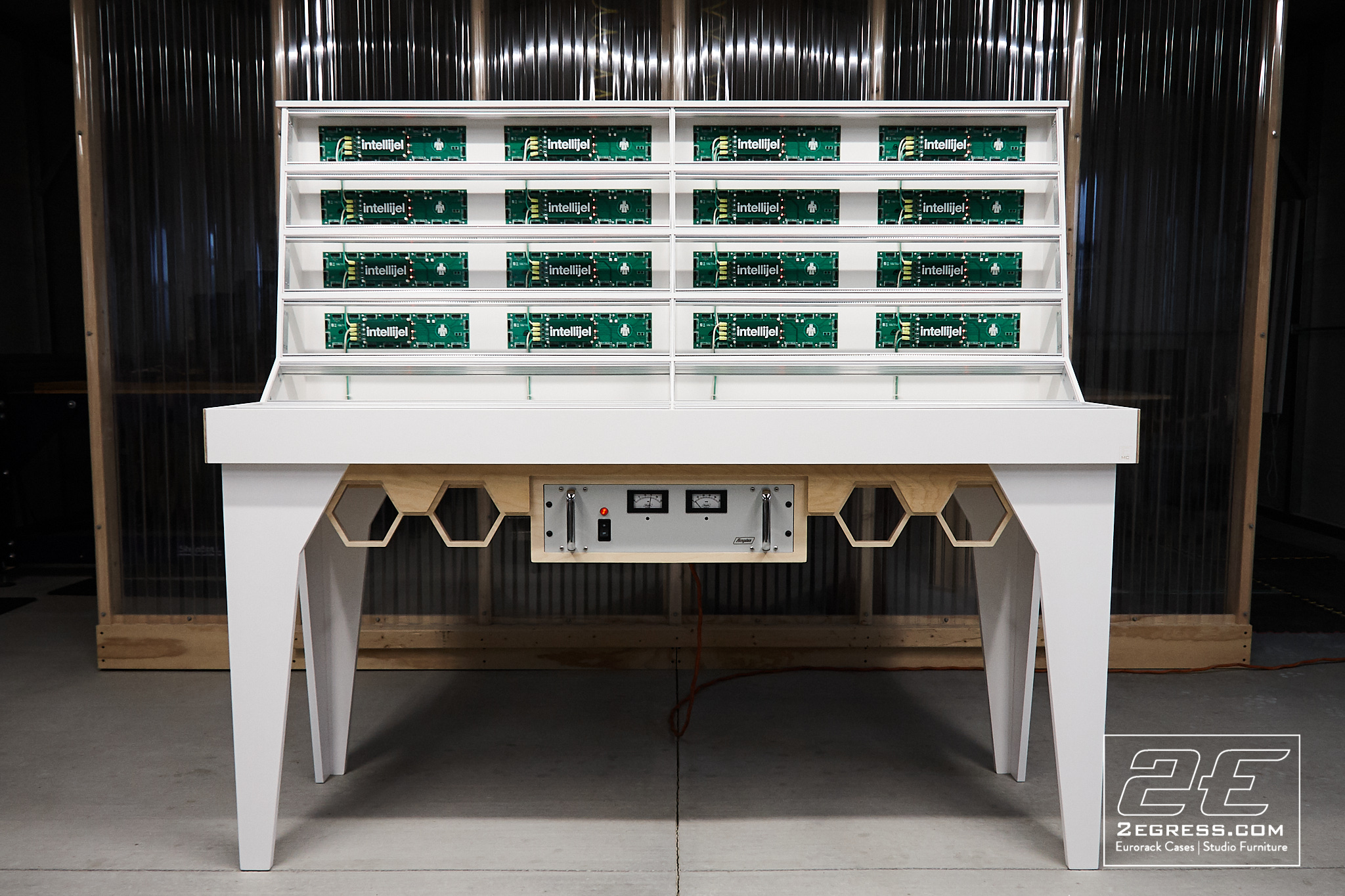

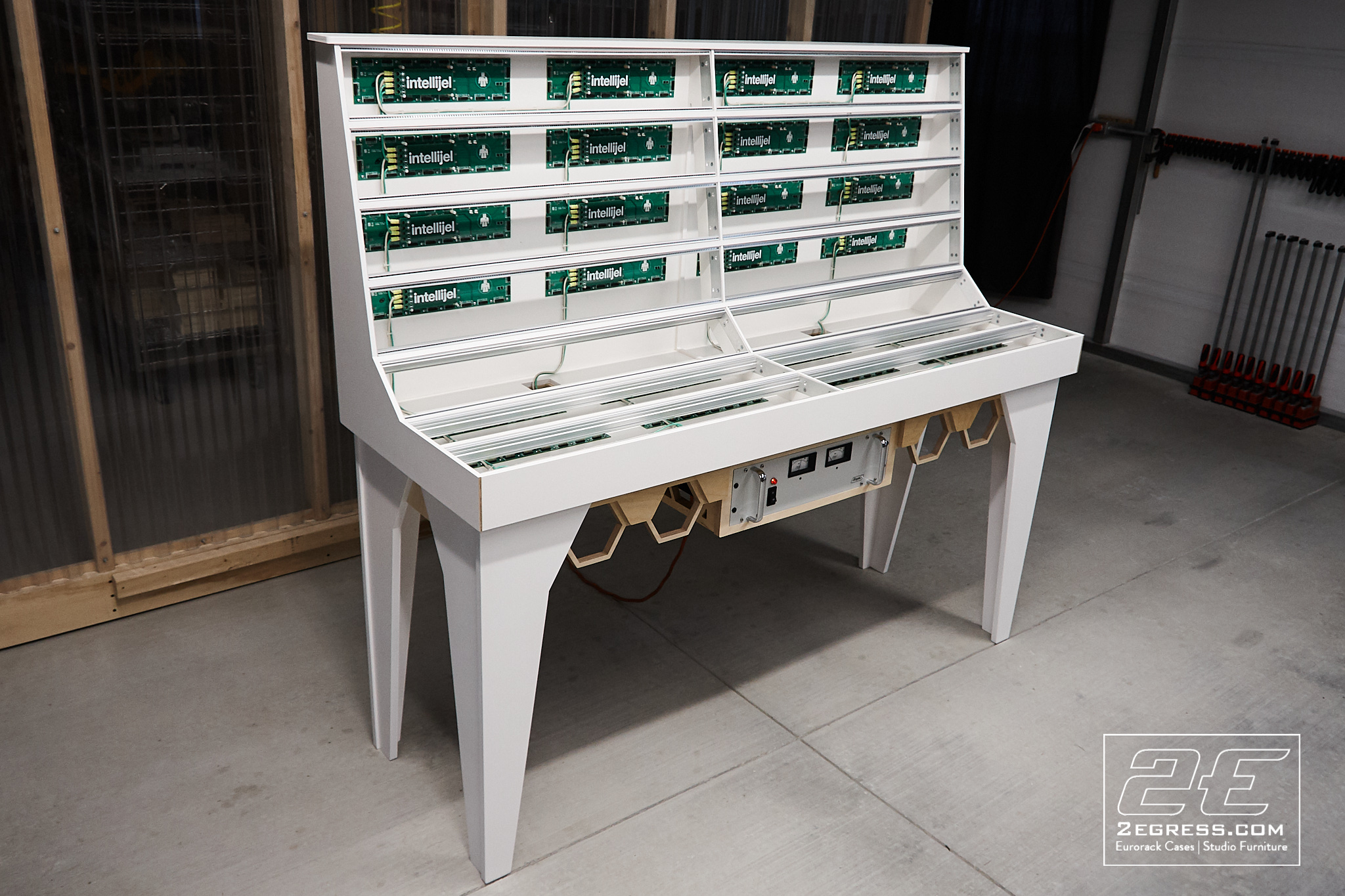

21U Saturn - The Ruler of Time!

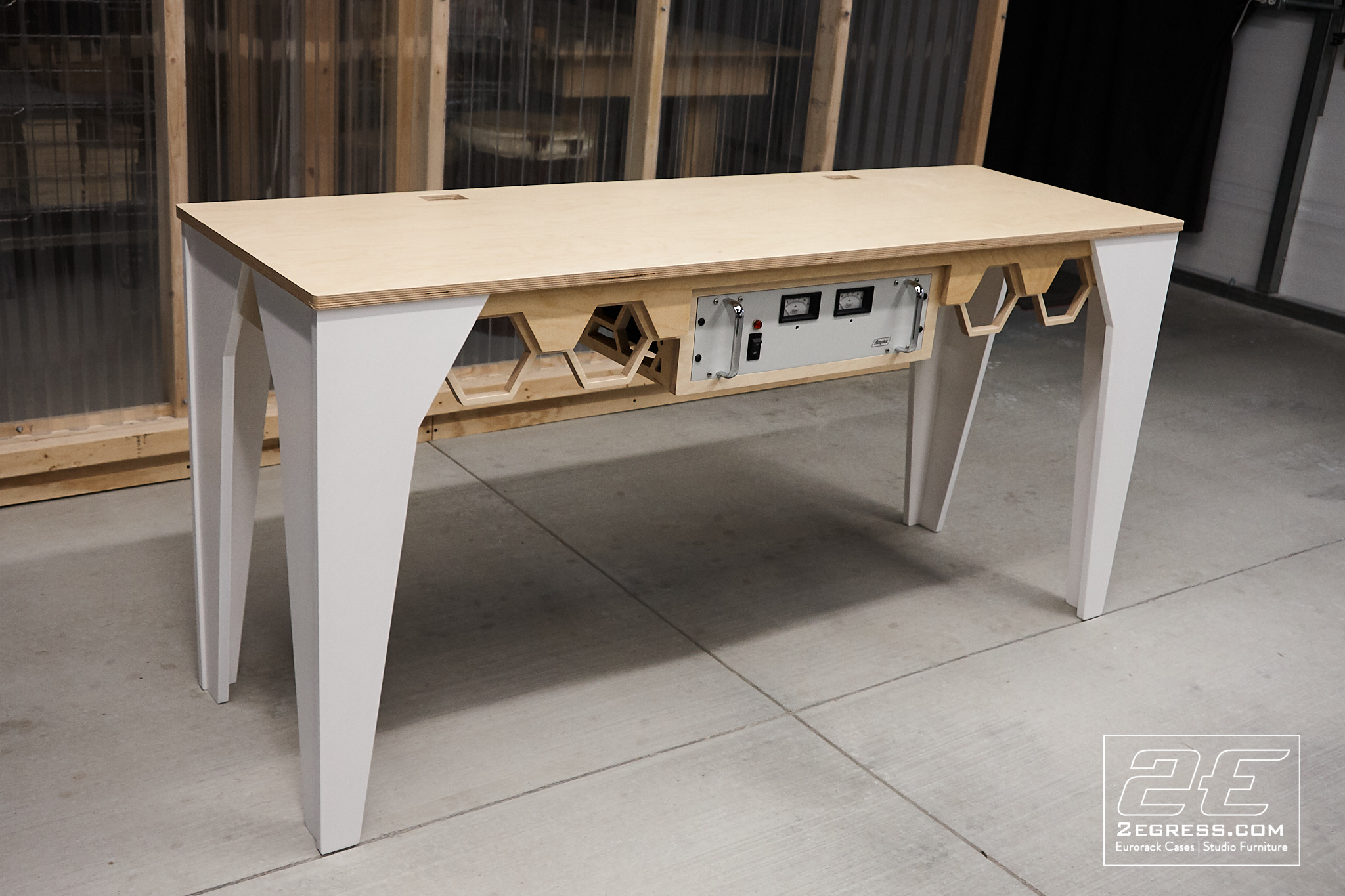

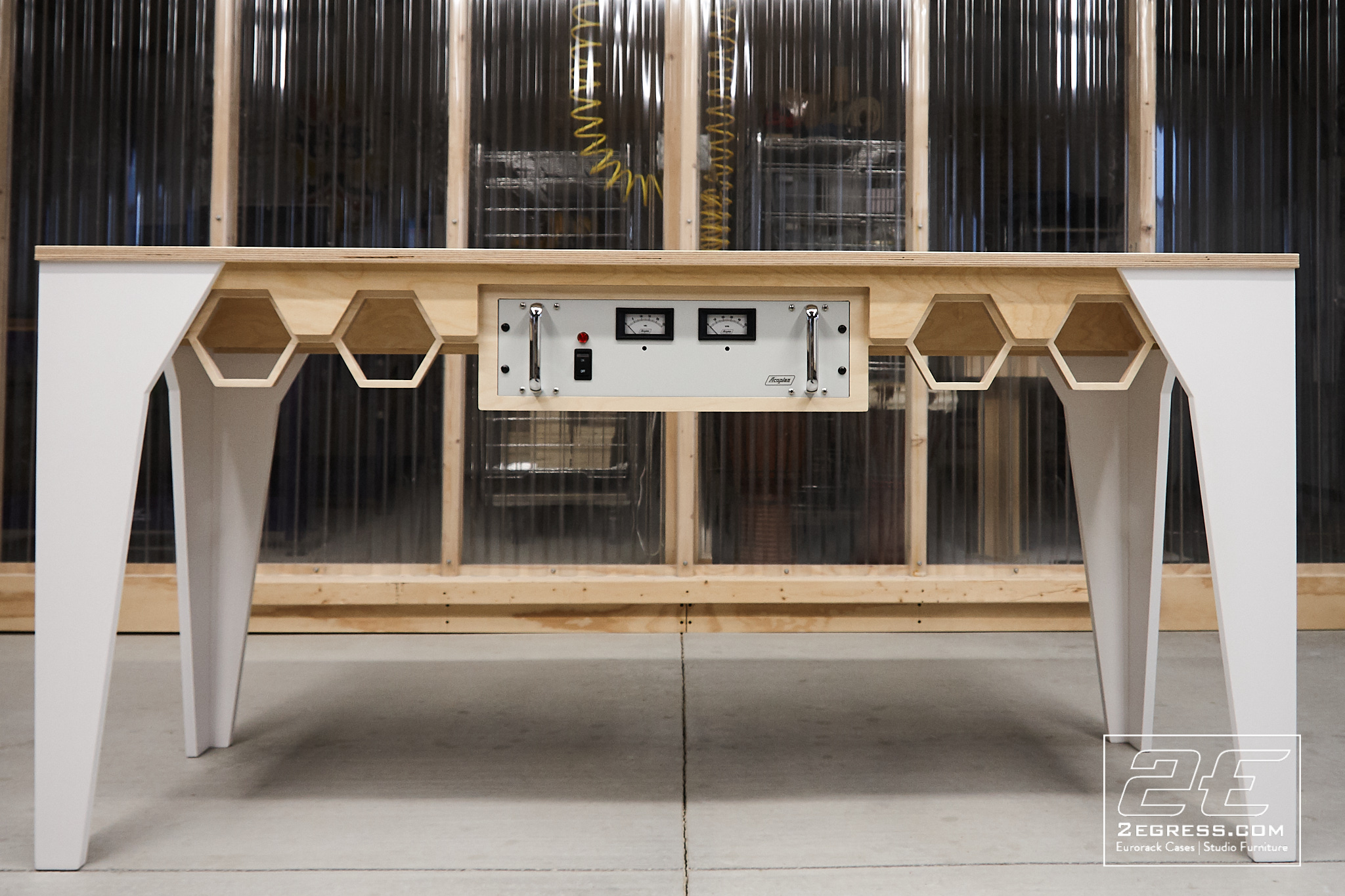

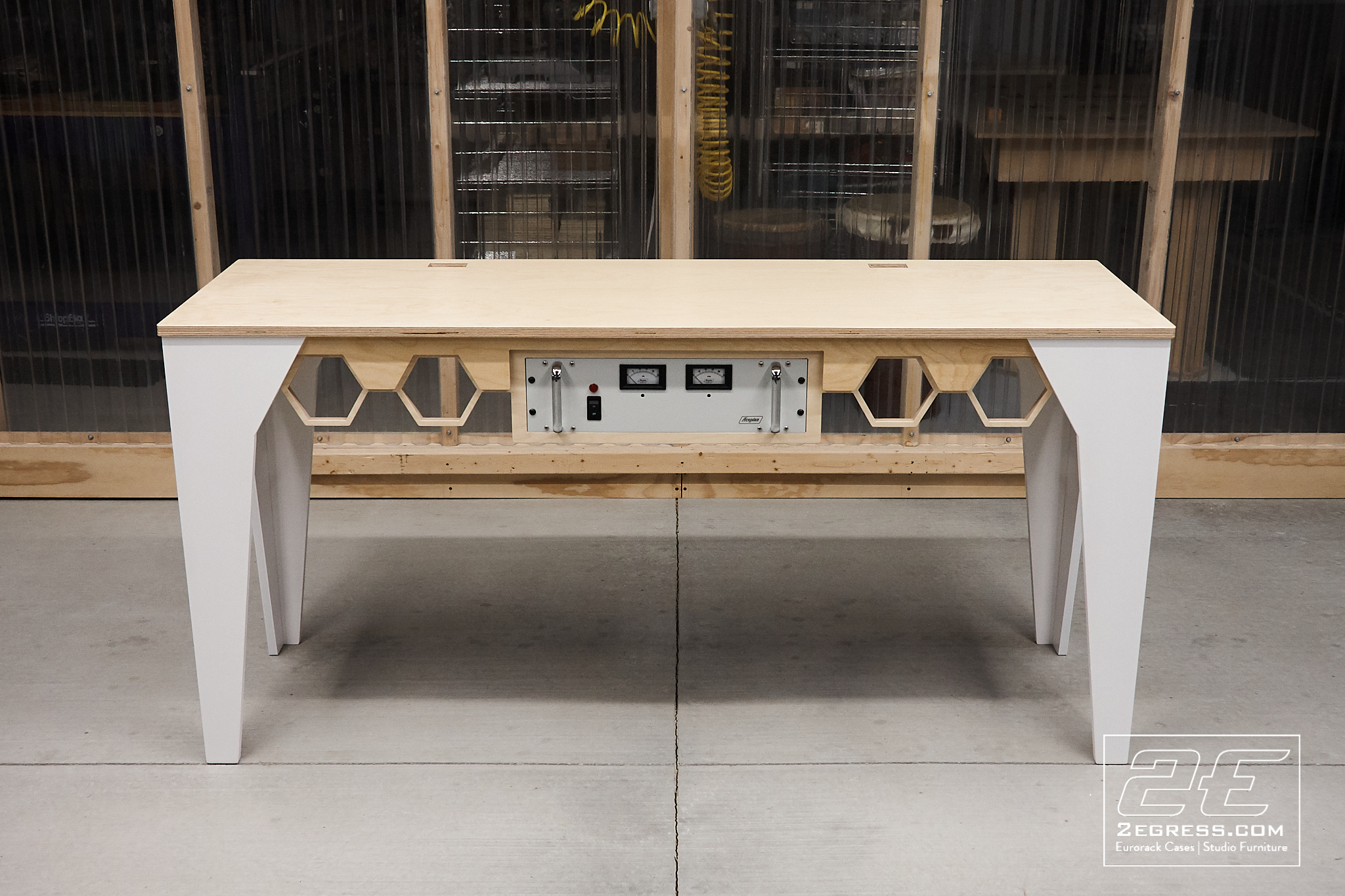

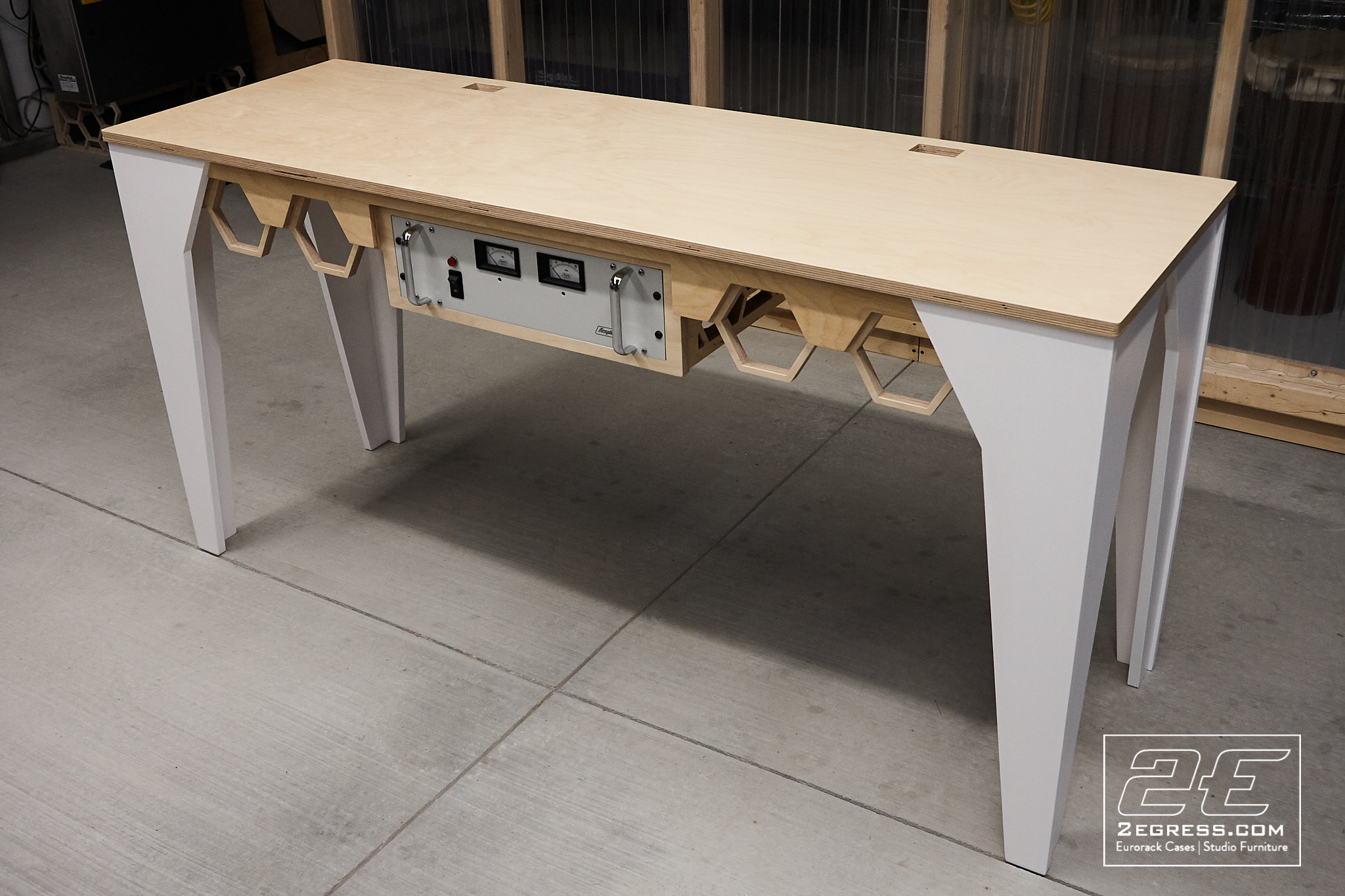

The Acopian power supply is fitted neatly in a hexagon shape design “Power station” enclosure.
The hexagon shapes are brought forward to allow patch cables to hang over for closer reach.
Saturn eurorack case custom built for Andrew Huang.
Width size (in):
168HP
Double* (71L X 24W X 30H)
*LTL freight only.
Depths top to bottom (mm):
72, 97, 123, 148, 92, 70.5, 70.5
Request a custom order and have something made just for you.

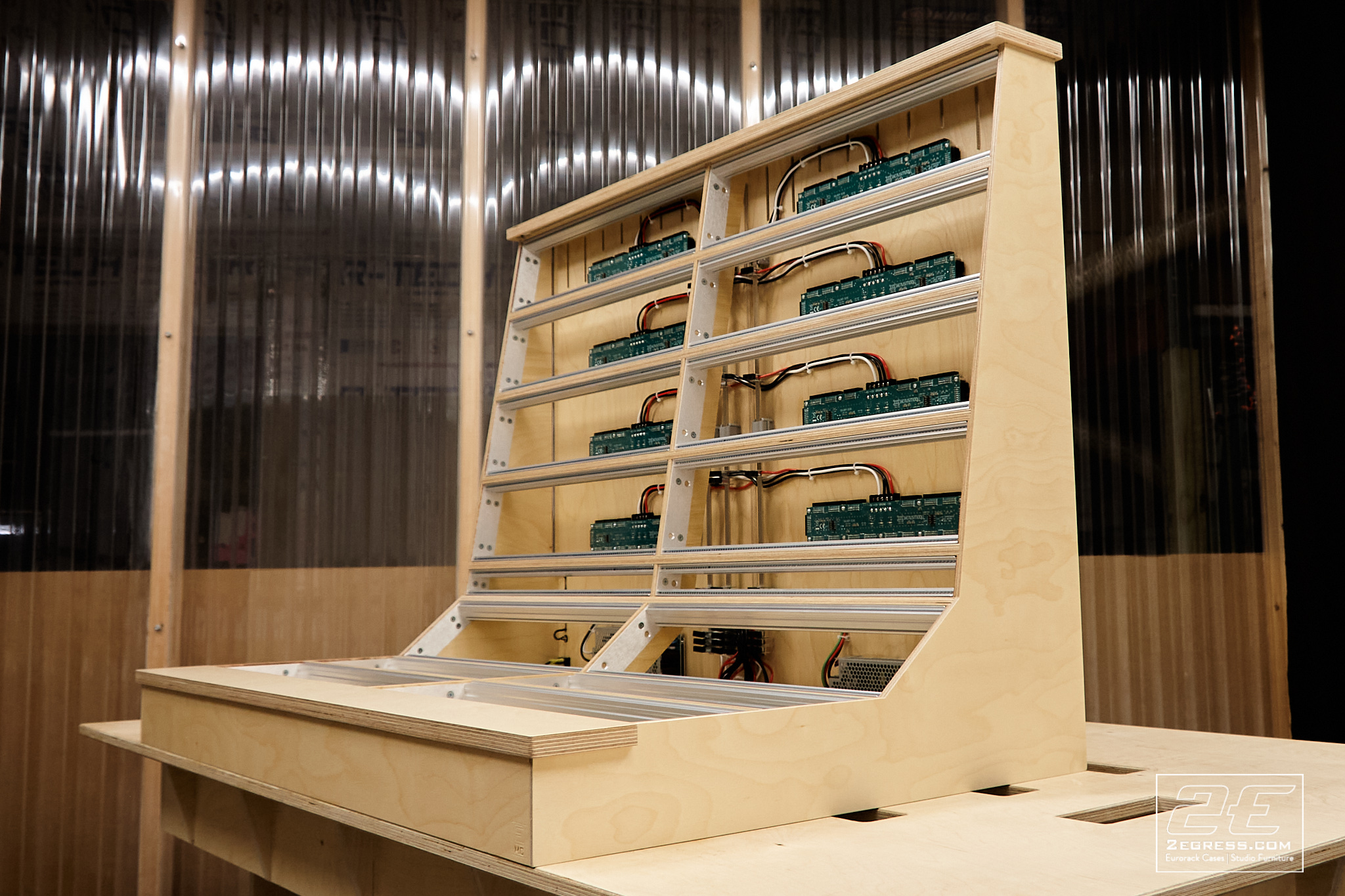

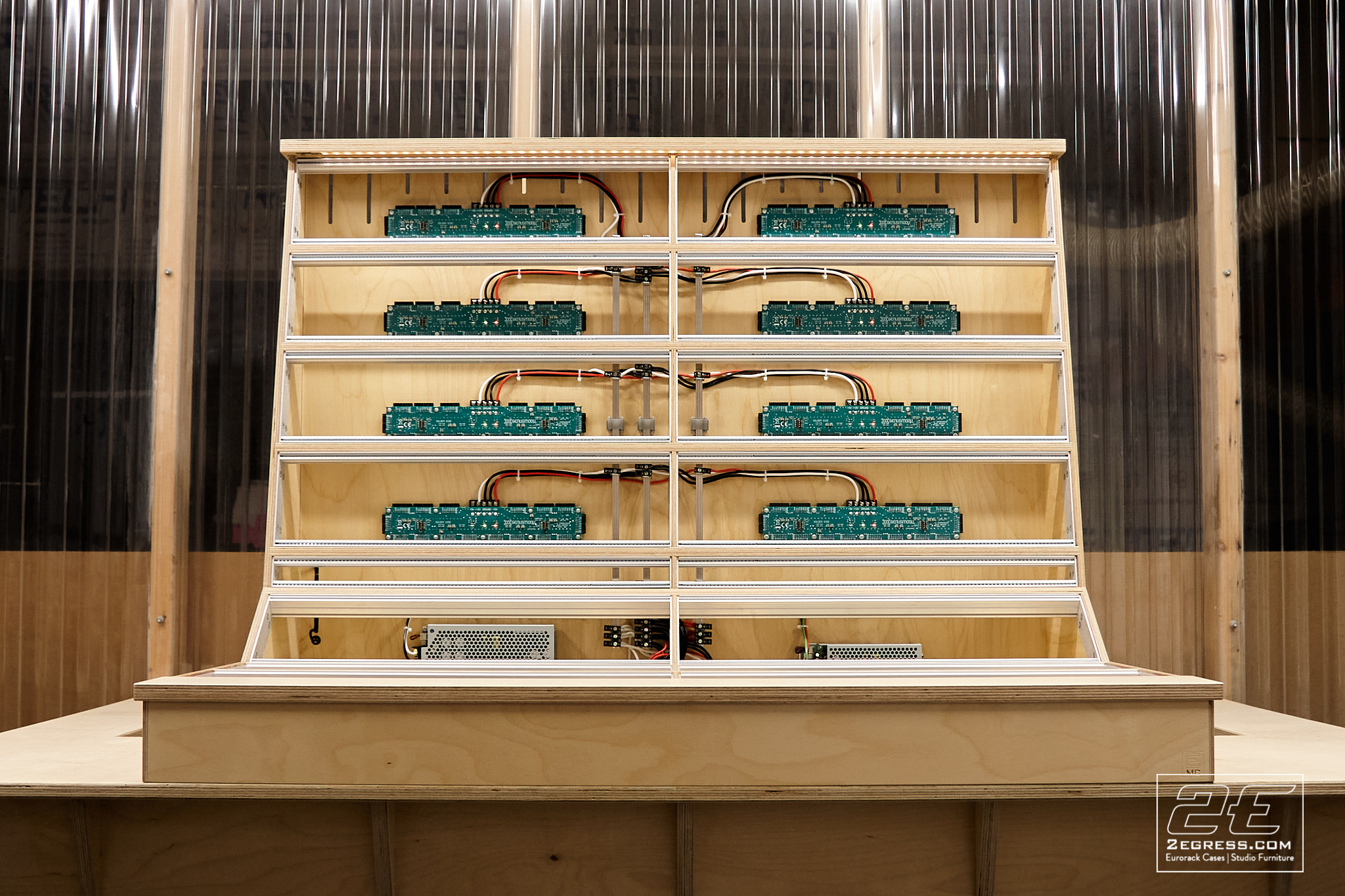

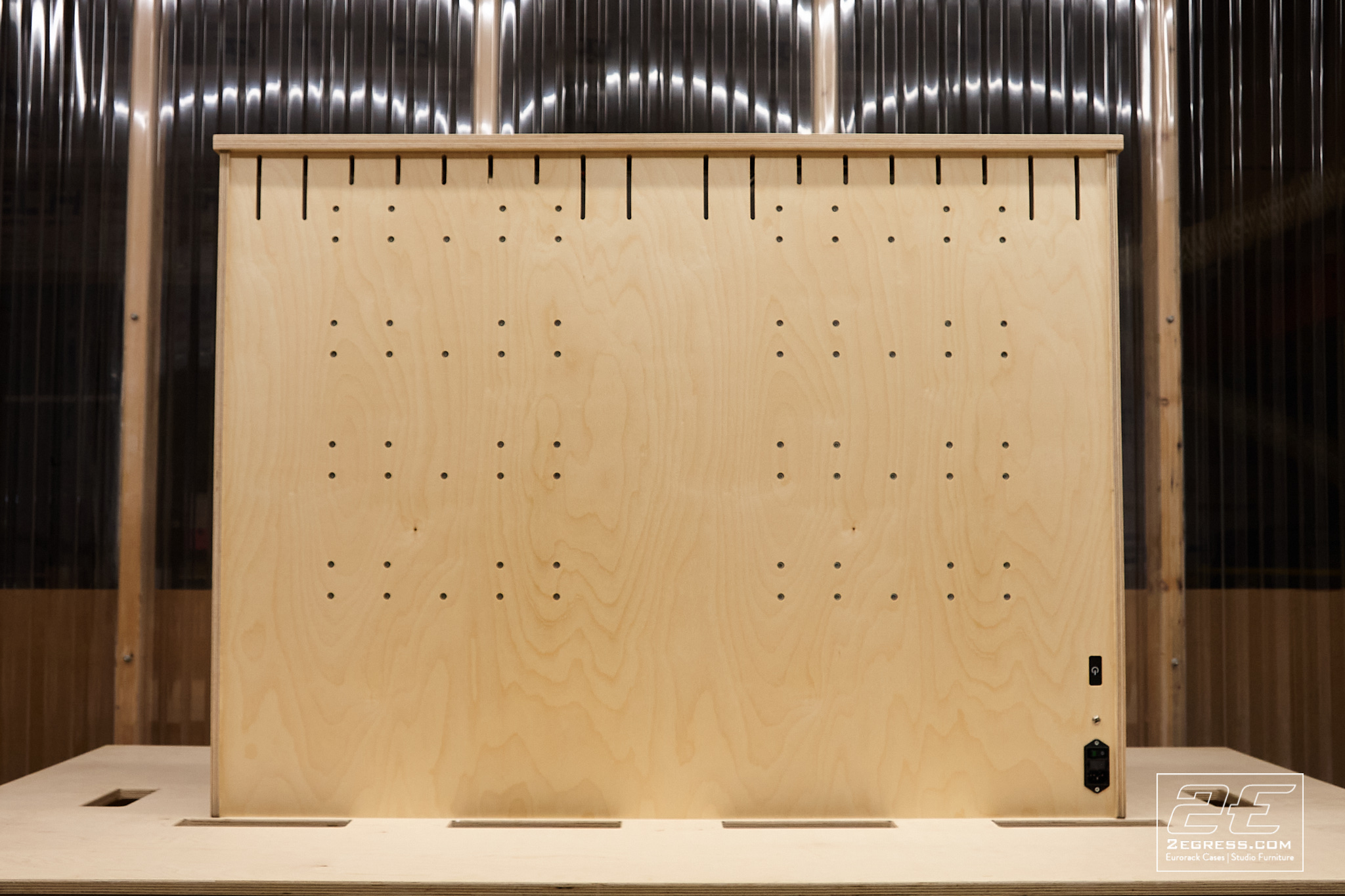

The Star of Jupiter!
It is equipped with Genus Modu low impedance busboards and powered with Daitron low noise AC/DC power supplies.
Width size (in):
104HP
Double* (44L X 30W X 33H)
*LTL freight only.
Depths top to bottom (mm):
72, 97, 110, 149, 181, 93, 47, 47
Request a custom order and have something made just for you.
The Engerized Eurorack case with a gentle slope!
Barnstormer eurorack case custom built for John Loffink at Genus Modu.
Width size (in):
104HP
Double* (44L X 26.5W X 39.5H)
*LTL freight only.
Depths top to bottom (mm):
148, 136, 136, 144, 212, 200, 98, 83
Request a custom order and have something made just for you.

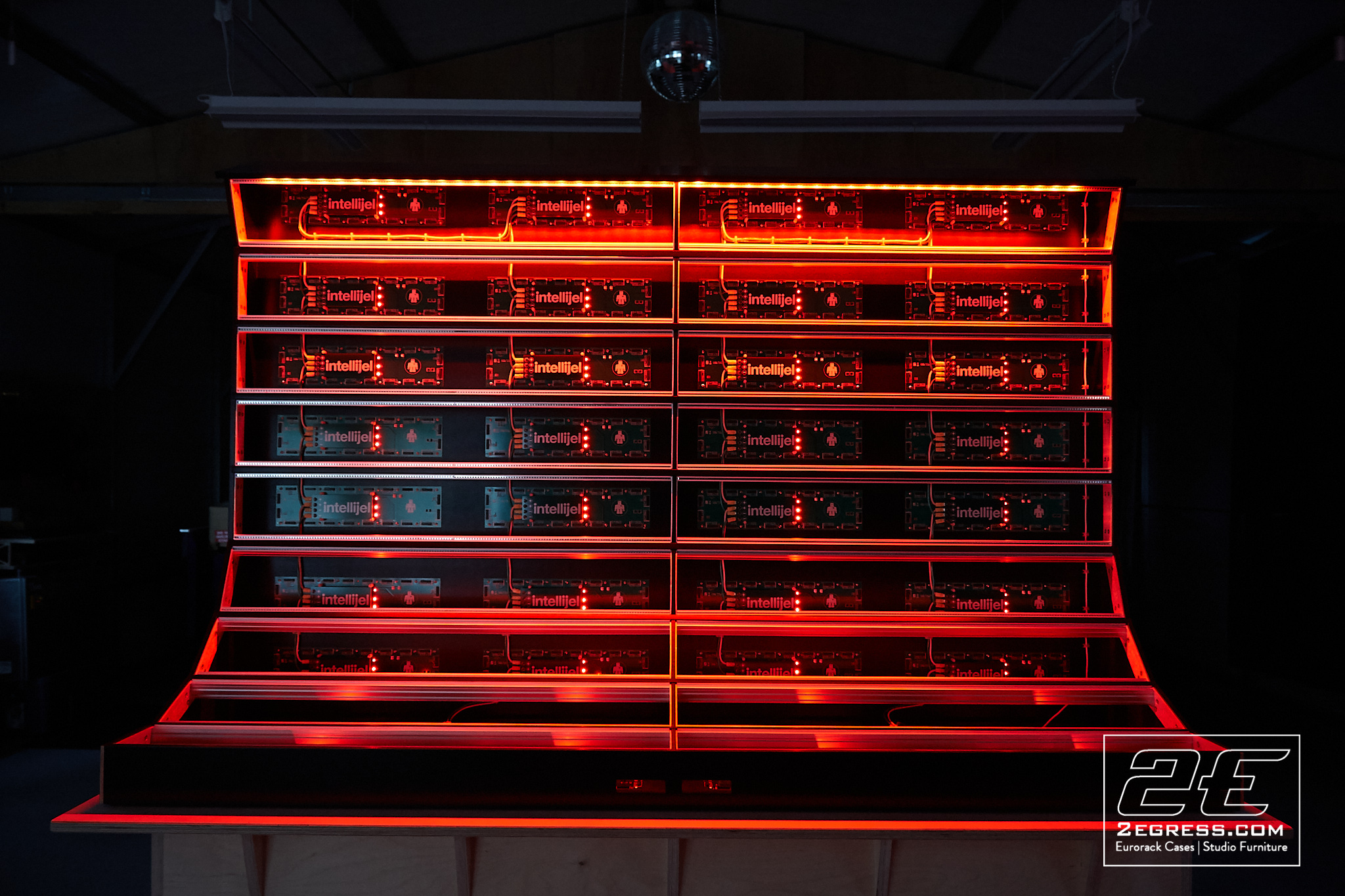

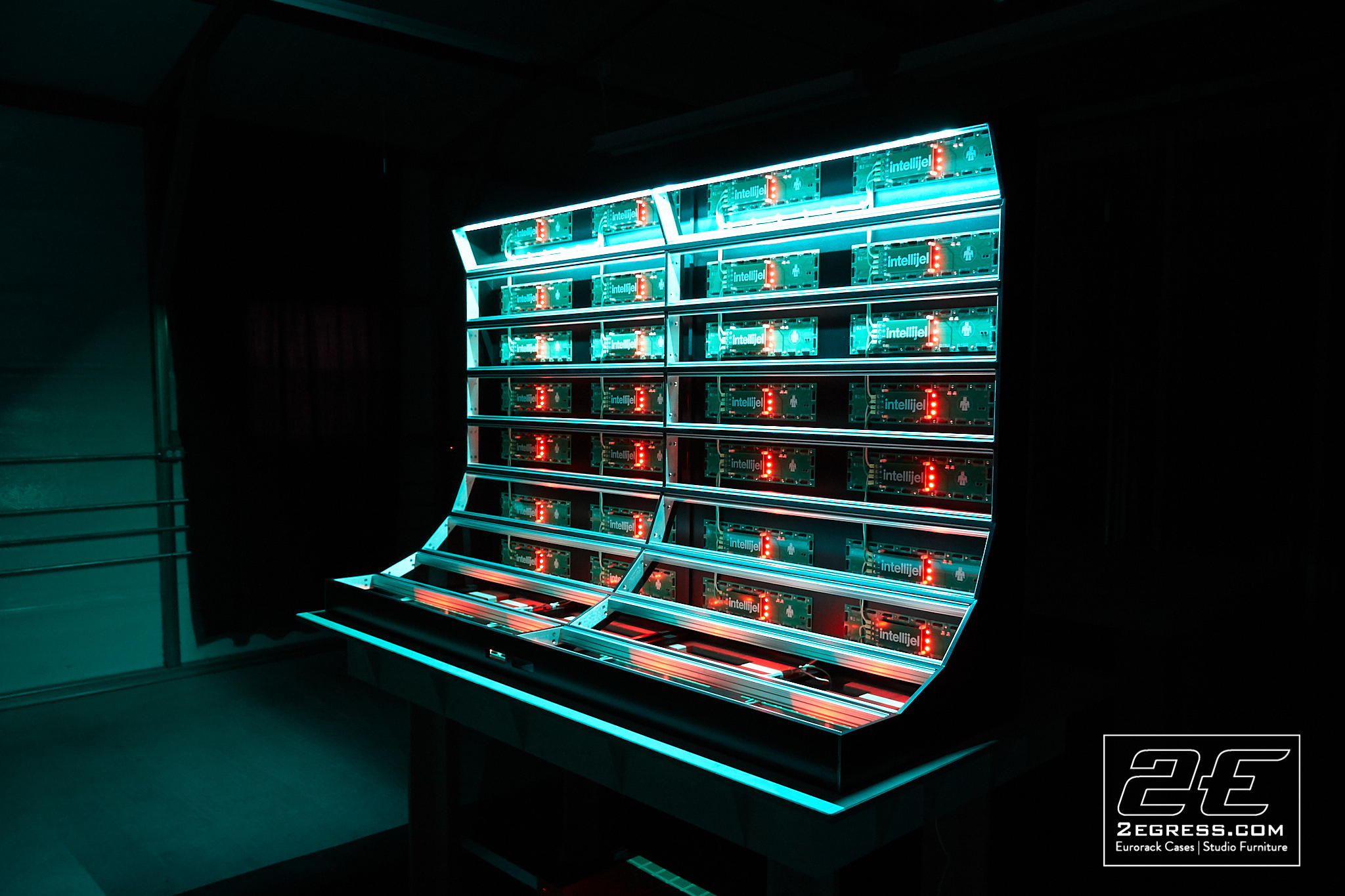

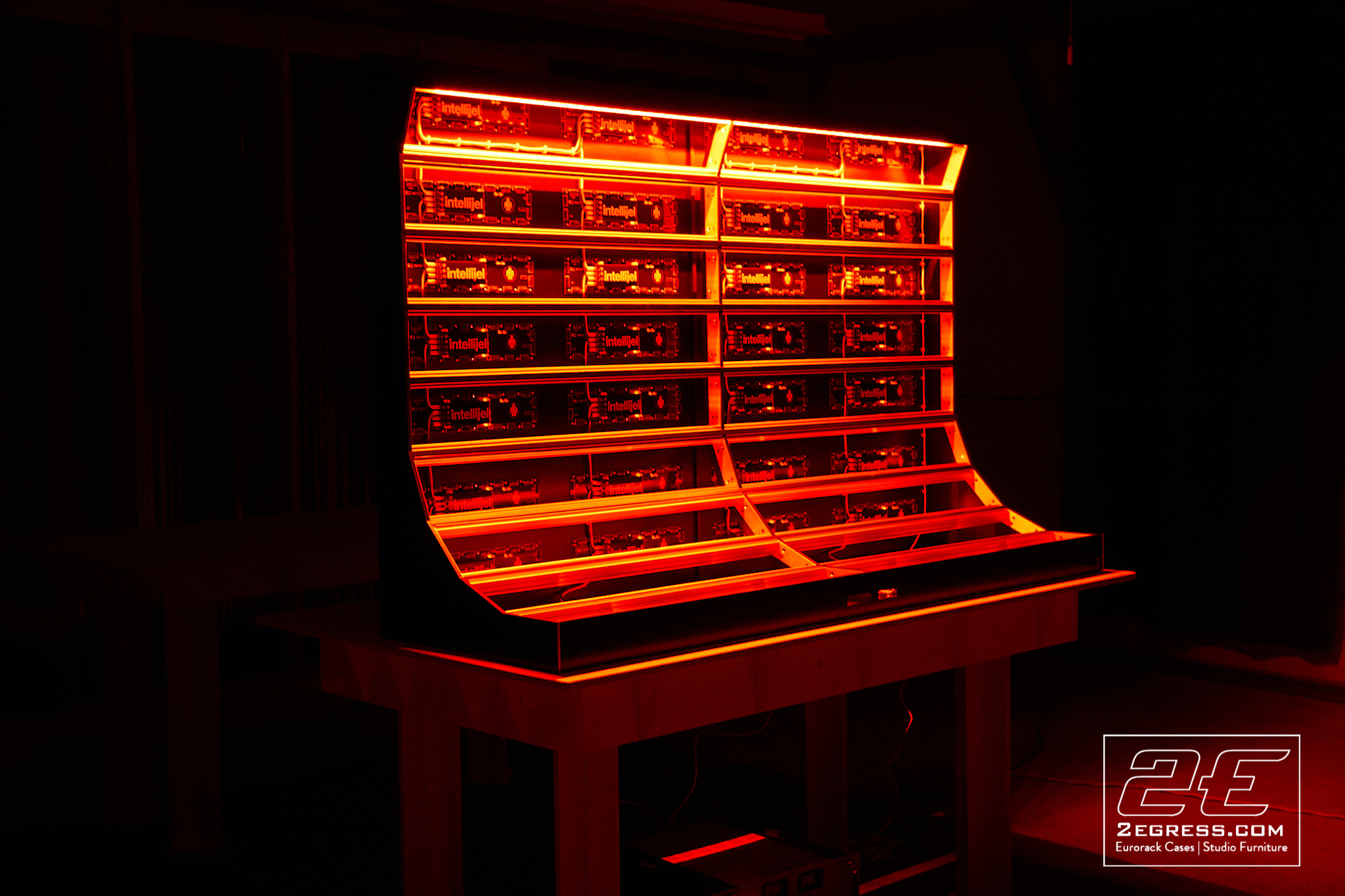

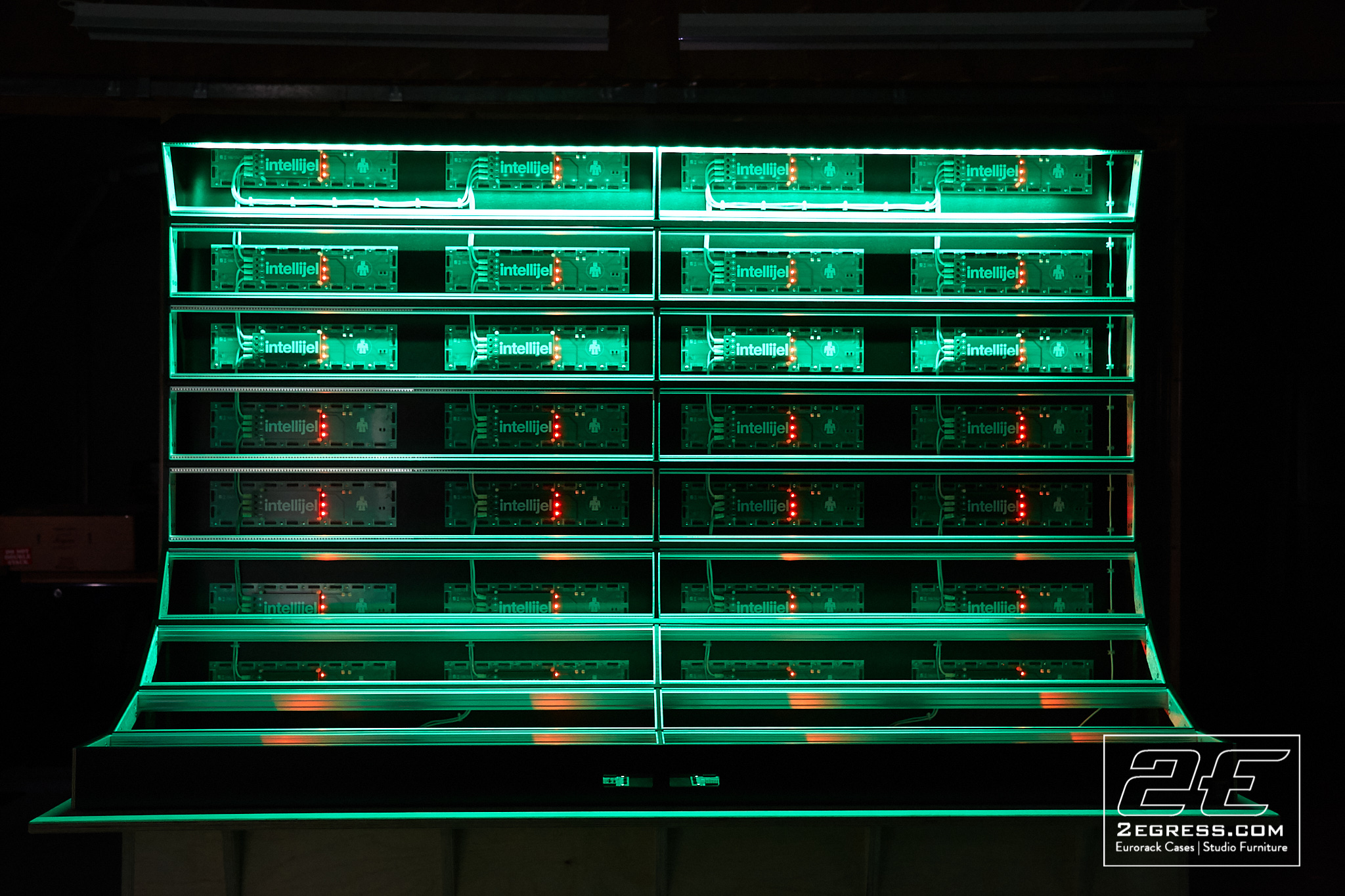

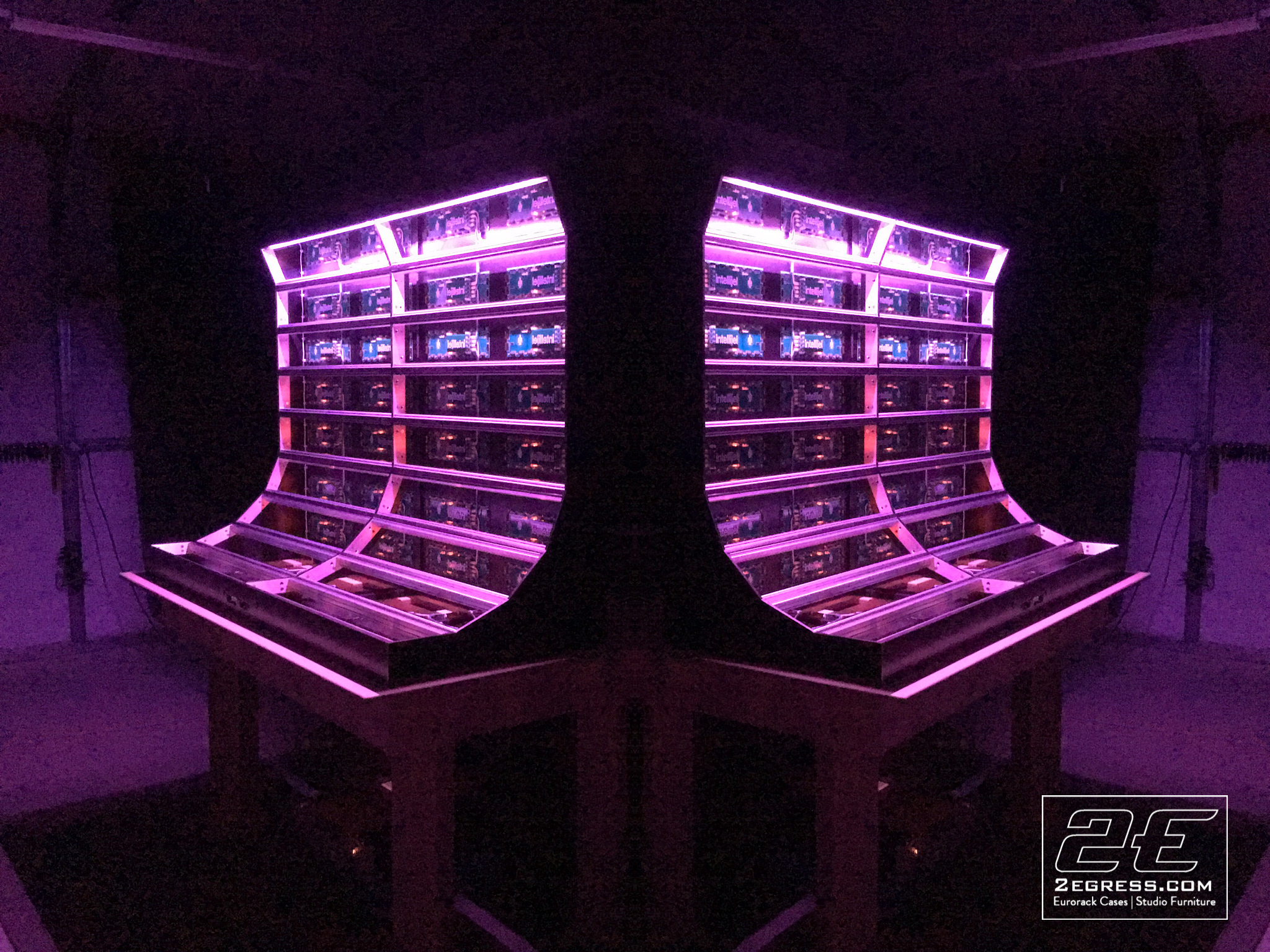

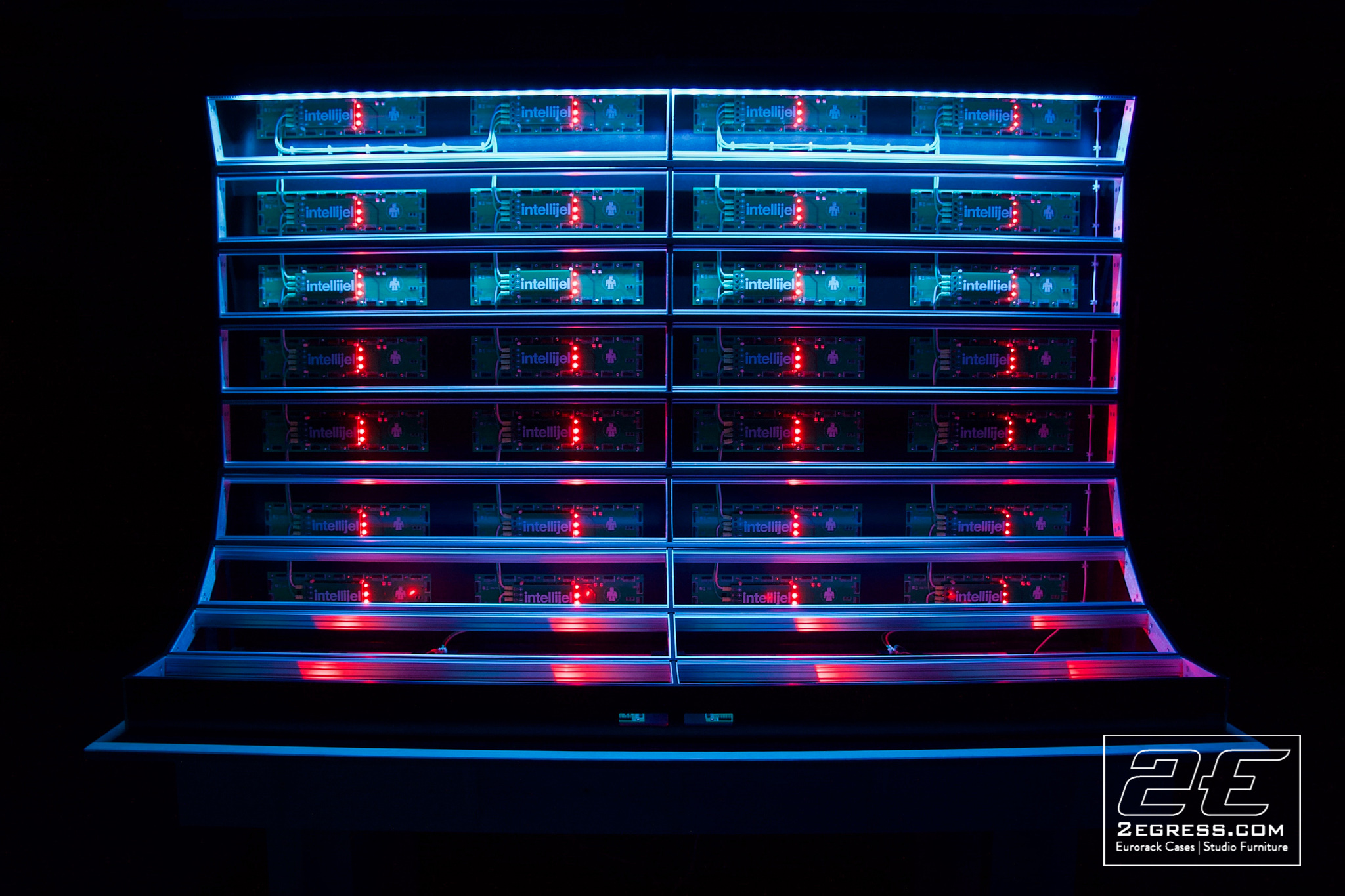

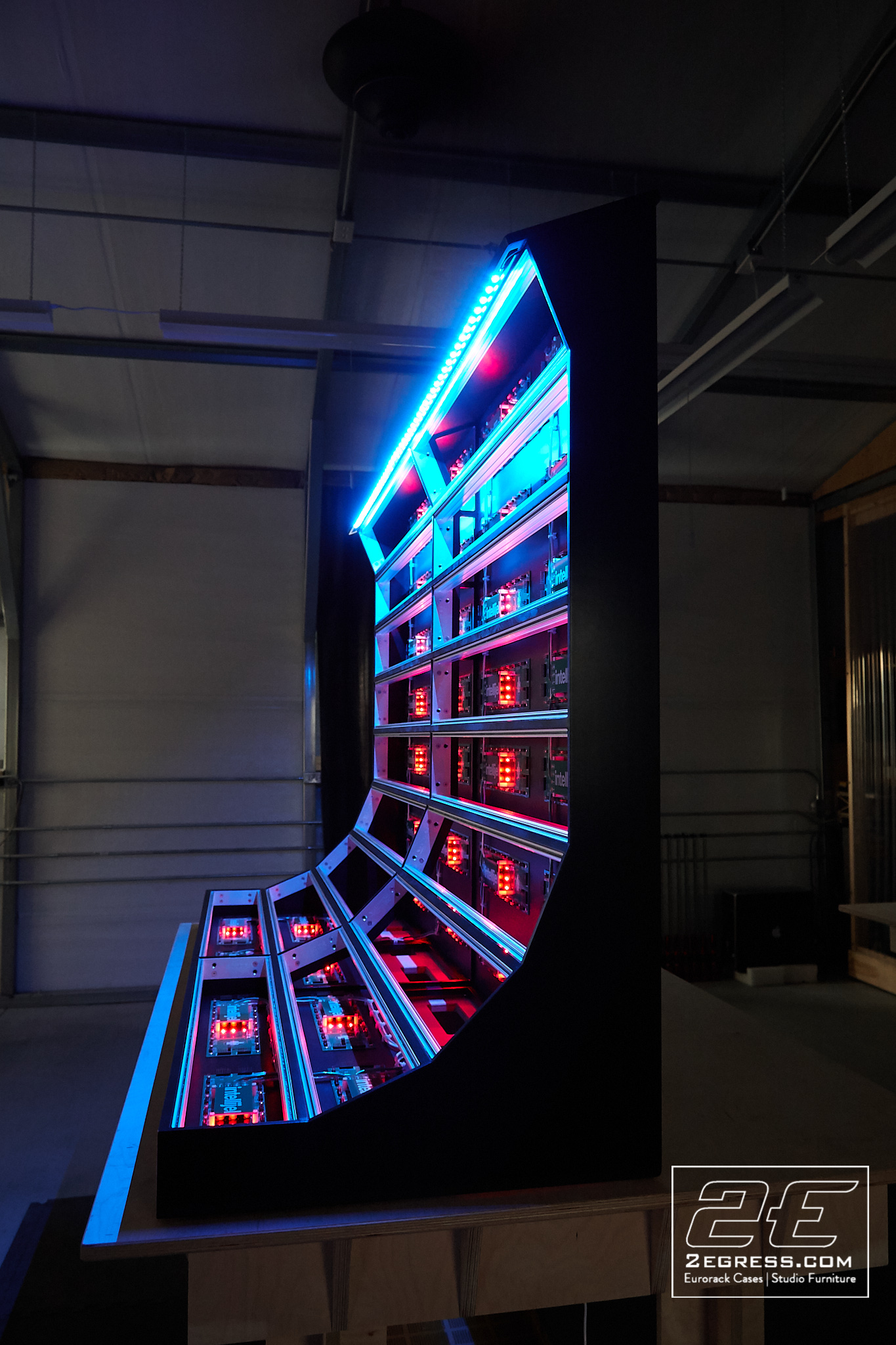

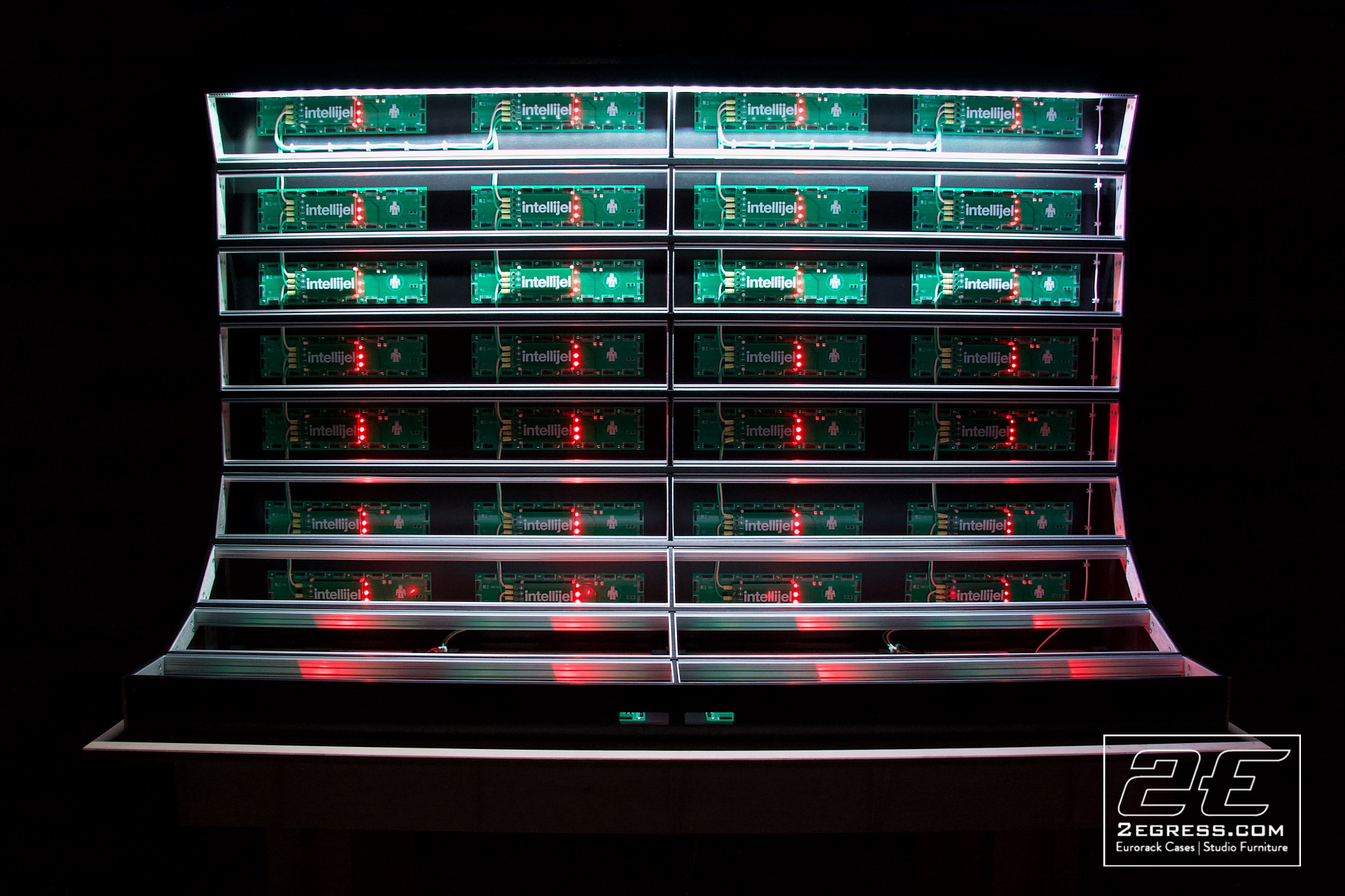

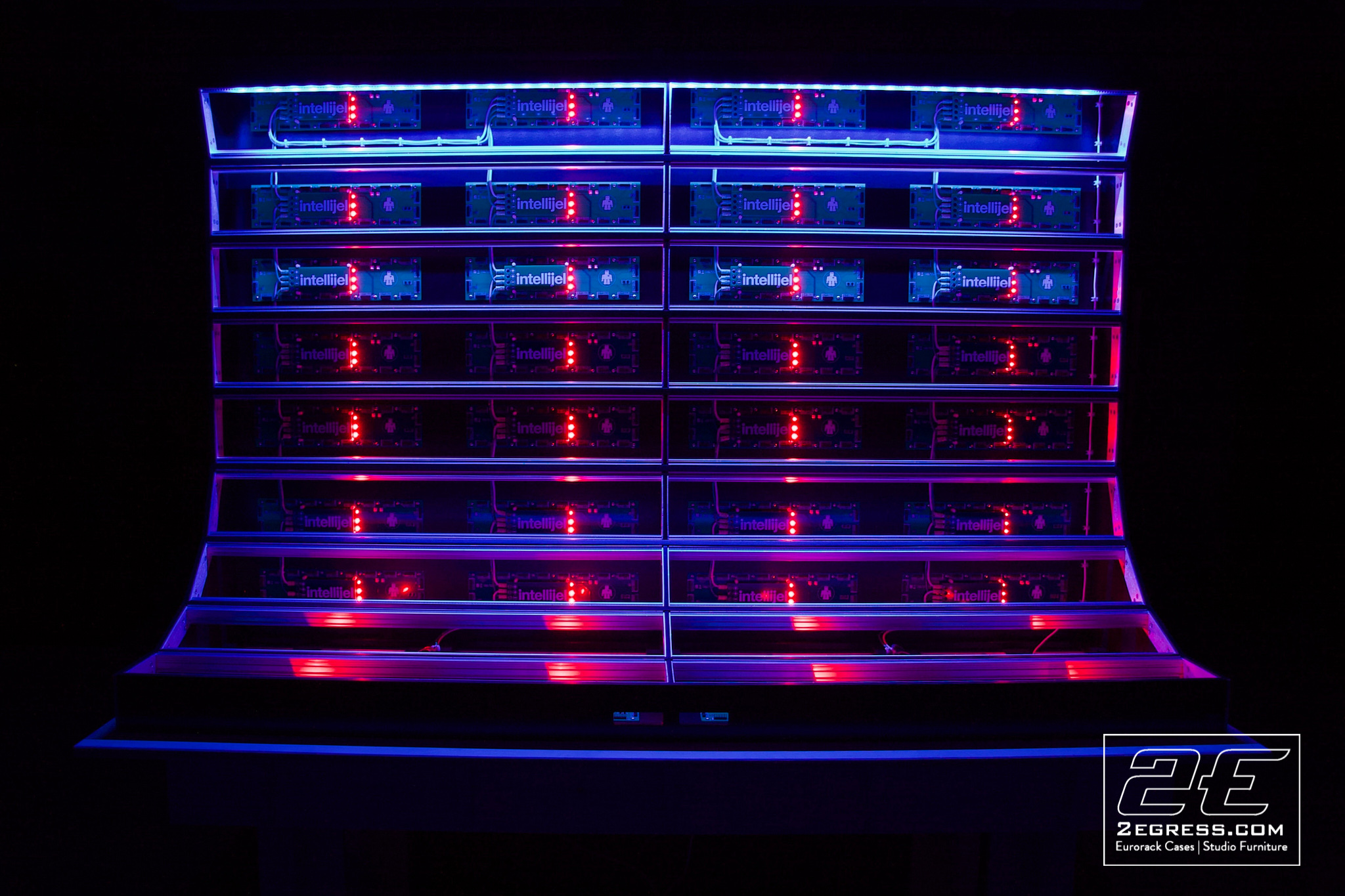

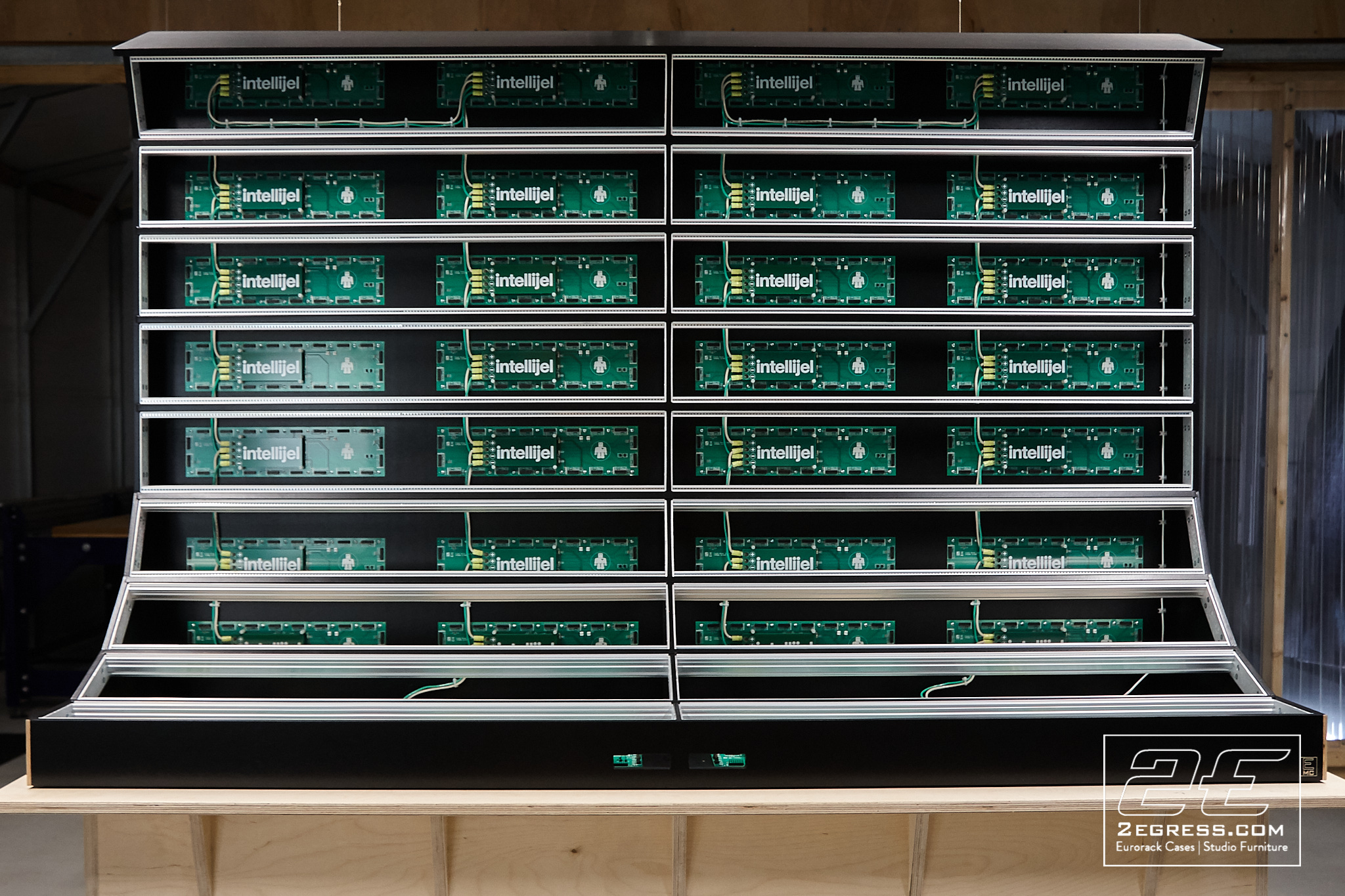

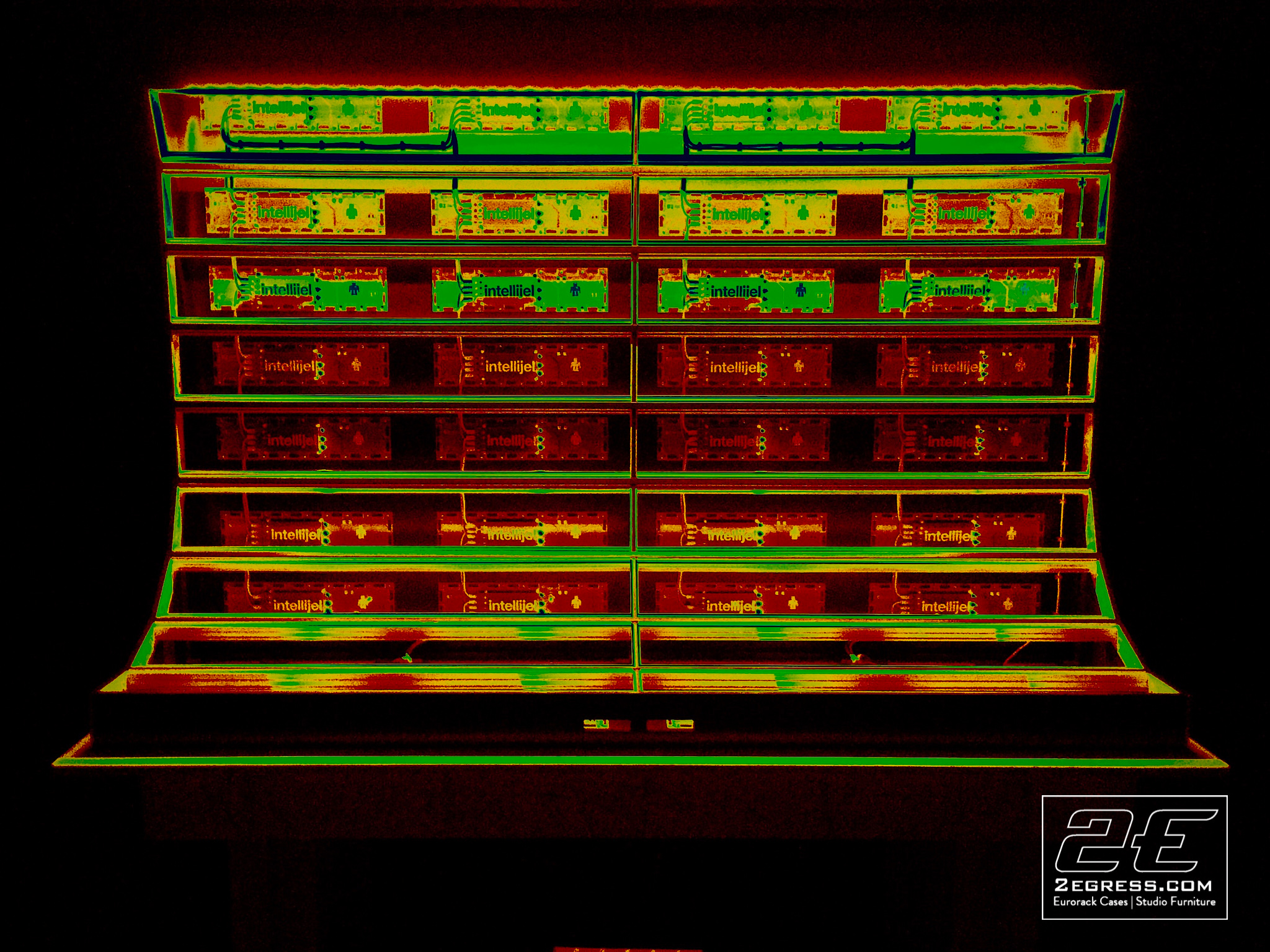

Beauty, Grace and Elegance!
The 27U Black Swan.
Powered with Daitron low noise AC/DC power supplies.
“The build quality is outstanding.
Five Stars!"
Width size (in):
168HP
Double* (71L X 22W X 40.4H)
*LTL freight only.
Depths top to bottom (mm):
100, 92, 92, 92, 104, 183, 78, 71
Request a custom order and have something made just for you.

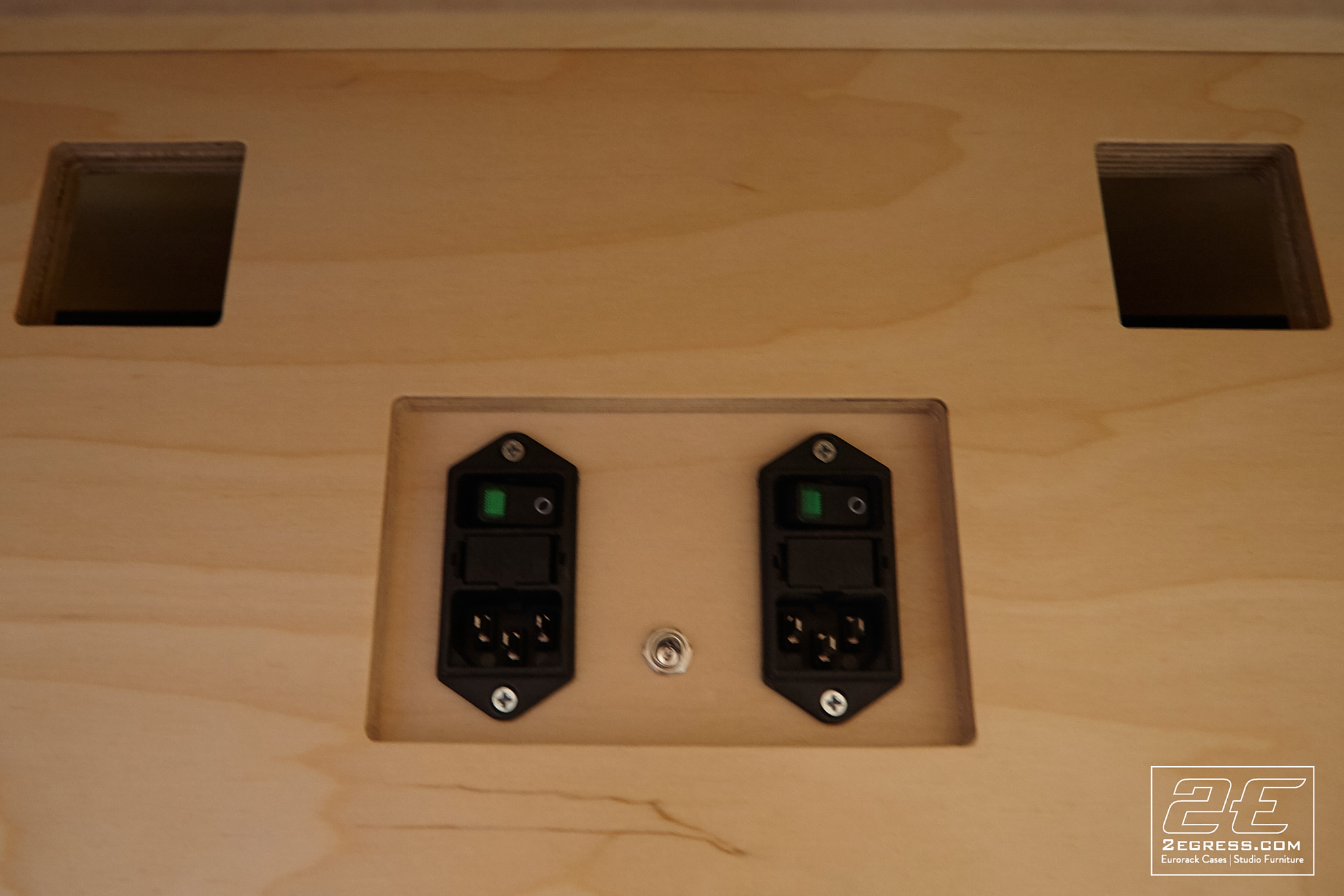

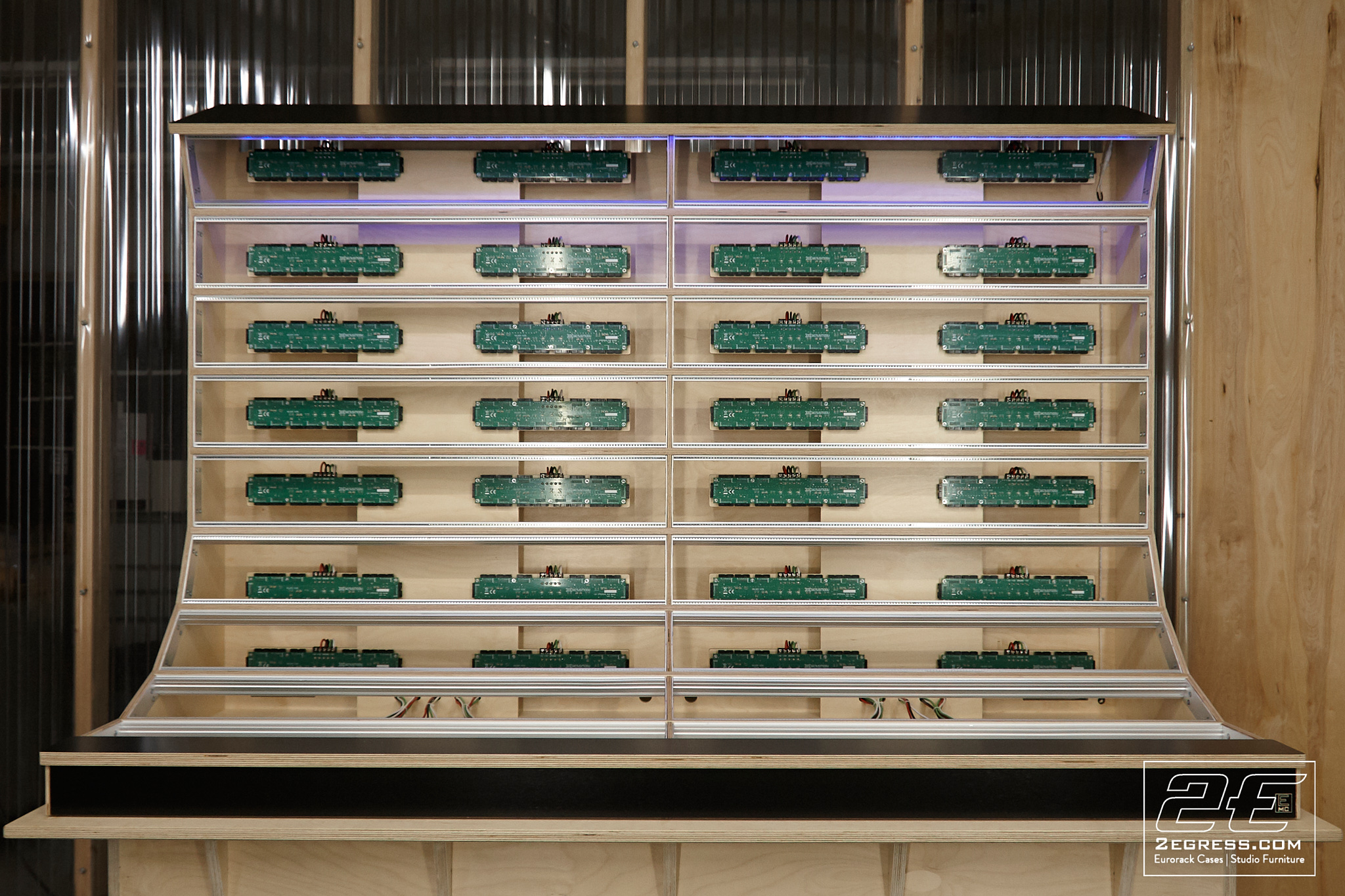

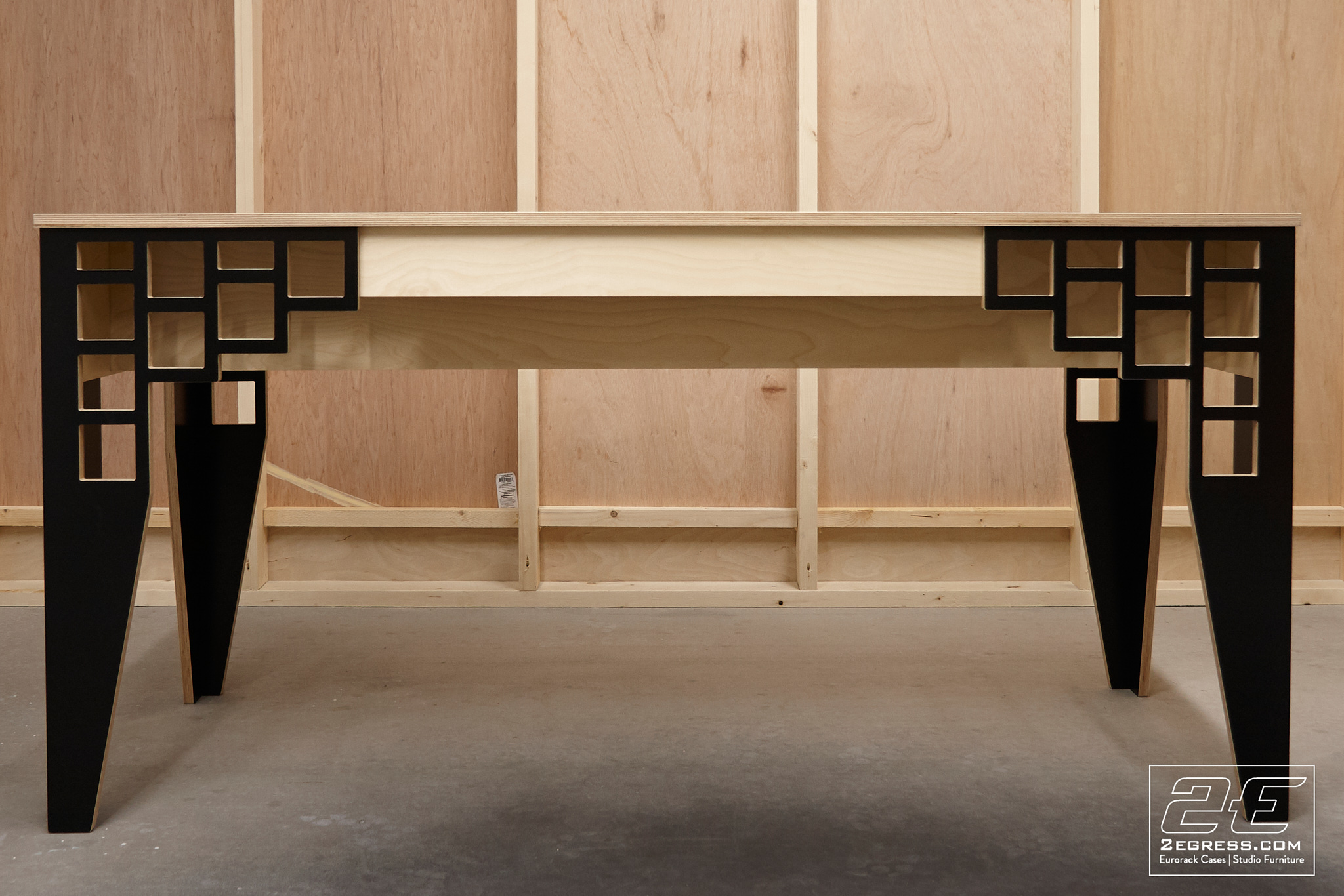

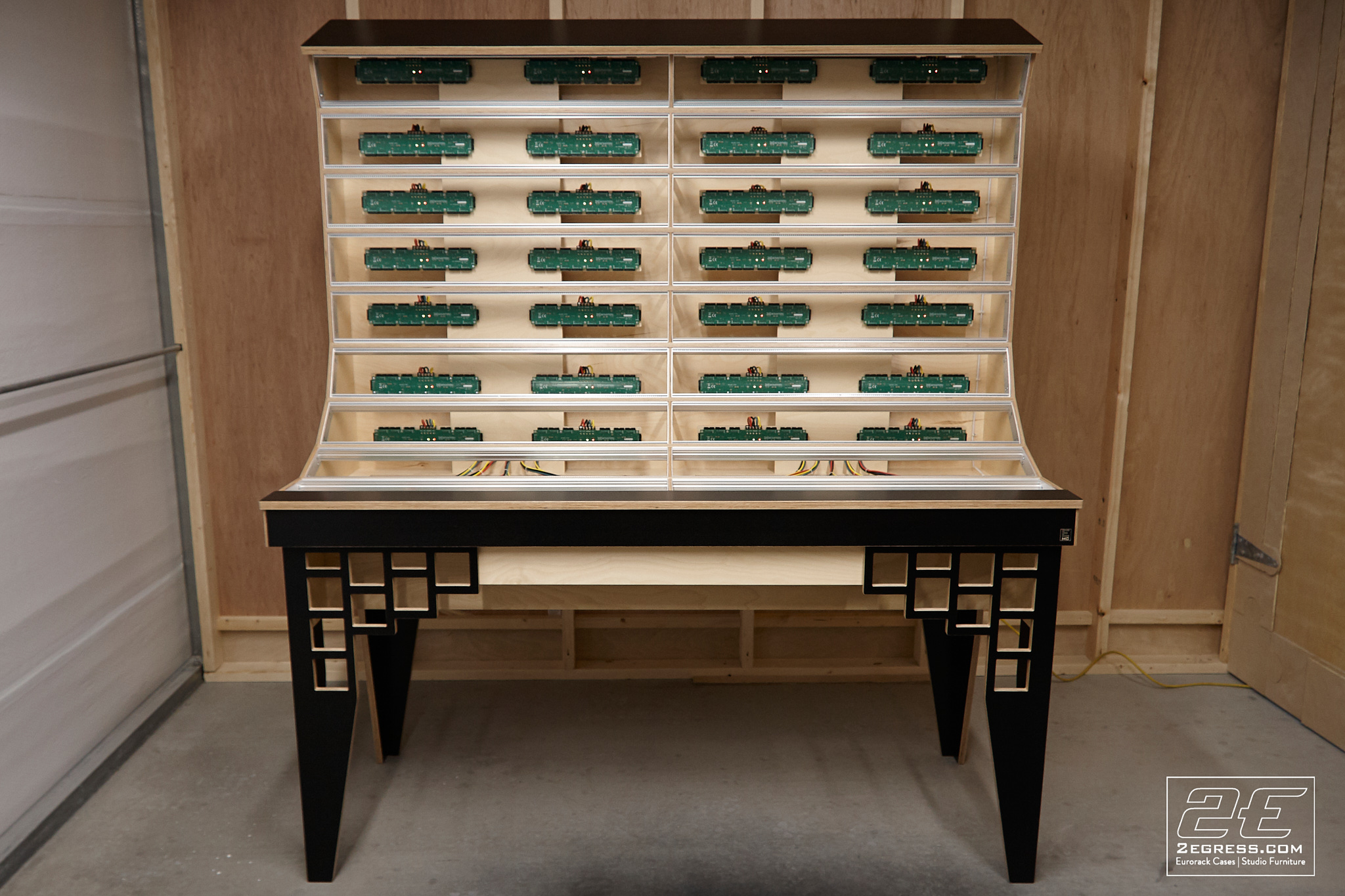

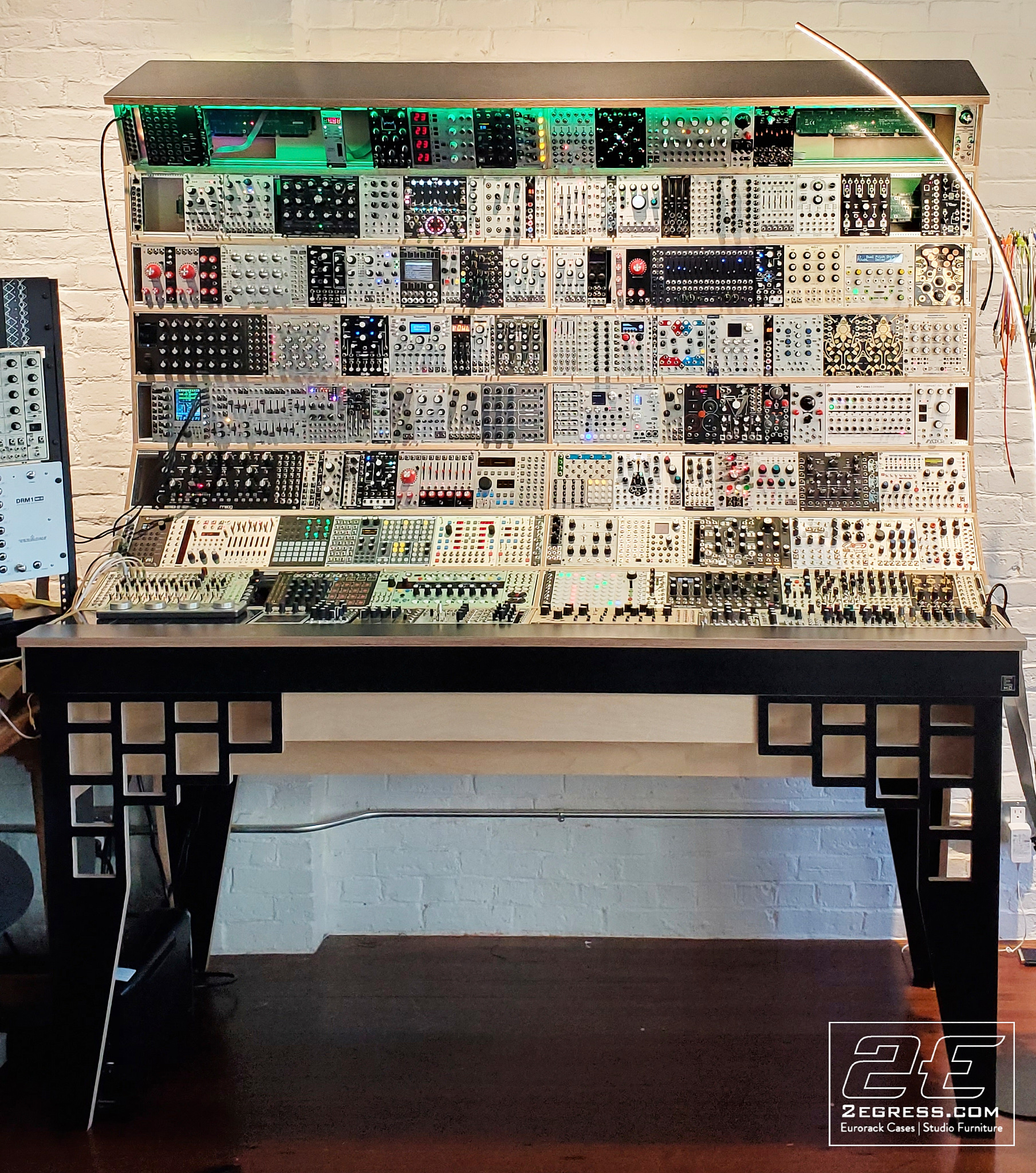

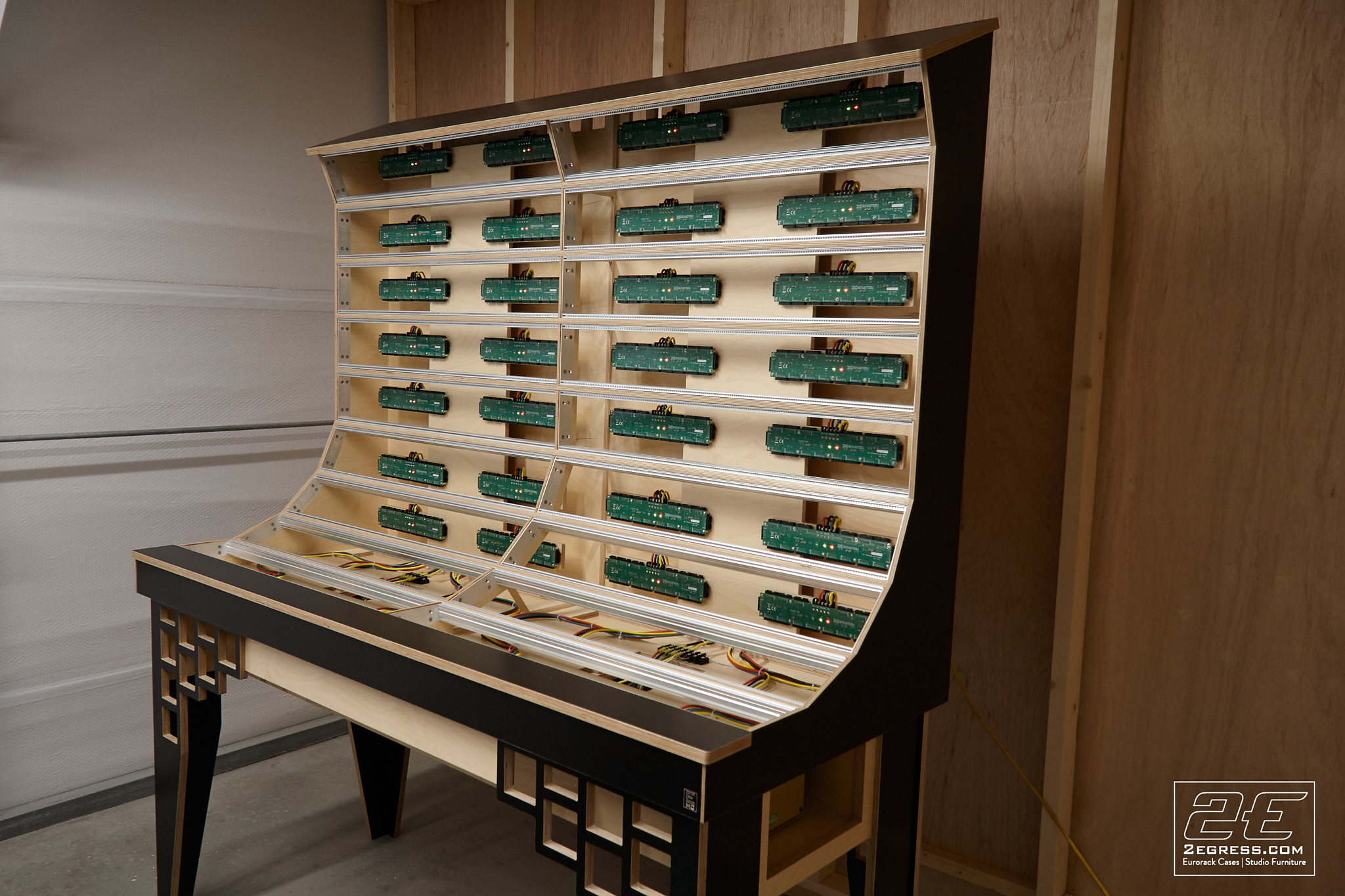

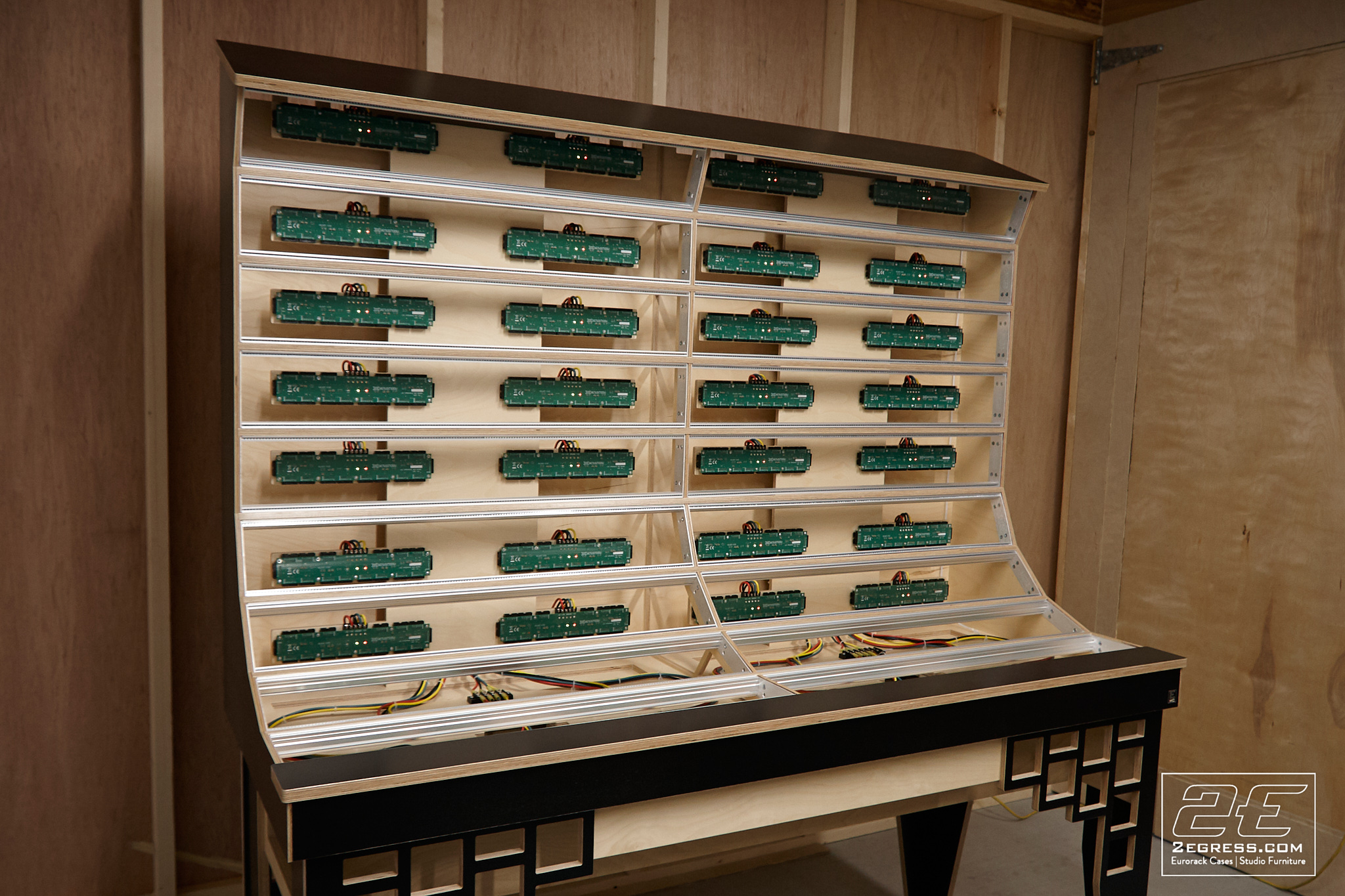

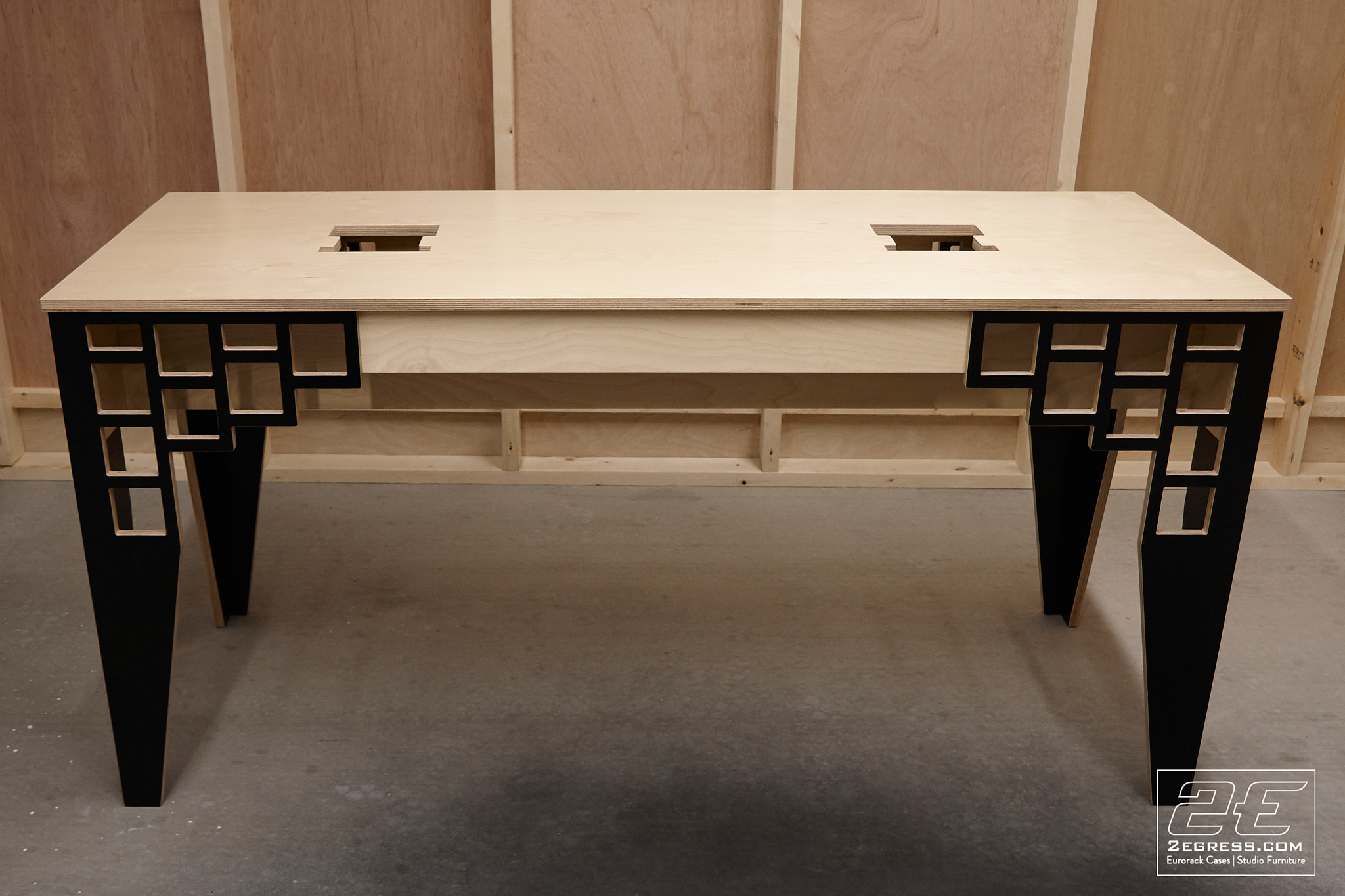

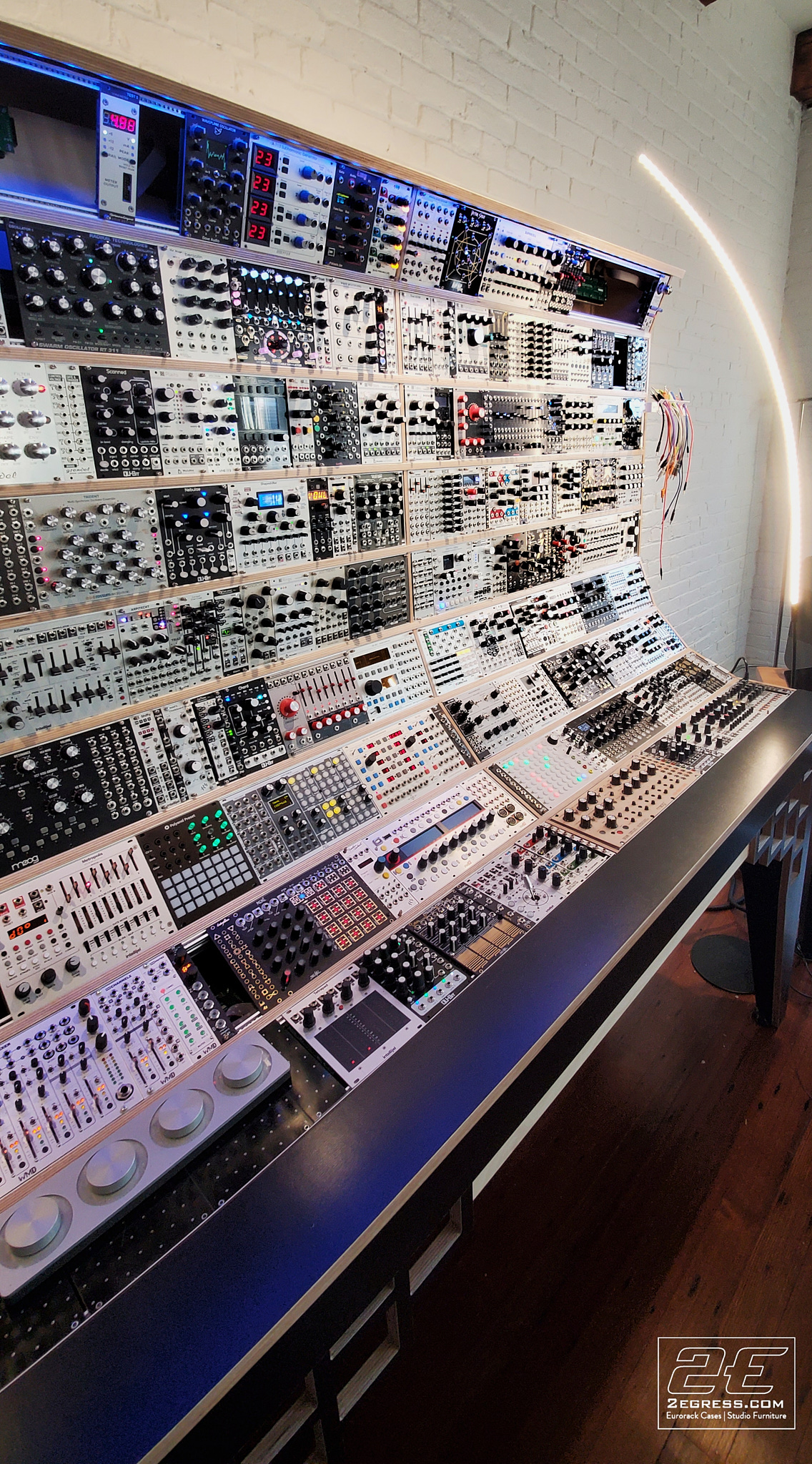

The 27U Gunslinger is loaded with LIBB and ready to go!

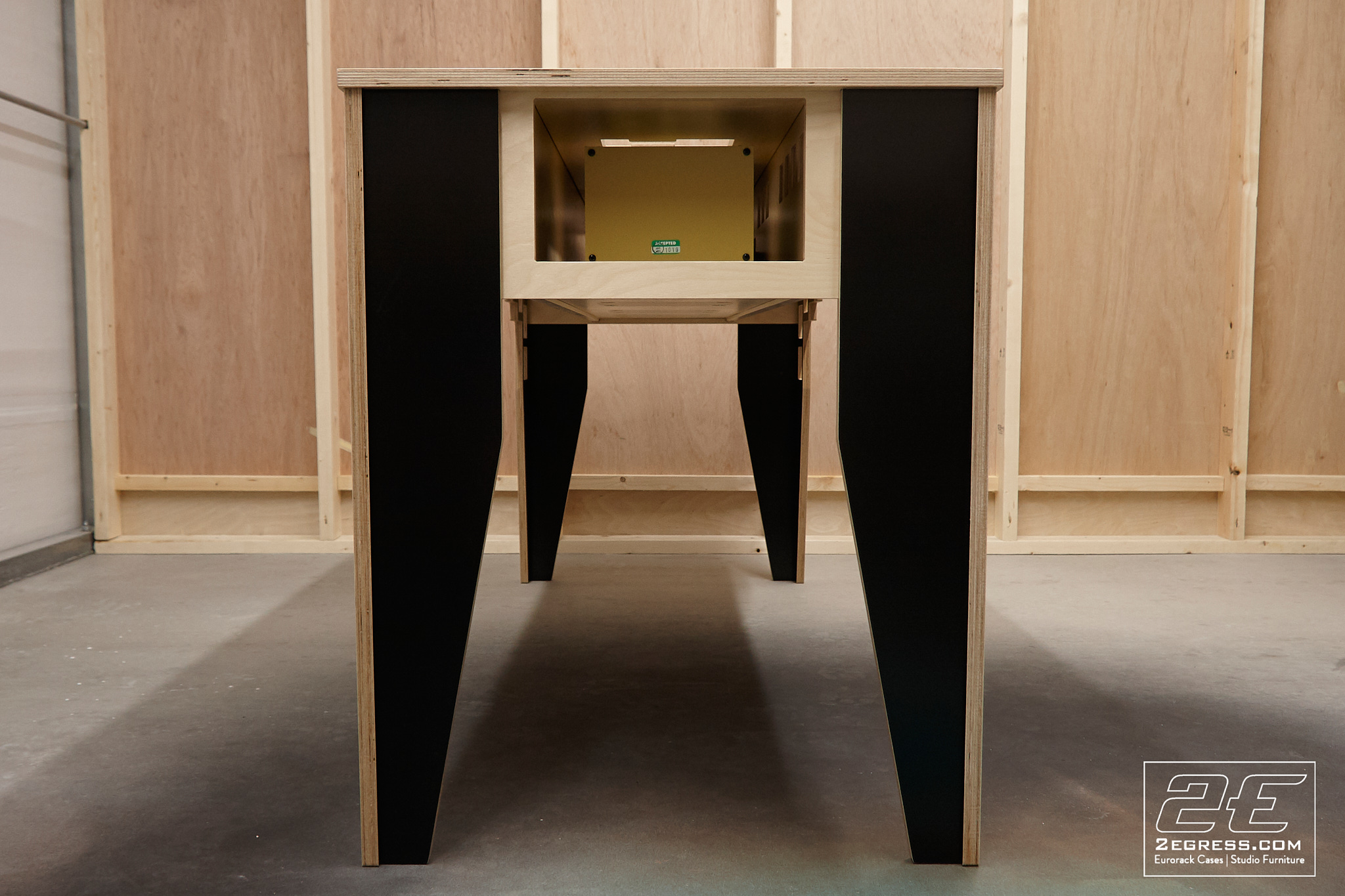

The exquisite “Power Station” houses four Acopian power supplies needed to exceed all power requirements for this large format case.
“It is built like high-end furniture, brillantly designed with so much care and thought, I cannot recommend him highly enough.”
David Forman
Width size (in):
168HP
Double* (71L X 27W X 47H)
*LTL freight only.
Depths top to bottom (mm):
100, 92, 92, 92, 92, 105, 177.5, 77, 71
Request a custom order and have something made just for you.

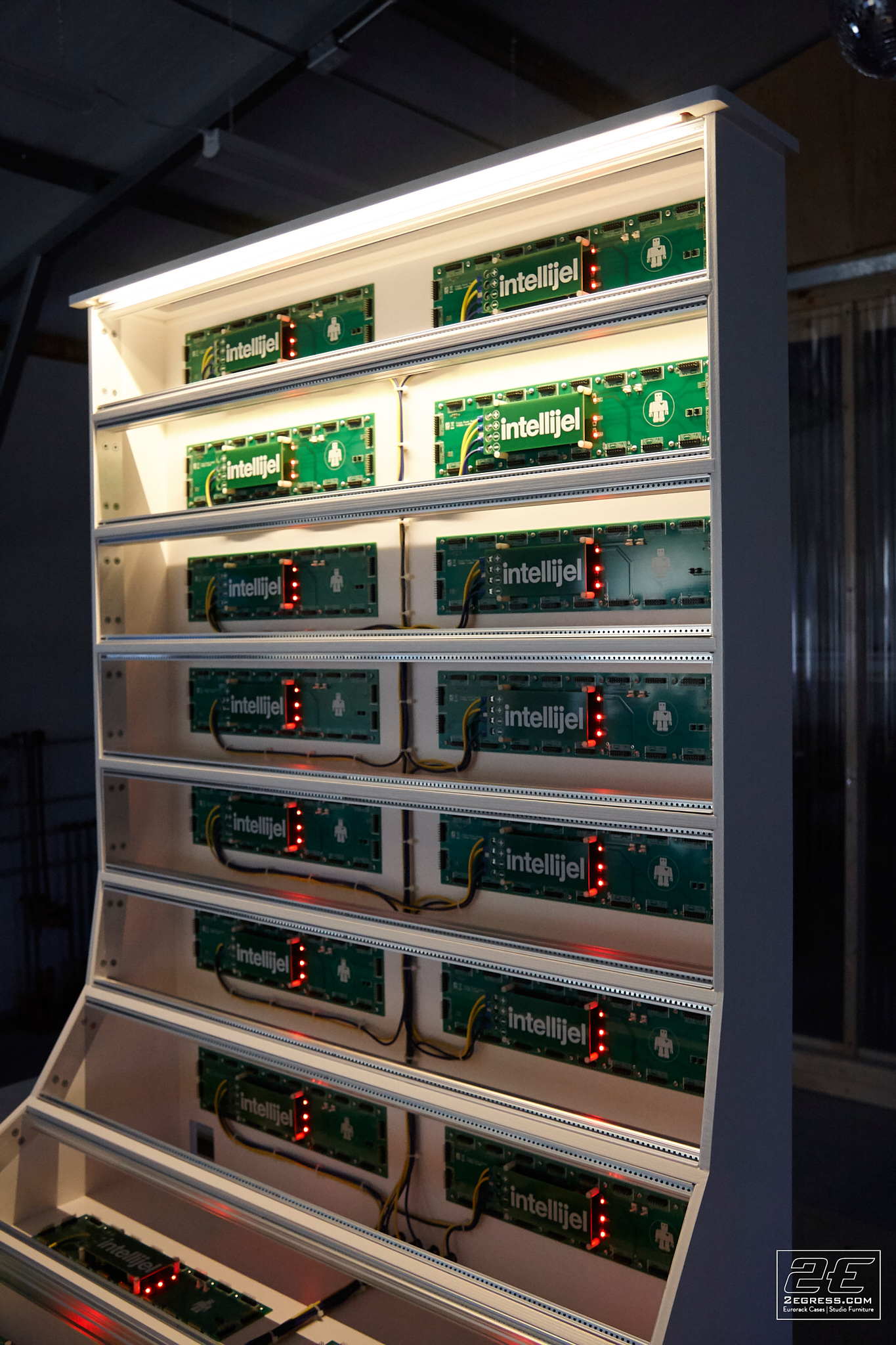

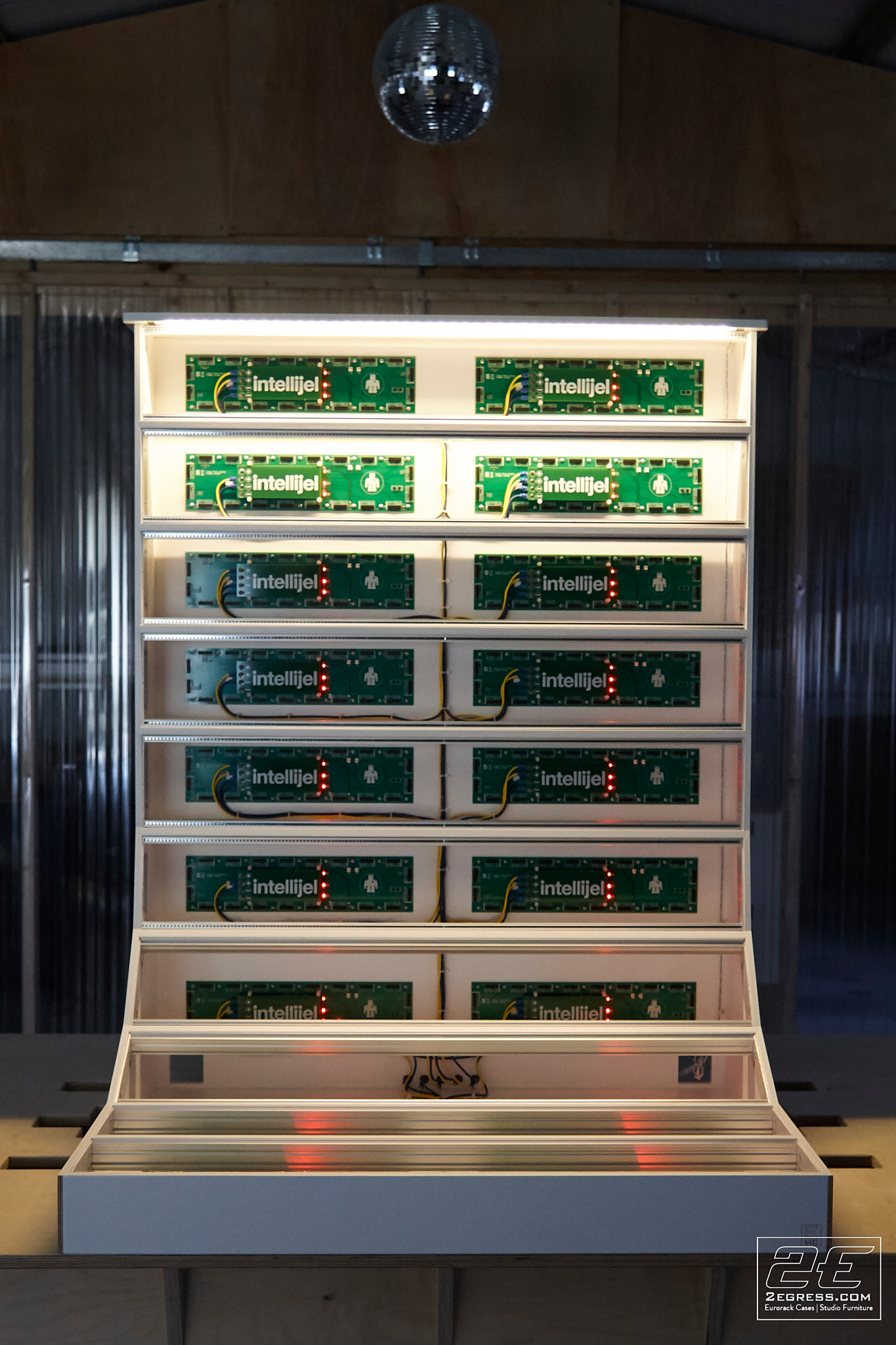

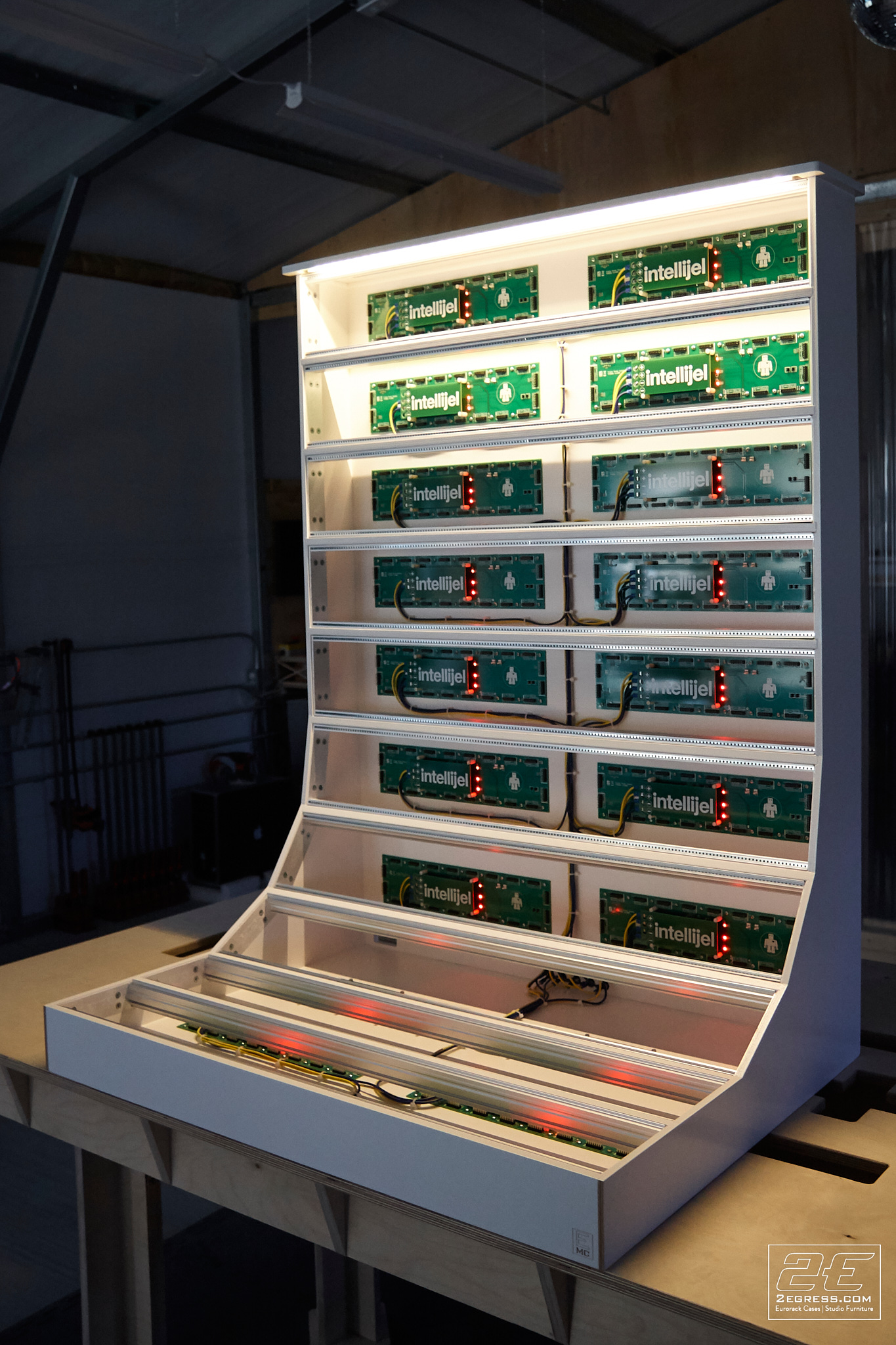

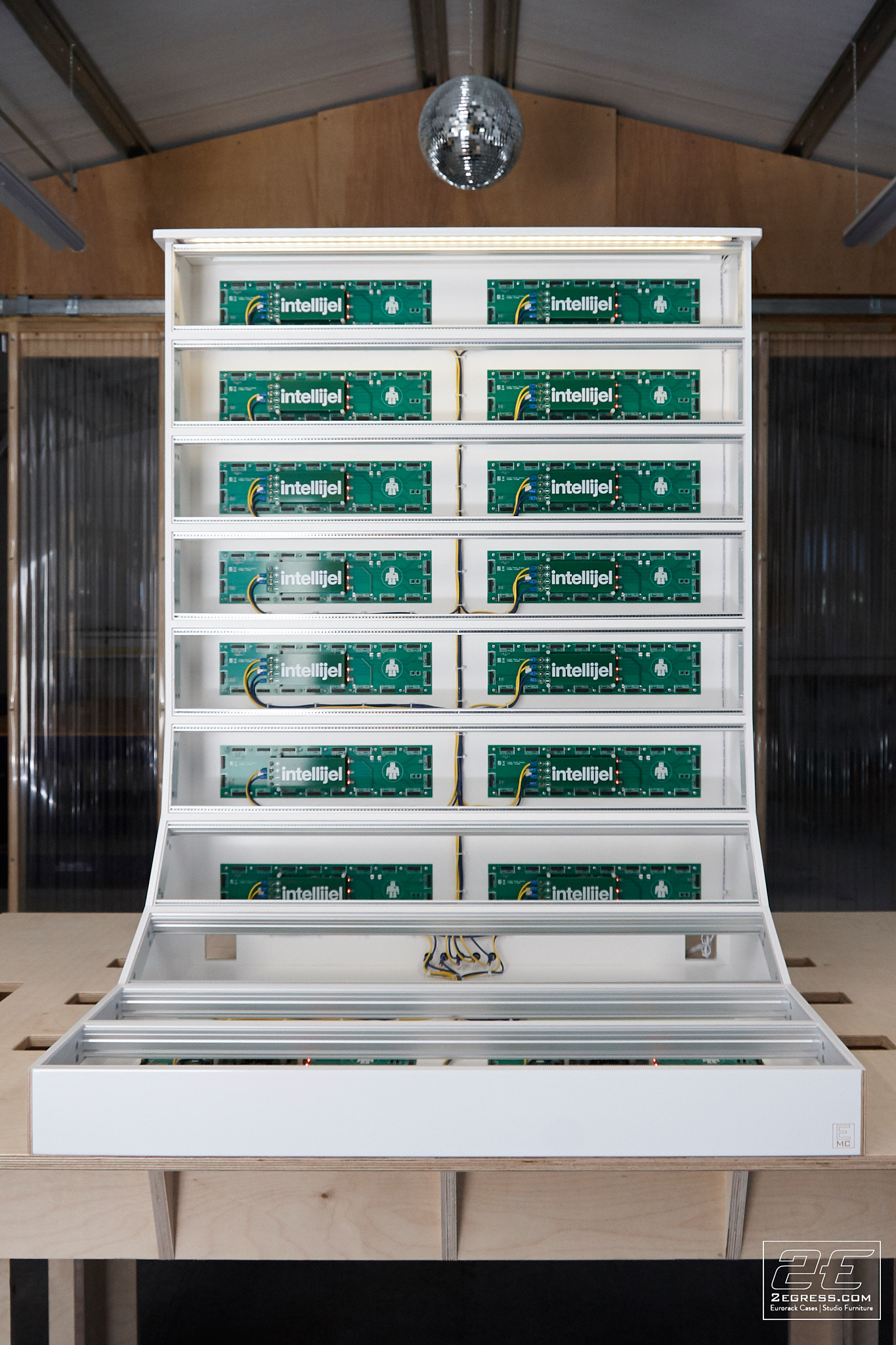

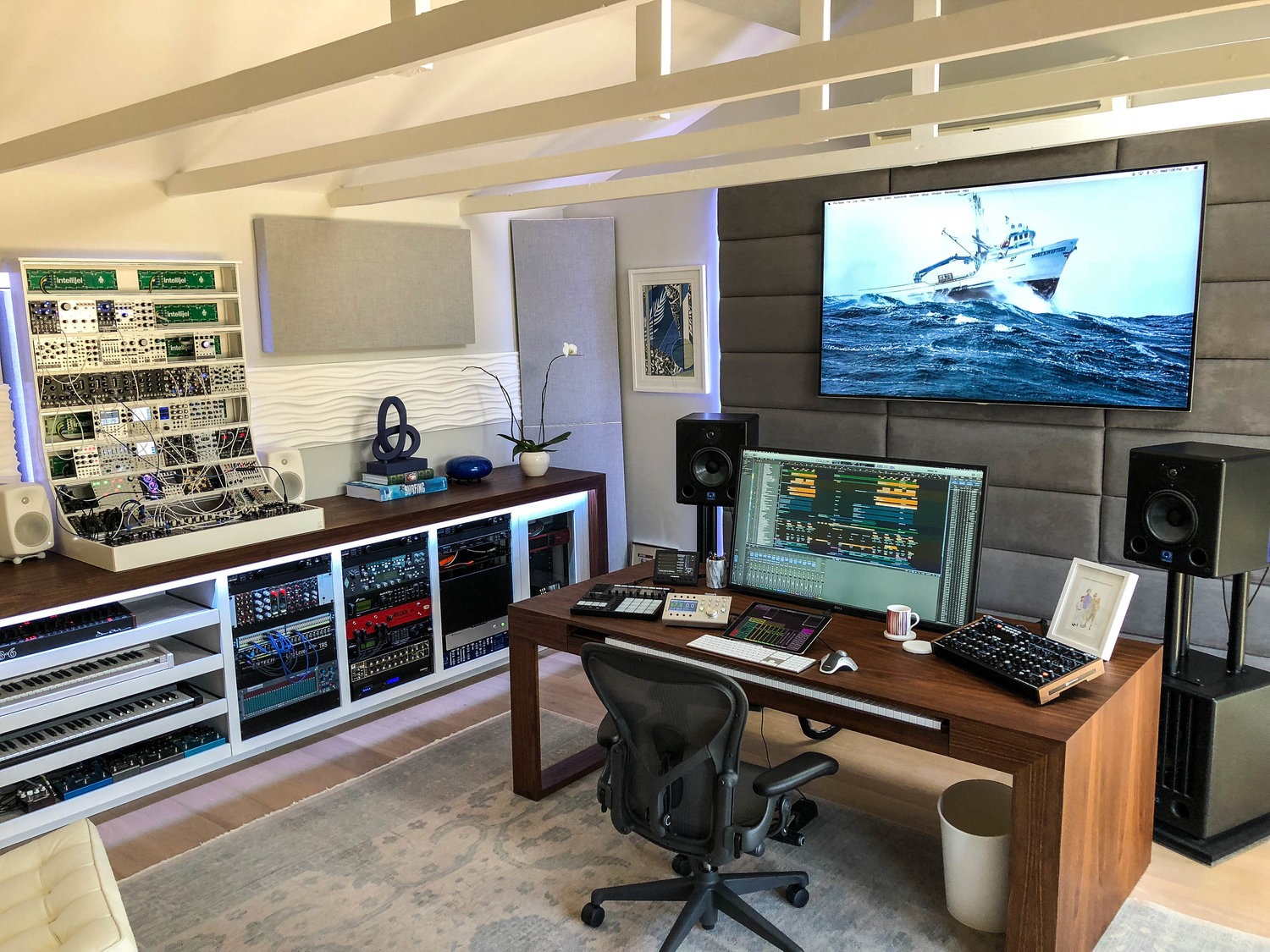

The magnificent 30U La Baronesse!
Regal. Stately and Elegant.
“If you are seeking something truly special and appreciate the fine feel of uncompromising quality and demanding detail, I encourge you to trust Brock.” Didier Lean Rachou
Width size (in):
168HP
Single* (36.75L X 26W X 45H)
*LTL freight only.
Depths top to bottom (mm):
110, 110, 110, 110, 110, 113, 170, 83, 72, 72
Request a custom order and have something made just for you.

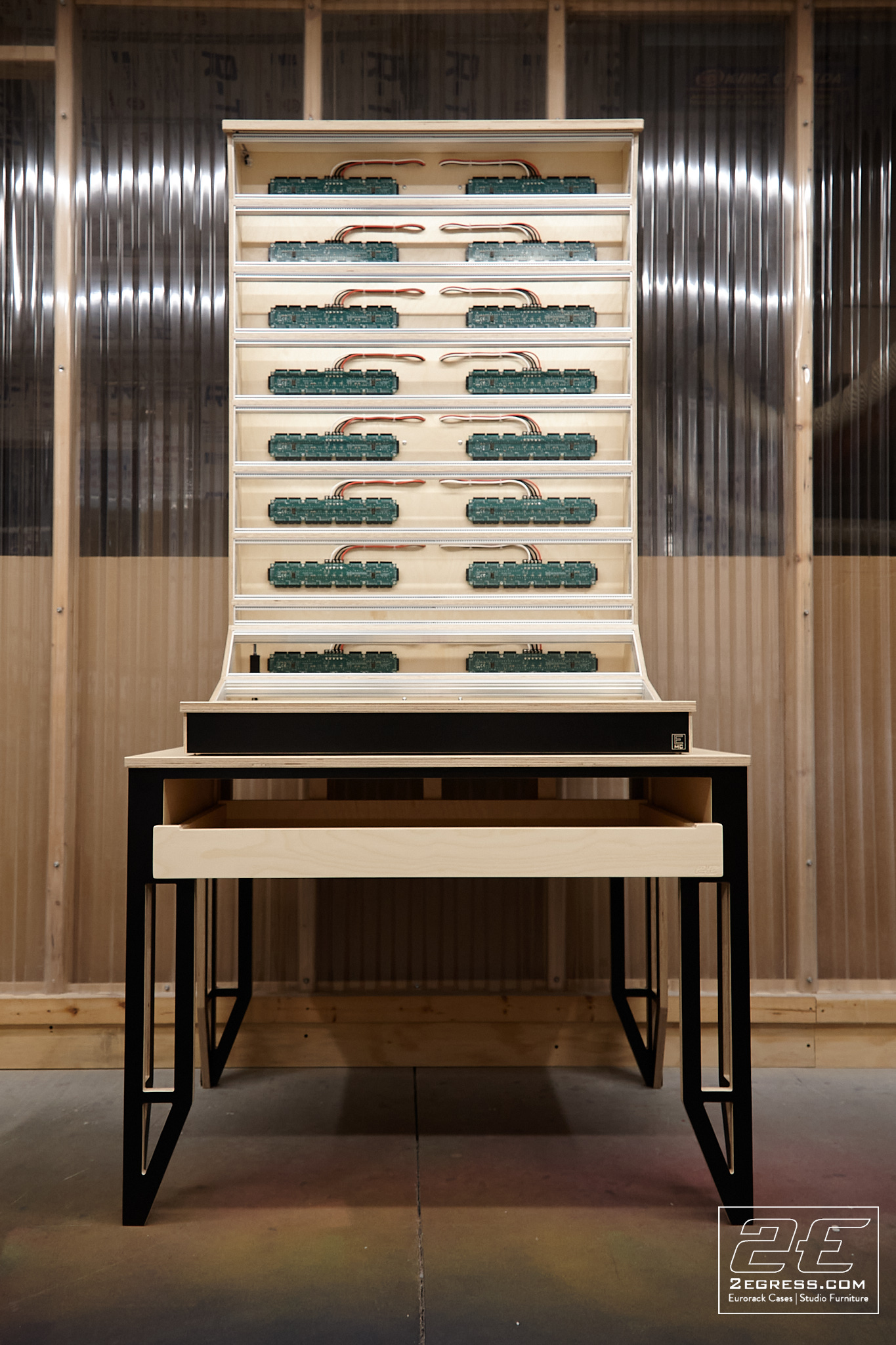

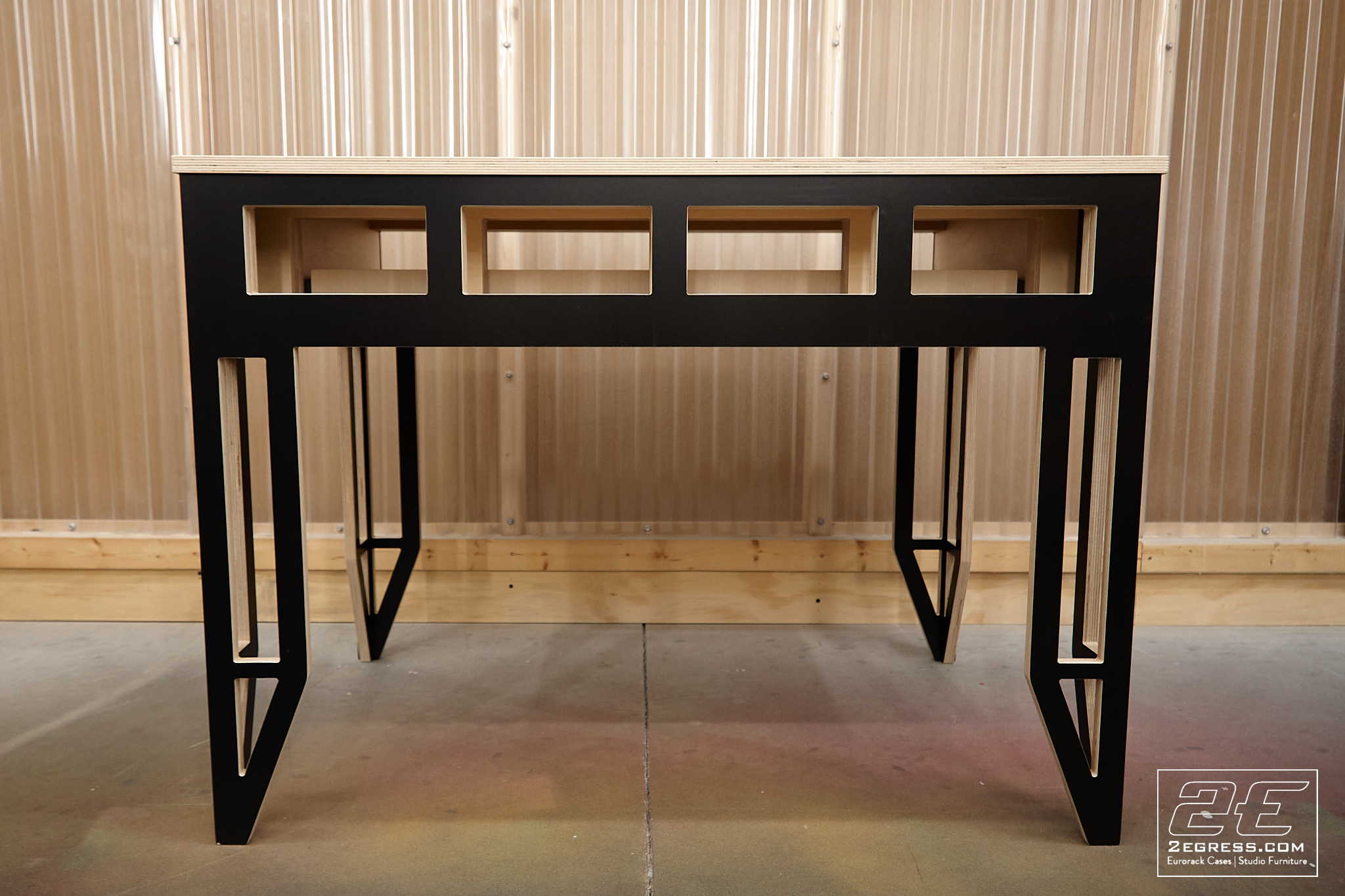

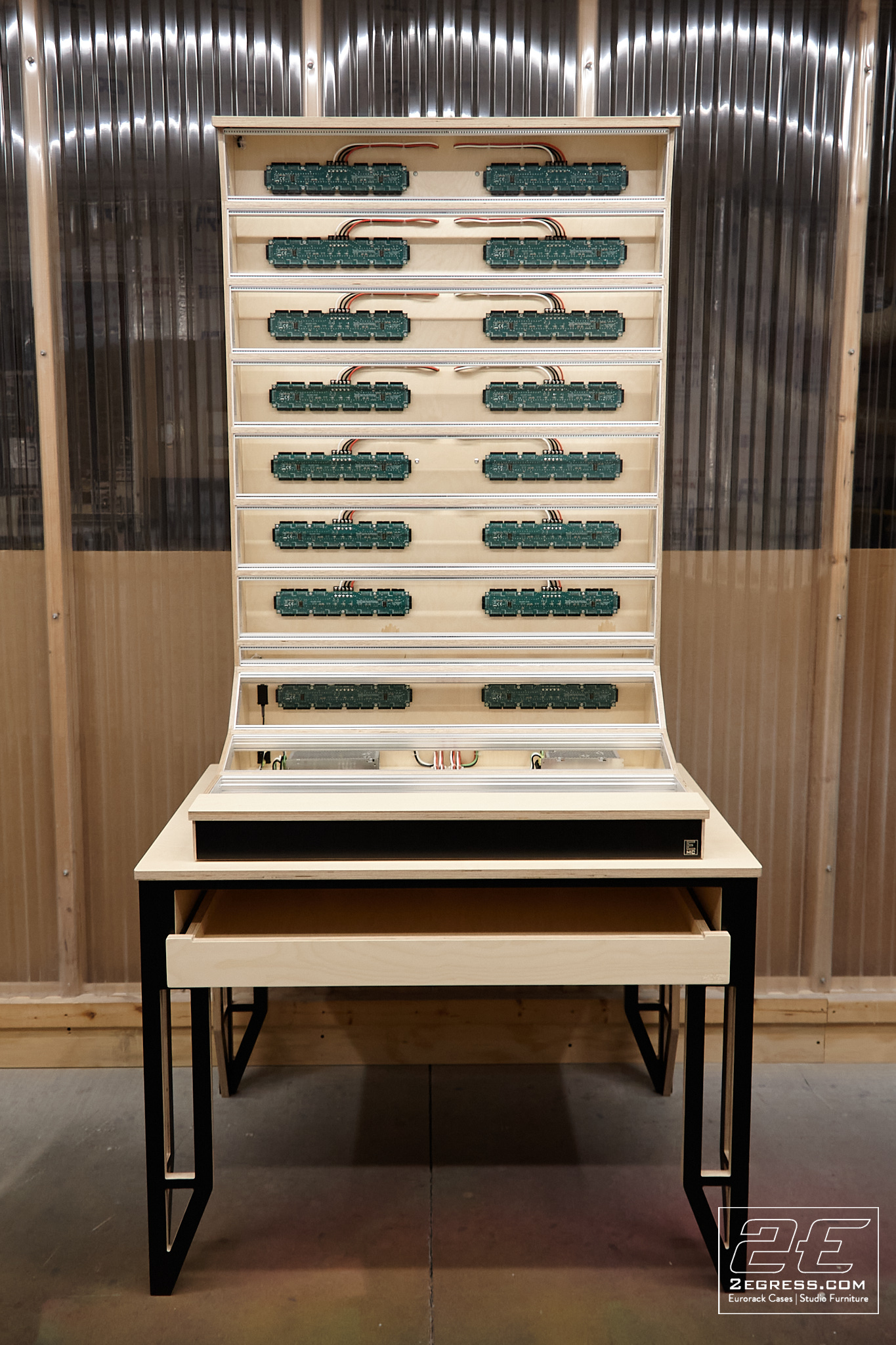

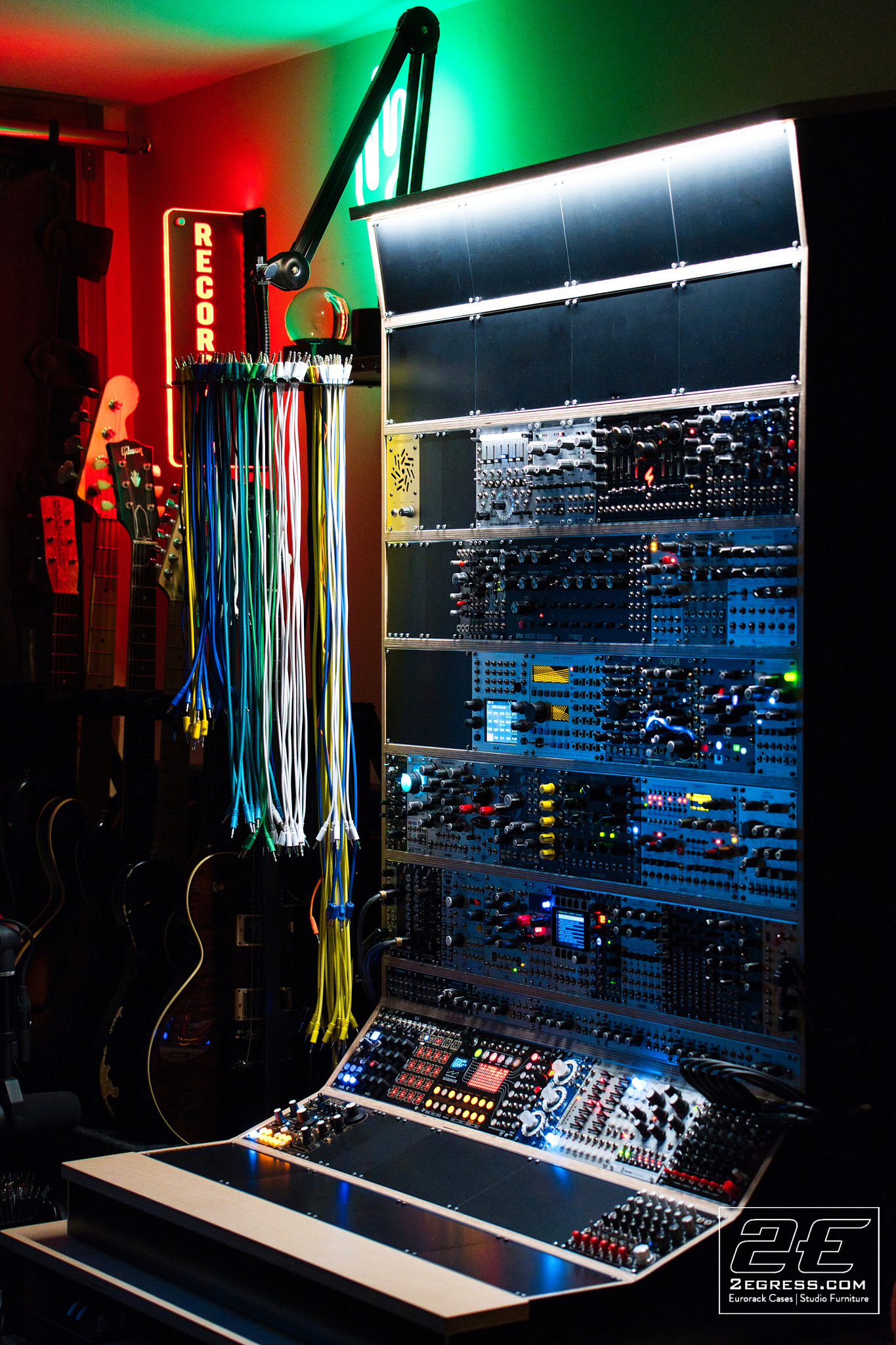

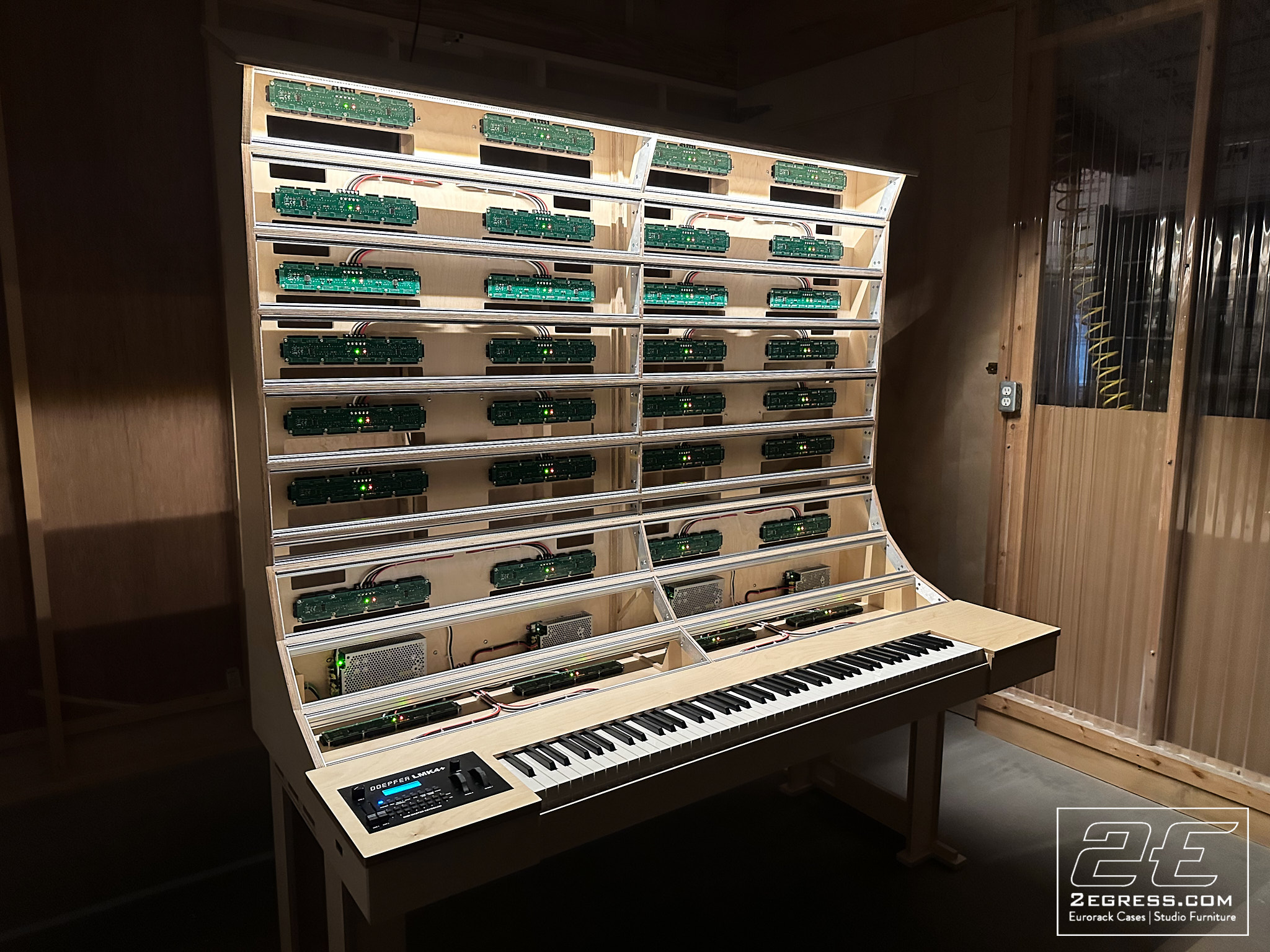

This is a well-engineered piece of custom furniture built down to detail.
Exquisitely crafted and has an ergonomic feel. Our first keyboard tray with soft close drawer slides.
"I can explore creative possibilities that the tedium of my previous setup
would not have allowed, as well as just feel like the space I’m working in
is finally complete.”
Nate Lueck
Width size (in):
168HP
Single* (35.3L X 26W X 54H)
*LTL freight only.
Depths top to bottom (mm):
181, 108, 108, 108, 108, 108,
108, 108, 146, 79, 72
Request a custom order and have something made just for you.

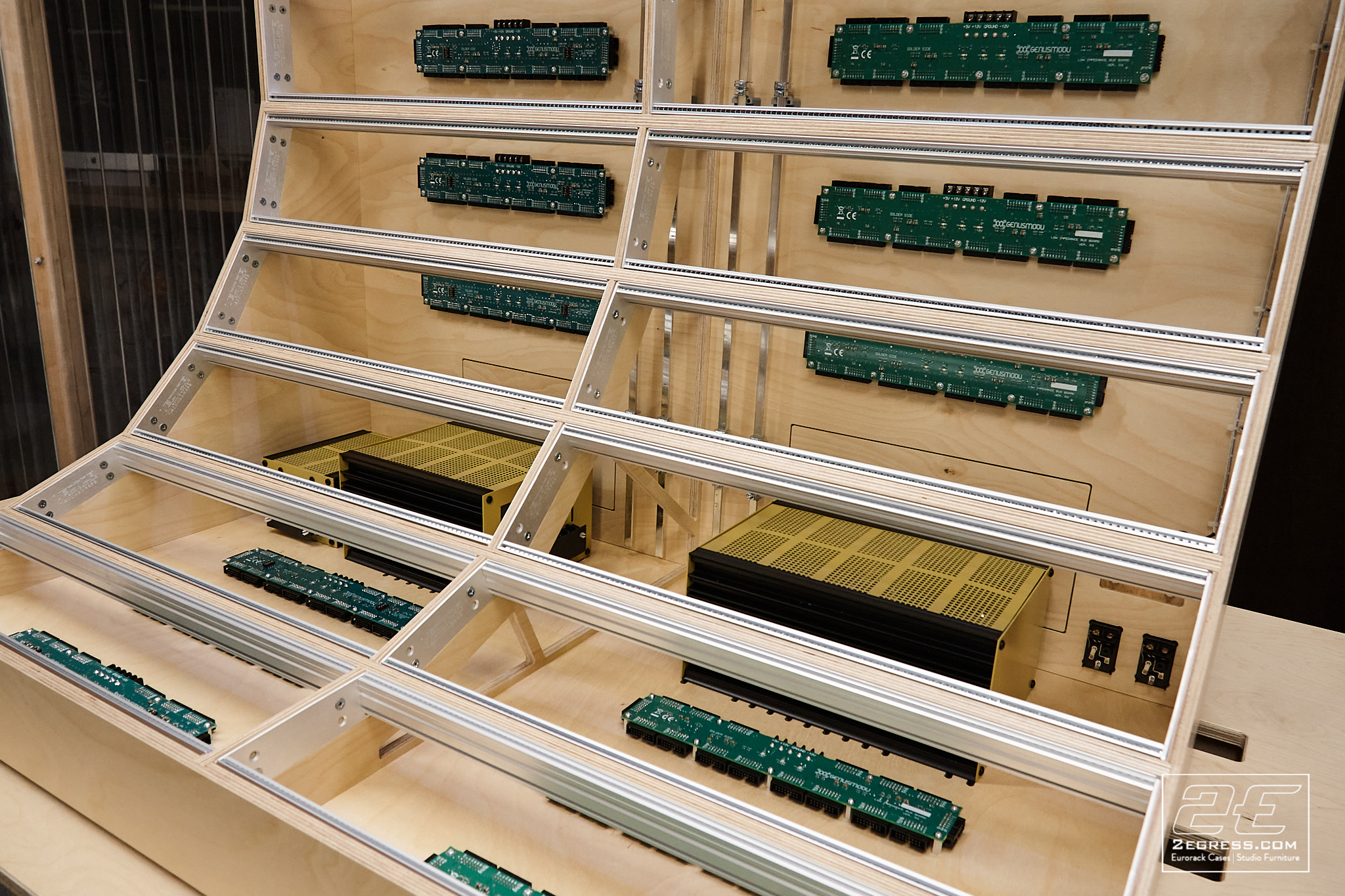

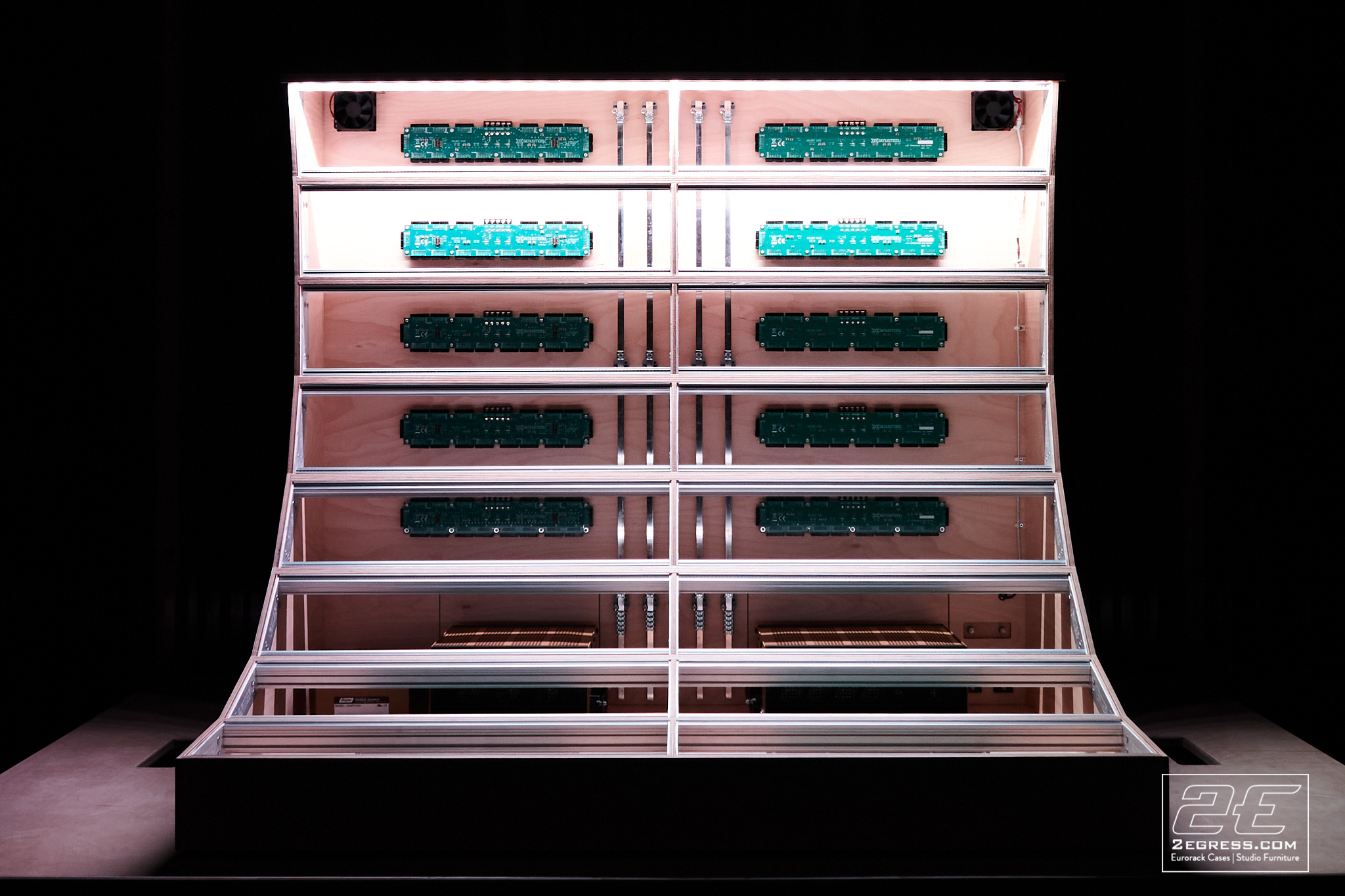

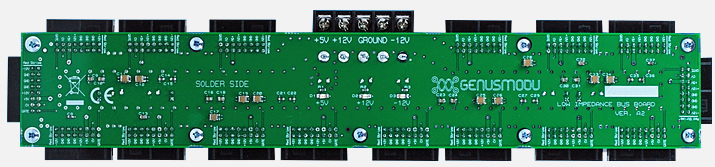

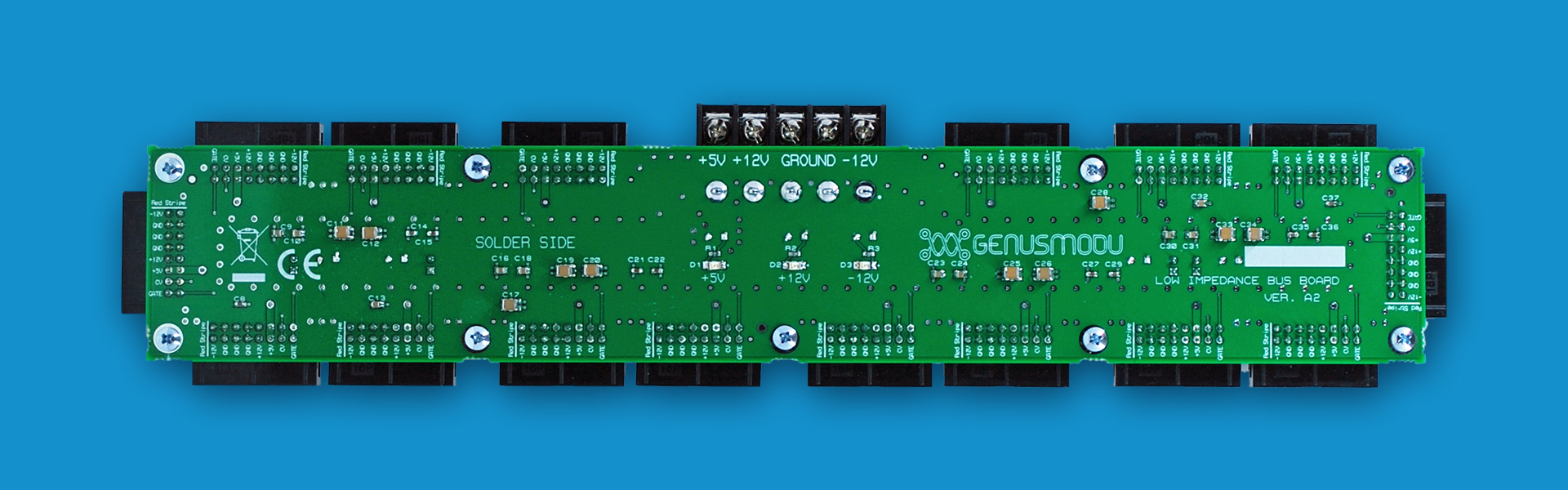

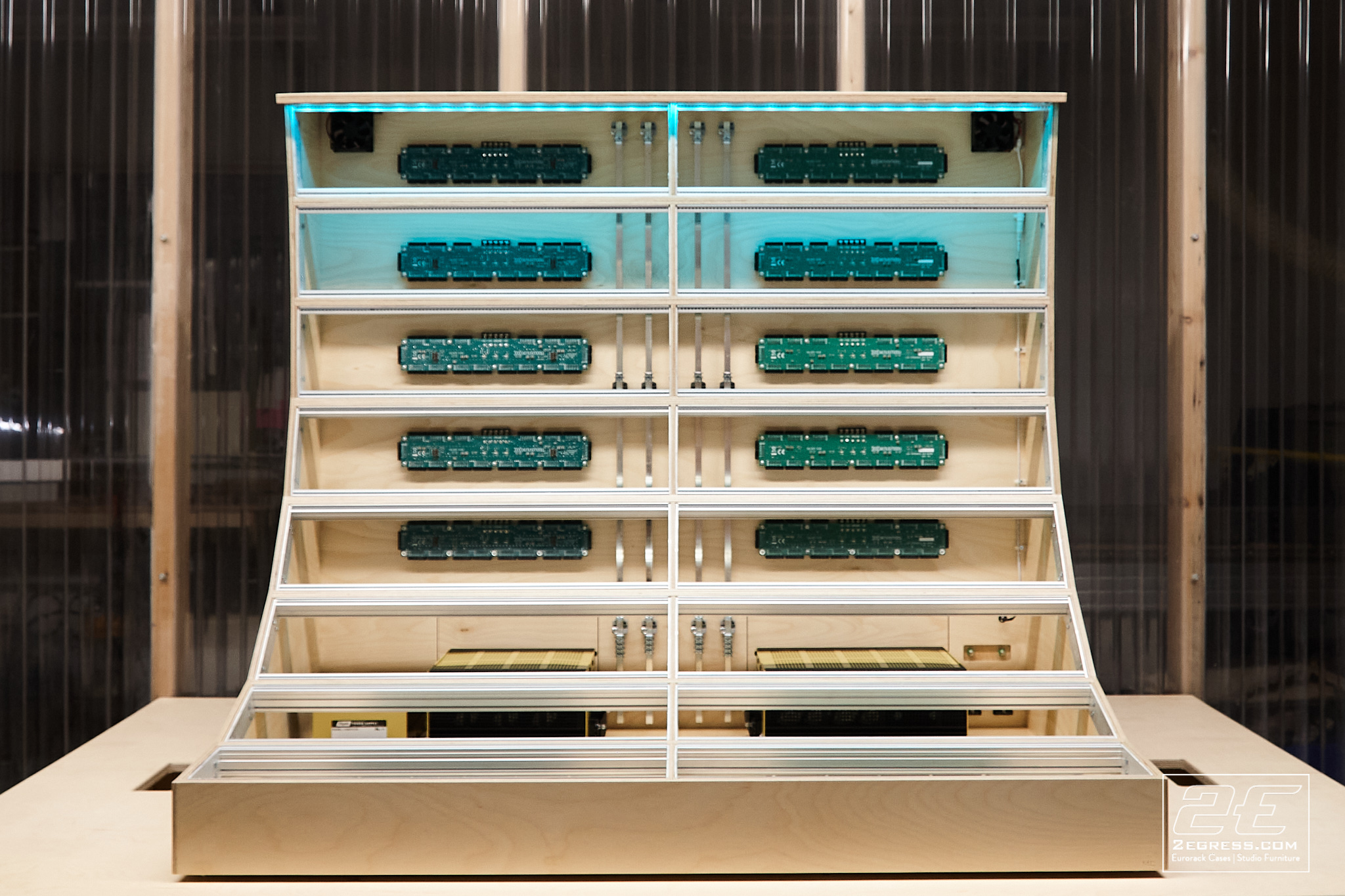

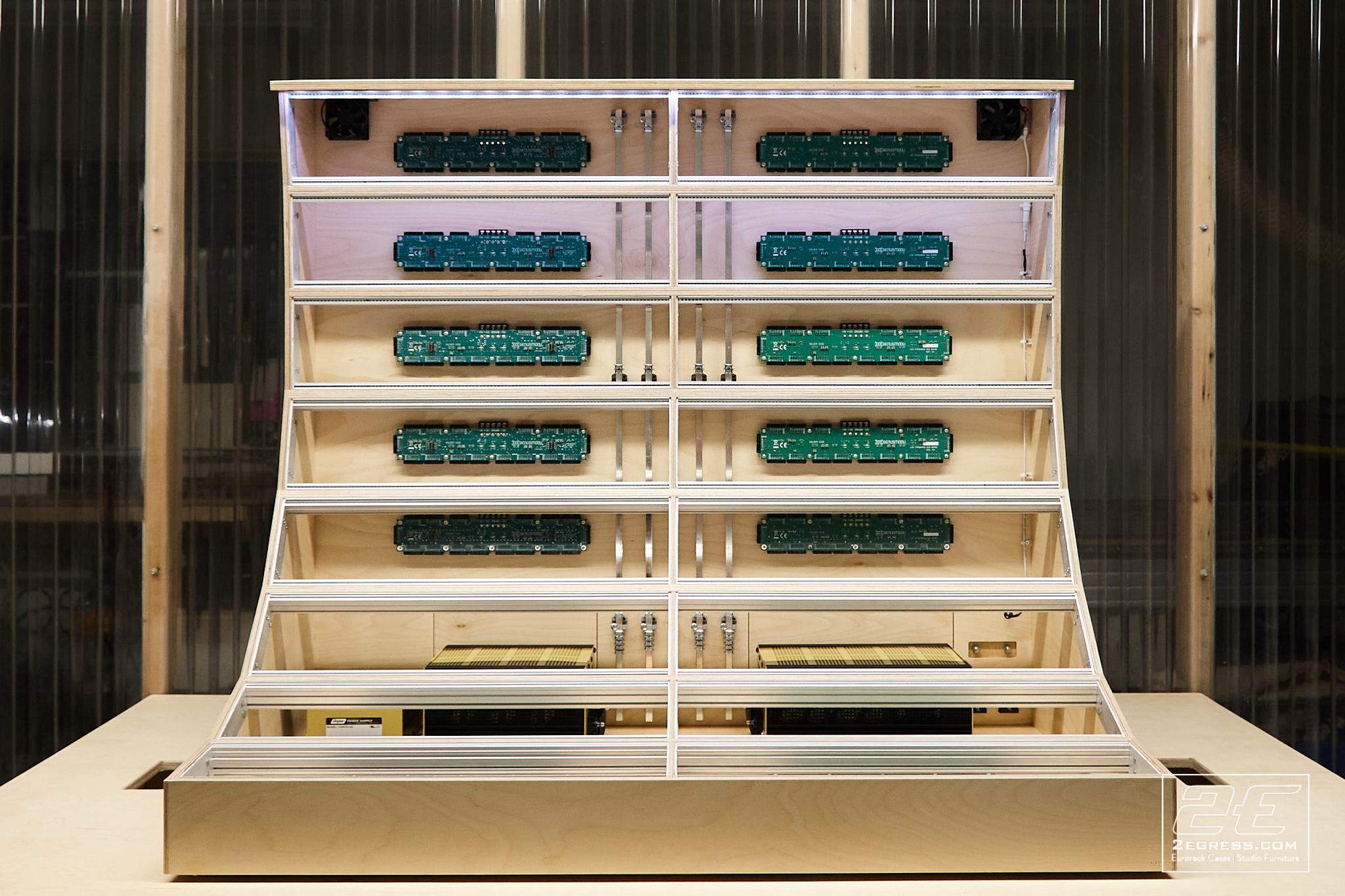

The Genus Modu Low Impedance Bus Board (LIBB) is designed to be the lowest noise eurorack passive bus board. It is based on concepts used in high power computer server products, providing ultra low impedance – both resistance and inductance – for the ground and main power rails and effective capacitance, resulting in significantly lower noise coupling across modules while also reducing power supply noise.
Ground plane resistance, board only, worst case: less than 400 microohm (0.400 milliohm)
+12V plane resistance, board only, worst case: less than 1.5 milliohm
-12V plane resistance, board only, worst case: less than 1.5 milliohm
+5V trace resistance, board only, worst case: less than 11 milliohm
+12V plane capacitance: 771 uF, options for 551 and 331 uF
-12V plane capacitance: 771 uF, options for 551 and 331 uF
+5V plane capacitance: 275 uF
CV trace isolation from Gate, board only: better than -100 dB
CV trace isolation from +5V Power, board only: less than 100 microvolts of noise on CV from 100 mV of noise on adjacent +5V power

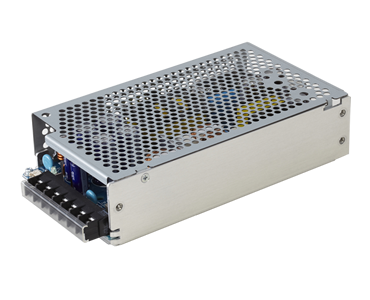

Daitron Incorporated is a premier manufacturer and distributor for low noise power supply solutions.
It’s state-of-the-art low noise power supply is ideal for systems that require low noise environments.
Low noise power supply solutions provide all the necessary power that is required for your application to perform to its manufactured capabilities, without the annoying and distracting elements usually associated with similar products.
Daitron’s ultra-low noise AC/DC power supply provides exceptional power supply switching capabilities. When compared to other types of larger more expensive linear power supply products, our AC DC power supply provides an Ultra Low Noise output that is quiet.
Some of the beneficial features that separate our ultra low noise AC/DC power supply products from the competitors include:
+ Ultra Low Ripple & Noise
+ Low Leakage Current
+ Small & Lightweight
+ Cost Efficiency
+ High Efficiency
+ RoHS Free, Vinyl Chloride Free, Halogen Free
+ Meet Safety Standards (UL, CSA, EN, PSE)
Frequently Asked Questions
For a personal design consultation or to place an order. Contact us here.
(Please check your spam folder if you have not received a reply from us after 48 hours.)
All sales are final. Products are made to order, one-of-a-kind.
We do not accept refunds, returns or exchanges.
We use premium Baltic birch ply sourced from around the Baltic states.
The layers of 1.5mm thick solid birch veneer offers exceptional durability, rigidity and stability.
We use a pre-catalyzed lacquer, low VOC, water borne clear coating for surfaces.
Our aluminum extruded rails are custom manufactured to highest standard in the United States by Vector Electronics and Technology INC an ISO9001 and AS9100C registered company.
Made from lead free 6061-T6 aluminum that is heat-treated for hardness and clear chem filmed to MIL-C-5541 to resist oxidation. Their aerospace quality makes them the finest rails in the Eurorack industry and the Rolls Royce of rails.
Why not use cheaper Chinese rail?
Other case manufacturers use much cheaper lower quality rail made in China that is not heat treated or chem filmed thus reducing their hardness, rigidity and resistance to oxidation.
We have chosen to supply the finest rails and yes we would save considerable money using Chinese rails but want you our client to have the best.
To the edge of the case installation
Our in house designed system of installation allows “to the edge” installation of your modules with no display of the rails “cheeks” and a much cleaner appearance.
Nut strips or sliding nuts?
We only supply our cases with the true Eurorack standard of threaded nut strips along with plenty of screws so you can install your modules right away! Sliding nut strips are a cheap inferior solution.
Eurorack rails are measured by their length in HP (horizontal pitch). We offer 104HP and 168HP.
Yes. We do offer Eurorack 1U rail sets. (Intellijel 1U format)
We developed a proprietary system of installation that ensures durability from repeated plugging and unplugging of modules. By milling the back side of the bus boards location on the back and floor plane of the case to facilitate their installation flat against it doing away with the nylon offsets that are required generally due to the solder connections. It creates a really clean looking install and we are the only builder in the world that offers this superior install method.
We recommend Genus Modu Low Impedance Bus Board (LIBB) and Daitron Low Noise AC/DC Power Supplies.
Every item is made to order. Expect each piece of art to be 4 - 12 weeks, depending on shop load.
We accept major credit card payments via Square and PayPal in US dollars.
A non-refundable deposit is required for custom design. Full payment is due upon approval of design and all standard orders.
We ship via USPS, FedEx or with LTL freight carriers.
Packing expenses, transportation charges and insurance cost not included.
All our items are assembled or very close to it for structural needs.This guarantees that your product will be of highest strength and quality.
We ship worldwide from the United States.
Please note: Import duties, taxes and charges are not included in the item price or shipping cost. These charges are the buyer’s responsibility.
Drop us an email here.
(Please check your spam folder if you have not received a reply from us after 48 hours.)
Established in the Year 2010.
Made in U.S.A.
